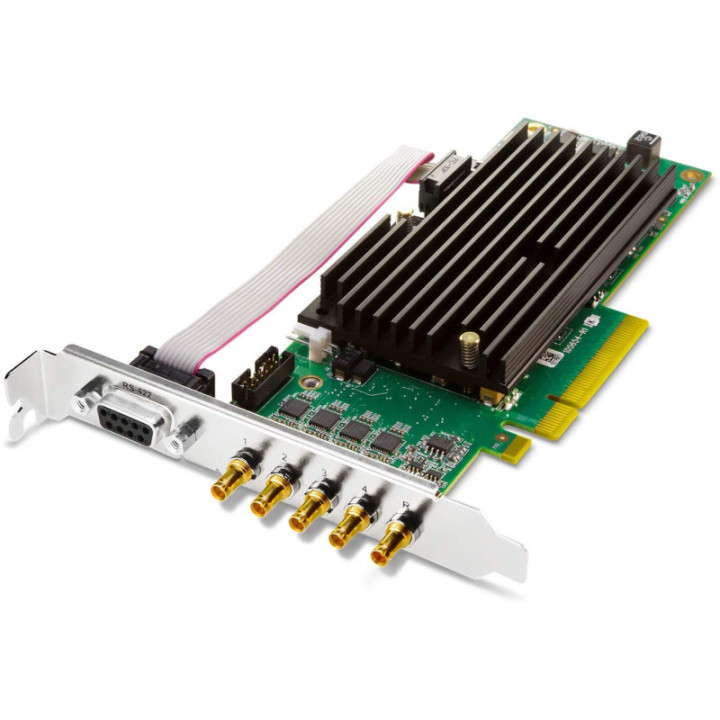

AJA - Standard height PCIe bracket and passive heat sink

AJA CRV44-T-NCF - Standard height PCIe bracket and passive heat sink

1018477
0812321031560
AJA CRV44-T-NCF - Standard height PCIe bracket and passive heat sink
AJA CRV44-T-NCF - Standard height PCIe bracket and passive heat sink
Standard height PCIe bracket and passive heat sink, no cables included
... learn more
Visuals Price
2,107.34 CHF VAT excl.

2,278.03 CHF Inc. VAT

Manufacturer price 2 218,25 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

AJA standard height PCIe bracket and passive heat sink
The AJA Video Systems CRV44-T-NCF is a fanless, cableless full-height PCIe bracket that allows the user to configure all 4 SDI connections. With AJA's Corvid 44 multi-format input/output PCIe card range, you can increase your video and audio input/output capacity. With AJA's Corvid 44 PCIe cards, you can individually configure each SDI connection as input or output and mix formats up to four HD or SD channels on a single card. As demand for higher resolutions increases, combine SDI connections into a single 4K/UltraHD channel, offering incredible flexibility and future-proofing.
Other notable highlights of the Corvid 44 architecture:
- Multi-stream, multi-format PCIe I/O card: The Corvid 44 enables AJA developer partner applications to access up to four simultaneous input and output streams on a single PCIe card, making it perfect for a wide variety of medium-density applications.
- Flexible multi-format I/O: Each BNC connection on the Corvid 44 can be programmed as input or output and each can support a different video format, provided all formats use the same clock synchronisation. Connections can also be linked to support dual-link or 4K/UltraHD formats.
- High frame rate support: The Corvid 44 supports 4K (4096 x 2160) and UltraHD (3840 x 2160) high frame rate (HFR) workflows. Working at frame rates of 48p, 50p and 60p ensures smooth motion for the most demanding 4K and UltraHD applications. High frame rates are not limited to 4K and UltraHD with the Corvid 44, multiple HD 720p and 1080p inputs and outputs are also supported up to 50p and 60p, making the Corvid 44 extremely flexible for your current and future needs.




Specifications



Video formats

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(HD) 1080i 25, 29.97, 30
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
(HD) 720p 50, 50.94, 60
(SD) 625i 25
(SD) 525i 29.97

Digital video input

Four 3G-SDI BNC

Digital video output

Four 3G-SDI BNC

Digital audio input

16-channel 24-bit embedded SDI, 48 kHz synchronous

Digital audio output

16-channel 24-bit embedded SDI, 48 kHz synchronous

Dimensions (w x d x h)

875" x 7.25" x 4.875" (22.23 mm × 184.15 mm × 123.83 mm)

Weight

0.4 lb (0.2 kg)

Power

17 watts typical, 19 watts maximum

Environment

Safe operating temperature: 32° to 104°F (0° to 40°C)
Safe storage temperature (powered off): -40° to 140°F (-40° to 60°C)
Operating relative humidity: 10-90% non-condensing
Operating altitude: < 3,000 metres (< 10,000 feet)



Standard height PCIe bracket and passive heat sink, no cables included
