AJA low-profile PCIe bracket and passive heatsink

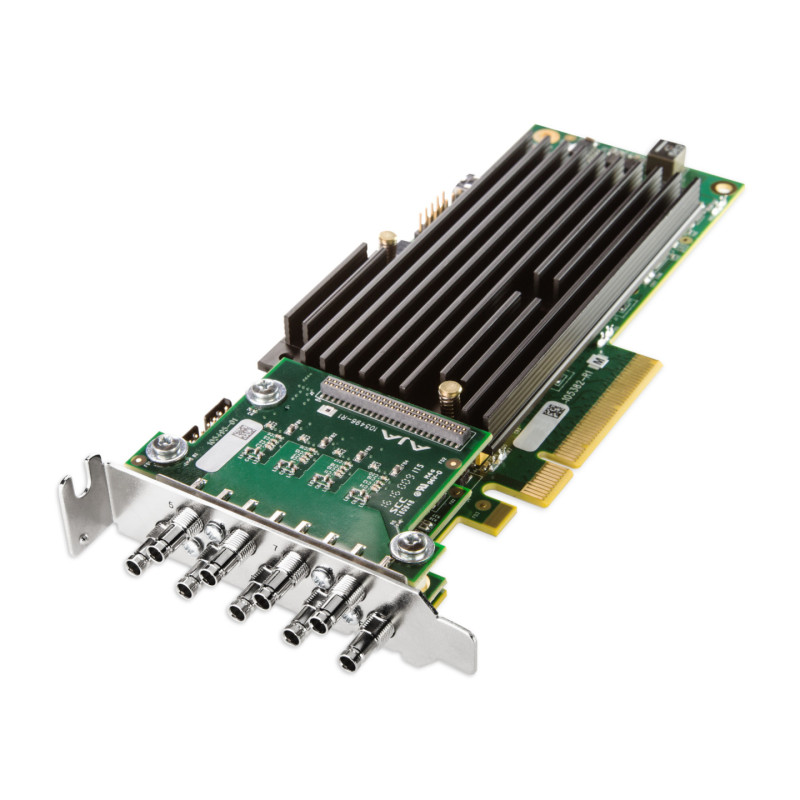

The AJA Video Systems CRV88-9-S-NF is a low-profile PCIe bracket without a fan with 2 adapter cables (5x 101999-02 1.0/2.3 to BNC) which allows the user to individually configure each SDI connection as an input or output and to mix formats up to eight HD or SD channels on a single card. As demand increases for higher resolutions, combine the SDI connections into a single 4K/UHD channel, offering incredible flexibility and future-proofing with broadcast and acquisition servers or channel-in-a-box systems.
Additional highlights of the Corvid 88 series include:
- Multi-stream, Multi-format PCIe I/O Card: The Corvid 88 allows AJA Developer Partner applications to access up to eight simultaneous input and output streams on a single PCIe card, making it perfect for acquisition and broadcast servers as well as channel-in-a-box systems.

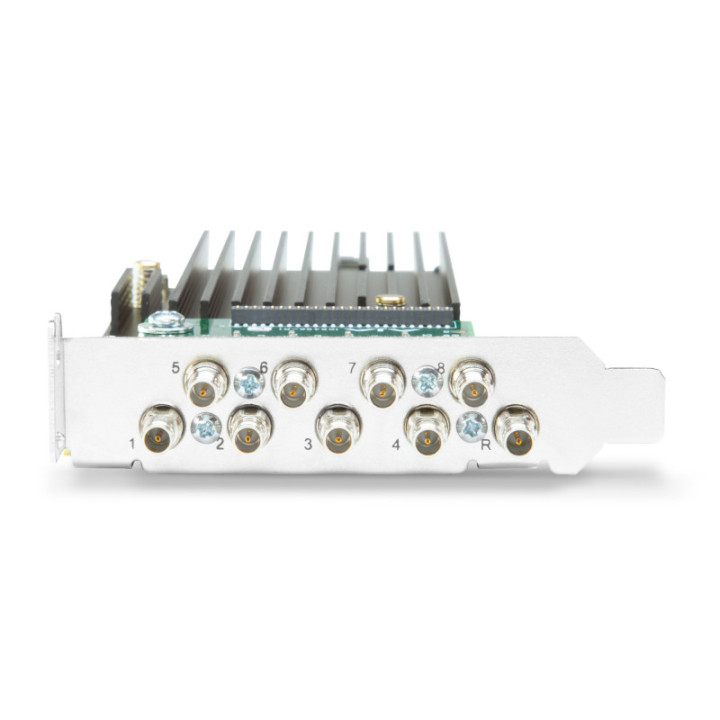

- High-Density Capture and Output: Each BNC connection on the Corvid 88 can be programmatically configured as an input or output and each can support a different video format, provided all formats use the same clock synchronisation. Connections can also be linked to support dual-link or 4K/UltraHD formats.
- High Frame Rate Support: The Corvid 88 supports high frame rate (HFR) 4K (4096 x 2160) and UltraHD (3840 x 2160) workflows. Working at frame rates of 48p, 50p and 60p ensures smooth motion for the most demanding 4K and UltraHD applications. High frame rates are not limited to 4K and UltraHD with the Corvid 88, multiple HD 720p and 1080p inputs and outputs are also supported at frame rates up to 50p and 60p, making the Corvid 88 extremely flexible for your current and future needs.
- LTC and Reference Input: The Corvid 88 provides a switchable external LTC/Reference input connection on the rear of the card. A second LTC input is available on an internal connector to provide additional reference to the Corvid 88.
- RS-422: An integrated RS-422 connection is available either as an external connection on the full-size Corvid 88 or as an internal connection on the low-profile Corvid 88. RS-422 enables control of external devices for precise frame-by-frame acquisition and transfers.




Specifications



Video Formats

4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(HD) 1080i 25, 29.97, 30
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
(HD) 720p 50, 50.94, 60
(SD) 625i 25
(SD) 525i 29.97

Digital Video Input

Eight BNC 3G-SDI

Digital Video Output

Eight BNC 3G-SDI

Digital Audio Input

16-channel embedded SDI 24-bit, 48 kHz synchronous

Digital Audio Output

16-channel embedded SDI 24-bit, 48 kHz synchronous

Dimensions (W x D x H)

8.75" x 7.25" x 4.875" (22.23 mm × 184.15 mm × 123.83 mm)

Weight

0.4 lb (0.2 kg)

Power Supply

17 watts typical, 19 watts maximum

Environment

Safe Operating Temperature: 32° to 104 °F (0° to 40 °C)
Safe Storage Temperature (Powered Off): -40° to 140 °F (-40° to 60 °C)
Operating Relative Humidity: 10-90% non-condensing
