PCIe 2.0 8-Channel I/O, raster independent channels, 4K capable, tall (standard) PCIe bracket, includes 9x 101999-02 cables
... learn more
Visuals Price
3,271.56 CHF VAT excl.

3,536.56 CHF Inc. VAT

Manufacturer price 3 443,75 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

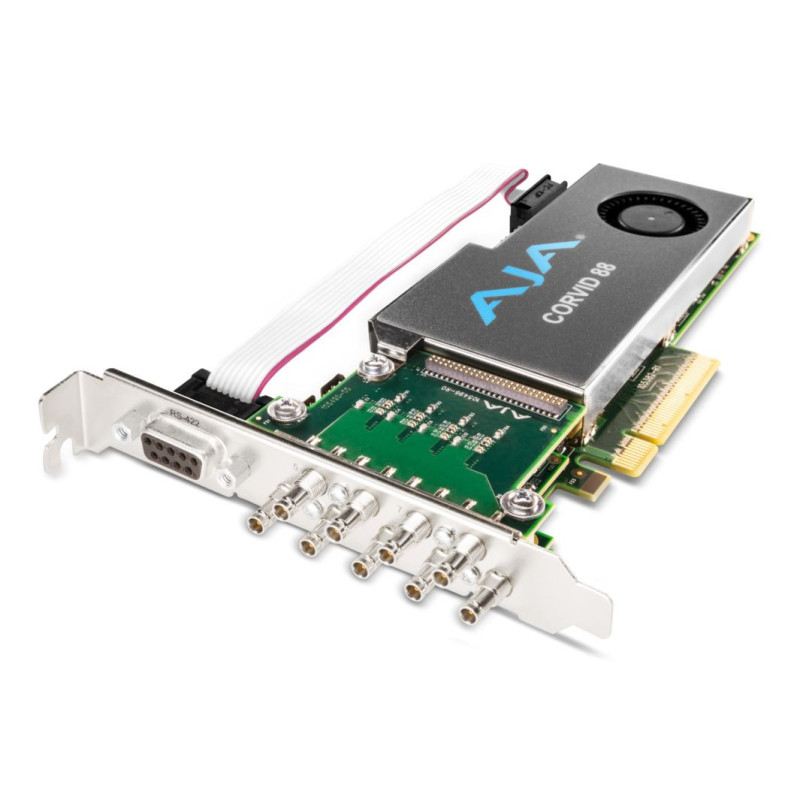

AJA PCIe 2.0 8-channel I/O with independent frame channels
Maximise your video and audio I/O capacity with the Corvid 88. Configure each SDI connection individually as input or output and mix formats for up to 8 HD or SD channels on a single card. With the growing demand for higher resolutions, combine SDI connections for multiple 4K/UHD channels enabling incredible flexibility and future-proofing with broadcast and capture servers or channel-in-a-box systems.
The Corvid 88 enables AJA developer partner applications to access up to eight simultaneous input and output streams on a single PCIe card, making it perfect for capture and playout servers as well as channel-in-a-box systems.
Each BNC connection on the Corvid 88 can be programmatically configured as input or output and each can support a different video format, provided that all formats use the same clock synchronisation. Connections can also be linked to support Dual Link or 4K/UHD formats.
The Corvid 88 supports 4K (4096 x 2160) and UltraHD (3840 x 2160) workflows at high frame rates (HFR). Working at frame rates of 48p, 50p and 60p ensures smooth motion for the most demanding 4K and UHD applications.
High frame rates are not limited to 4K and UHD with the Corvid 88, multiple HD 720p and 1080p inputs and outputs are also supported with frame rates up to 50p and 60p, making the Corvid 88 extremely flexible for your current and future needs.

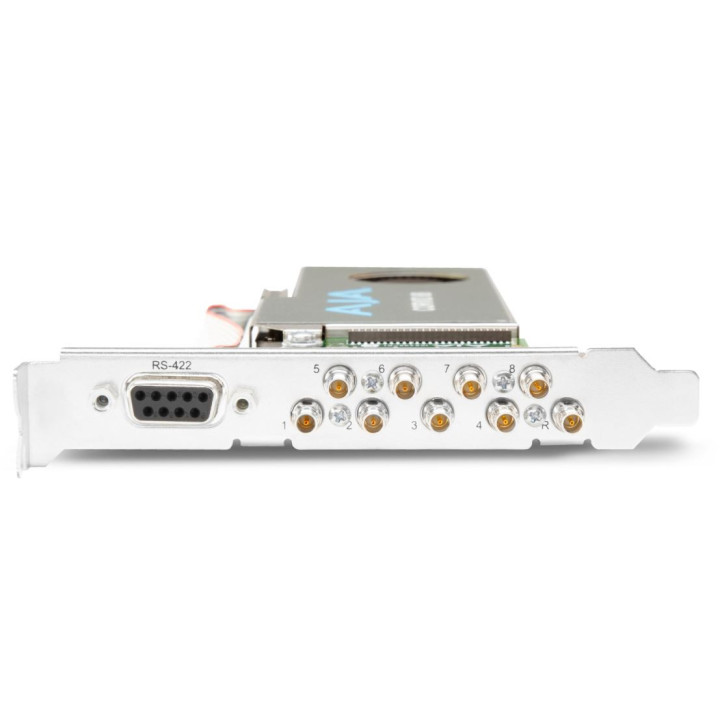

The Corvid 88 has a switchable LTC/External Reference connection on the back of the card. A second LTC input is available on an internal connector to provide an additional reference to the Corvid 88.
An integrated RS-422 connection is available either as an external connection on the full-height Corvid 88 or as an internal connection on the low-profile Corvid 88. RS-422 enables control of external devices for precise frame-by-frame capture and transfers.




Specifications



Video Formats

4K
3840 x 2160P 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
4096 x 2160P 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
2K
2048 x 1080P 23.98, 24, 25, 29.97, 30
2048 x 1080PsF 23.98, 24, 25, 29.97, 30
HD
720p 50, 50.94, 60
1080i 25, 29.97, 30
1080PsF 23.98, 24, 25, 29.97, 30
1080P 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
SD
525i 29.97
625i 25

Digital Video Output

BNC 3G-SDI

Digital Audio Input

16-channel 24-bit embedded SDI
48 kHz synchronous

Digital Audio Output

16-channel 24-bit embedded SDI
48 kHz synchronous

Dimensions

2.713" × 6.6" × 0.727" (68.90 mm × 167.65 mm × 18.47 mm)



PCIe 2.0 8-Channel I/O, raster independent channels, 4K capable, tall (standard) PCIe bracket, includes 9x 101999-02 cables
