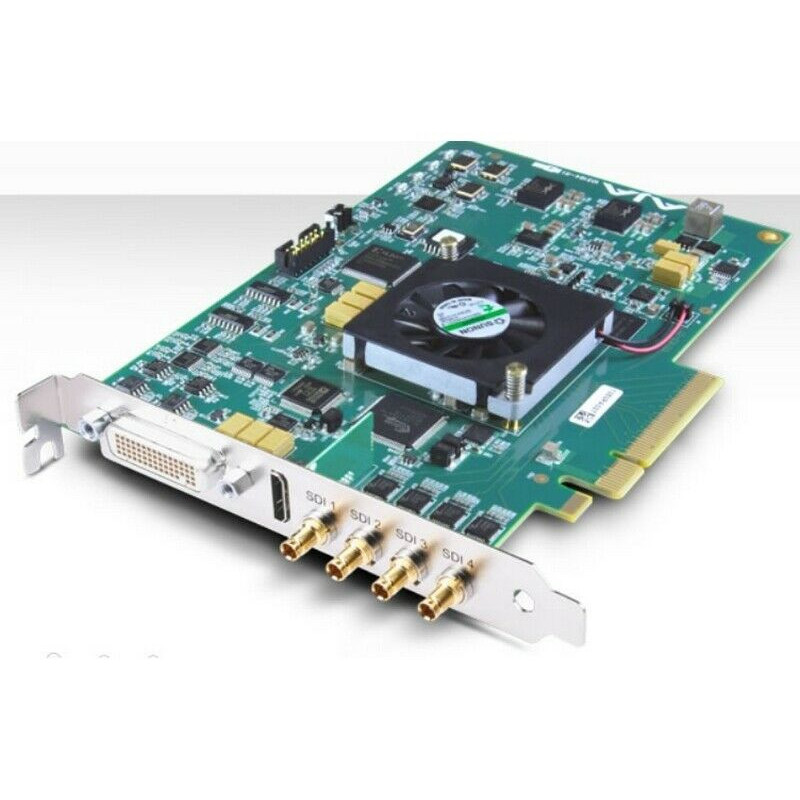

Technical Specifications
|
|
|
Digital Video Output
|
3G-SDI, SMPTE-259/292/296/424, 8-bit, 10-bit and 12-bit
Single link 4:2:2 or 4:4:4 (1 x BNC)
Dual link HD 4:4:4, (2 x BNC)
2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
4K/UltraHD 4:2:2 and 4:4:4 up to 50/60 fps
HDMI v2.0, 30/36 bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD and UHD with HFR support up to 50/60 fps 4:2:0
|
|
Digital Video Input
|
3G-SDI, SMPTE-259/292/296/424, 8-bit, 10-bit and 12-bit
Single link 4:2:2 or 4:4:4 (1 x BNC)
Dual link HD 4:4:4 (2 x BNC)
K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
4K/UltraHD 4:2:2 and 4:4:4 up to 50/60 fps
1D LUT support
|
|
Analogue Video Output
|
Composite/S-Video (Y/C) (1 x BNC/2x BNC+adapter)
NTSC, NTSCJ, PAL
Component (3 x BNC)
HD: YPbPr, RGB
SD: YPbPr, RGB (component mode)
SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
12-bit D/A, 8x oversampling
Y frequency response +/- 0.2 dB to 5.0 MHz
C frequency response +/- 0.2 dB to 1 MHz
2T pulse response 5%
Differential phase 1%
Differential gain 1%
Y/C delay inequality 1% ns
|
|
Downstream Keyer
|
Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte.
|
|
Digital Audio Input
|
Embedded SDI audio 16 channels, 24-bit, 48 kHz sampling frequency, Synchronous
AES/EBU audio 8 channels, 24-bit, 48 kHz sampling frequency, Synchronous or Non-synchronous,
Internal sampling frequency conversion (via 4 x BNC on breakout cable)
AES/EBU audio 16 channels, 24-bit, 48 kHz sampling frequency, Synchronous (via 8 x BNC on optional K3G-Box)
|
|
Digital Audio Output
|
Embedded SDI audio 16 channels, 24-bit, 48 kHz sampling frequency, Synchronous
Embedded HDMI audio 8 channels, 24-bit, 48 kHz sampling frequency, Synchronous
AES/EBU audio 8 channels, 24-bit, 48 kHz sampling frequency, Synchronous or Non-synchronous,
Internal sampling frequency conversion (via 4 x BNC on breakout cable)
AES/EBU audio 16 channels, 24-bit, 48 kHz sampling frequency, Synchronous (via 8 x BNC on optional K3G-Box)
|
|
SD to SD Format Conversion
|
Letterbox: Converts anamorphic SD content into a letterbox image.
H Crop: Produces a horizontal stretch effect on the image; converts anamorphic SD to full screen
SD Pillarbox: Produces an image in the centre of the screen with black borders on the left and right sides and an anamorphic image in the centre
V Crop: Converts letterbox SD content into an anamorphic image.
|
|
Timecode
|
LTC timecode input and output (via 1 x BNC each)
|
|
Reference Input
|
Analogue black (1V) or Composite sync (2 or 4V)
|
