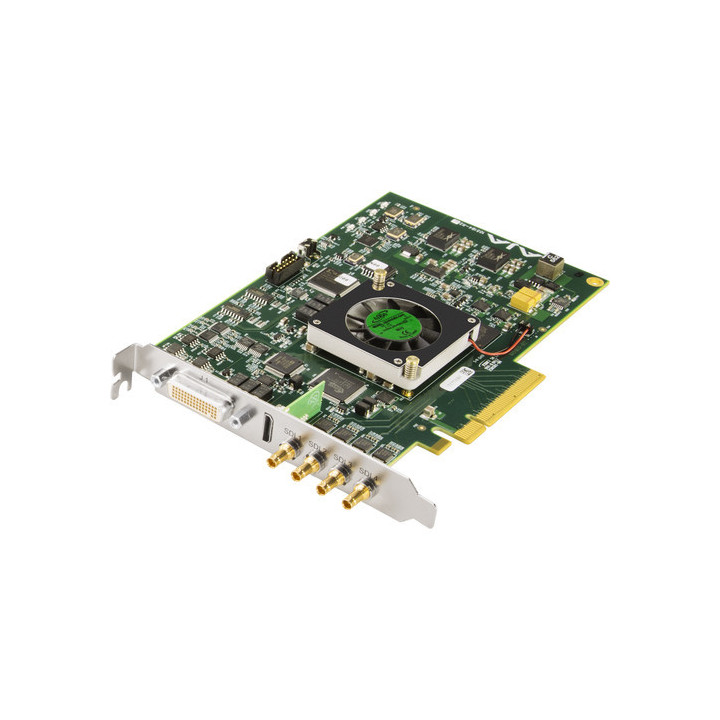

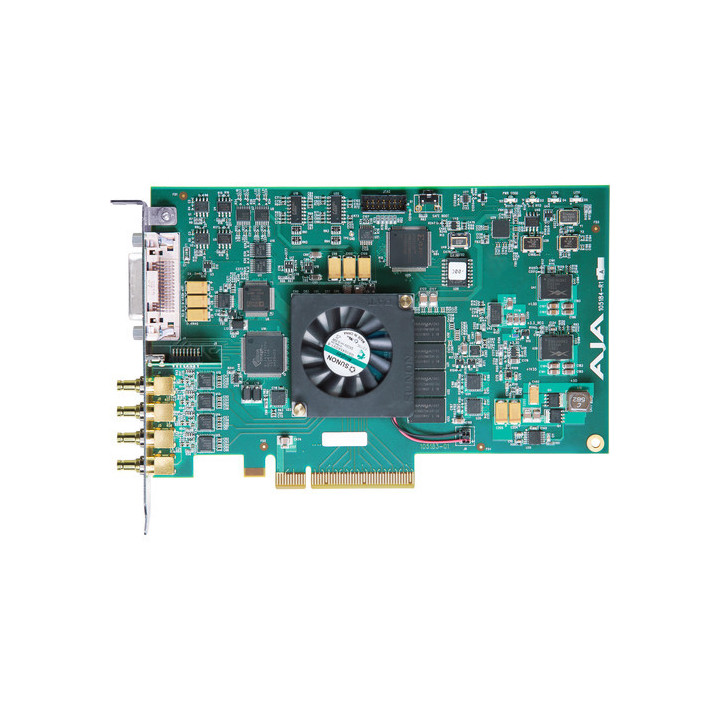

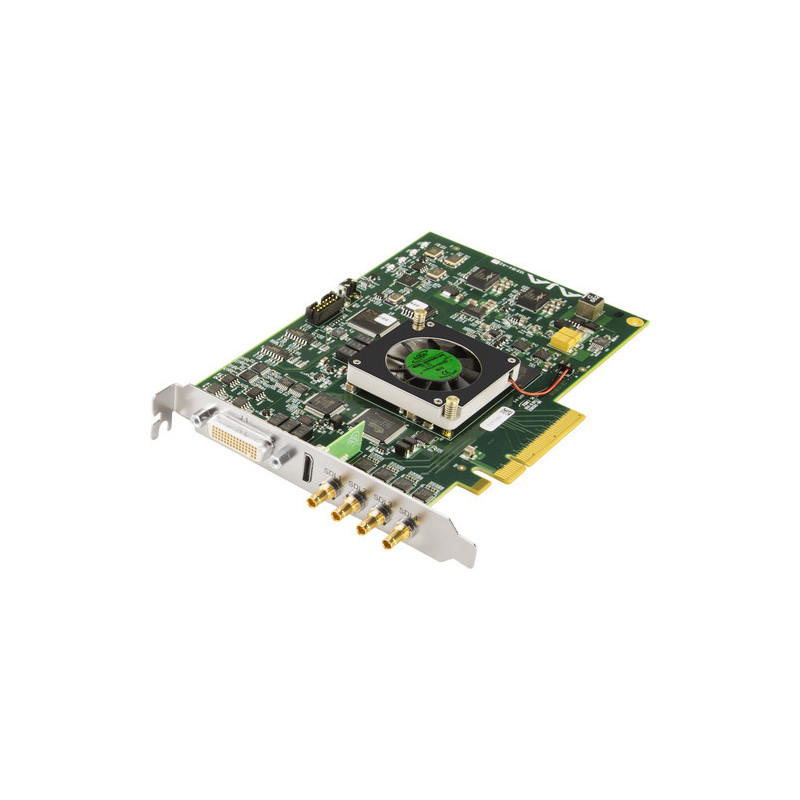

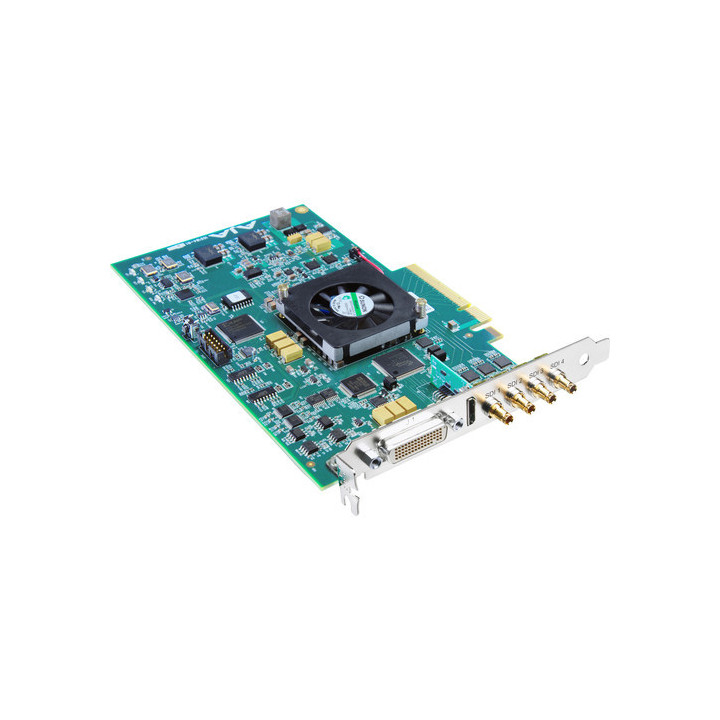

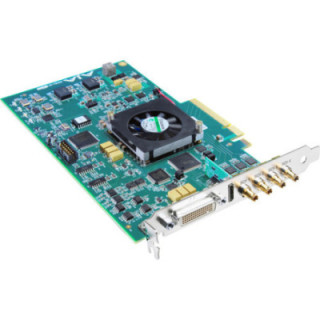

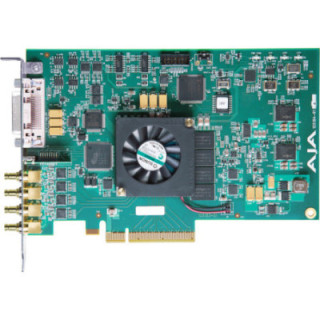

Specifications

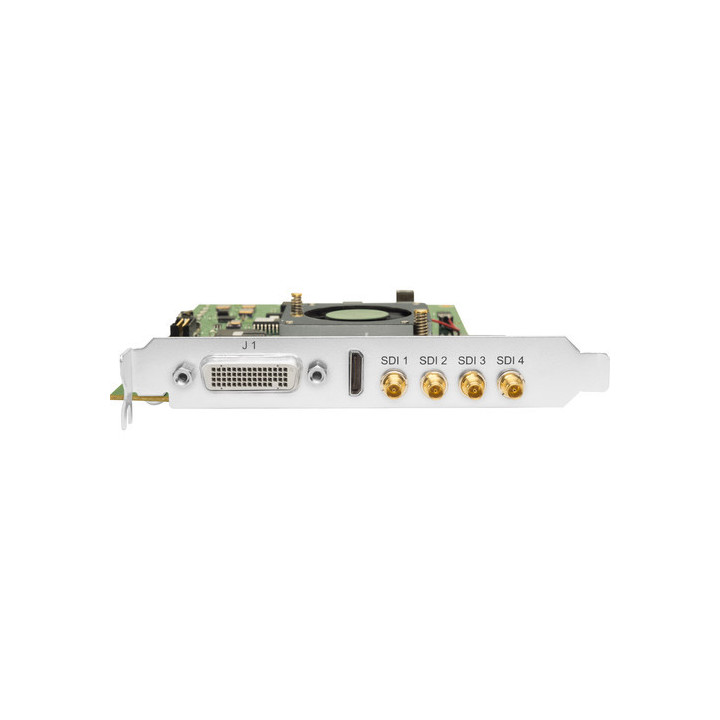

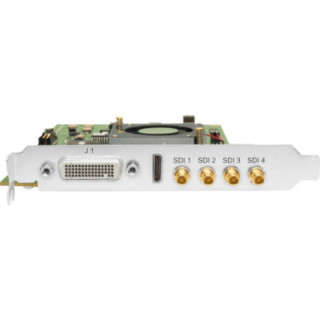

Digital video output

3G-SDI, SMPTE-259/292/296/424, 8-bit, 10-bit and 12-bit
Single Link 4:2:2 or 4:4:4 (1 x BNC)
Dual Link HD 4:4:4, (2 x BNC)
2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
4K/UltraHD 4:2:2 and 4:4:4 up to 50/60 fps
HDMI v2.0, 30/36 bits/pixel, RGB or YUV, 2.25 Gbit/s, SD, HD and UHD with HFR support up to 50/60 fps 4:2:0

Digital video input

3G-SDI, SMPTE-259/292/296/424, 8-bit, 10-bit and 12-bit*
Single Link 4:2:2 or 4:4:4 (1 x BNC)
Dual Link HD 4:4:4 (2 x BNC)
K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
4K/UltraHD 4:2:2 and 4:4:4 up to 50/60 fps
1D LUT support

Analogue video output

Composite/S-Video (Y/C) (1 x BNC/2x BNC+adapter)
NTSC, NTSCJ, PAL
Component (3 x BNC)
HD: YPbPr, RGB
SD: YPbPr, RGB (component mode)
SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
12-bit N/A, 8x oversampling
+/- 0.2 dB at 5.0 MHz Y frequency response
+/- 0.2 dB at 1 MHz C frequency response
5% 2T pulse response
1% differential phase
1% differential gain
1% ns Y/C delay inequality

Downstream keying

Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte.

Digital audio input

Embedded SDI audio 6 channels, 24-bit, 48 kHz sample rate, synchronous
AES/EBU audio 8 channels, 24-bit, 48 kHz sample rate, synchronous or non-synchronous,
Internal sample rate conversion (via 4 x BNC on breakout cable)
AES/EBU audio 16 channels, 24-bit, 48 kHz sample rate, synchronous (via 8 x BNC on optional K3G-Box)

Digital audio output

Embedded SDI audio 16 channels, 24-bit, 48 kHz sample rate, synchronous
Embedded HDMI audio 8 channels, 24-bit, 48 kHz sample rate, synchronous
AES/EBU audio 8 channels, 24-bit, 48 kHz sample rate, synchronous or non-synchronous,
Internal sample rate conversion (via 4 x BNC on breakout cable)
AES/EBU audio 16 channels, 24-bit, 48 kHz sample rate, synchronous (via 8 x BNC on optional K3G-Box)

SD to SD format conversion

Letterbox: converts anamorphic SD material to letterbox image.
H Crop: produces a horizontal stretch effect on the image; converts anamorphic SD to full screen
SD Pillarbox: produces a centred screen image with black borders on the
left and right sides with an anamorphic image in the centre
V Crop: converts letterbox SD material to anamorphic image.

Timecode

LTC timecode input and output (via 1 x BNC each)

Reference input

Analogue black (1V) or composite sync (2 or 4V)
