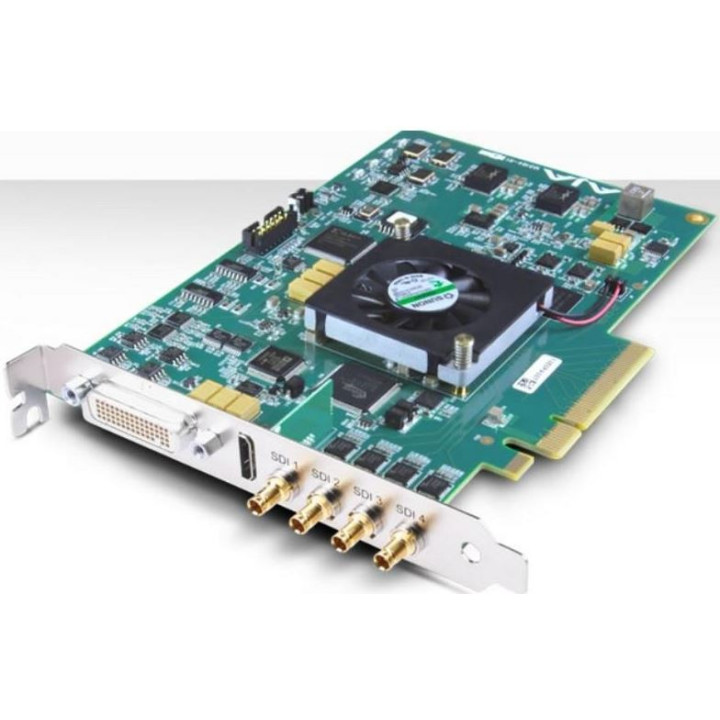

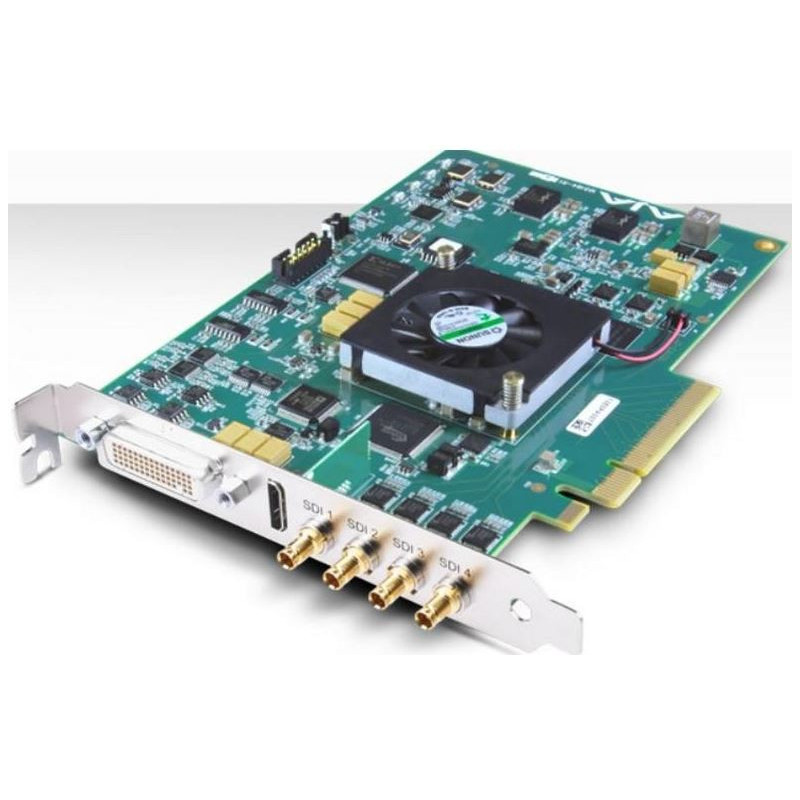

Specifications

Digital video output

3G-SDI, SMPTE-259/292/296/424, 8-bit, 10-bit and 12-bit
n Single link 4:2:2 or 4:4:4 (1 x BNC)
n Dual link HD 4:4:4, (2 x BNC)
n 2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
n 4K/UltraHD 4:2:2 and 4:4:4 up to 50/60 fps
n HDMI v2.0, 30/36 bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD and UHD with HFR support up to 50/60 fps 4:2:0

Digital video input

3G-SDI, SMPTE-259/292/296/424, 8-bit, 10-bit and 12-bit
n Single link 4:2:2 or 4:4:4 (1 x BNC)
n Dual link HD 4:4:4 (2 x BNC)
n 2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
n 4K/UltraHD 4:2:2 and 4:4:4 up to 50/60 fps
n 1D LUT support

Analogue video output

Composite/S-Video (Y/C) (1 x BNC/2x BNC+adapter)
n NTSC, NTSCJ, PAL
n Component (3 x BNC)
n HD: YPbPr, RGB
n SD: YPbPr, RGB (component mode)
n SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
n 12-bit D/A, 8x oversampling
n +/- 0.2 dB to 5.0 MHz Y frequency response
n +/- 0.2 dB to 1 MHz C frequency response
n 5% 2T pulse response
n 1% differential phase
n 1% differential gain
n 1% ns Y/C delay inequality

Downstream keyer

Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte.

Digital audio input


16-channel embedded SDI audio, 24-bit, 48 kHz sample rate, synchronous,
n 8-channel AES/EBU audio, 24-bit, 48 kHz sample rate, synchronous or non-synchronous,
n Internal sample rate conversion (via 4 x BNC on breakout cable)
n 16-channel AES/EBU audio, 24-bit, 48 kHz sample rate, synchronous (via 8 x BNC on optional K3G-Box)

Digital audio output

16-channel embedded SDI audio, 24-bit, 48 kHz sample rate, synchronous
n 8-channel embedded HDMI audio, 24-bit, 48 kHz sample rate, synchronous
n 8-channel AES/EBU audio, 24-bit, 48 kHz sample rate, synchronous or non-synchronous,
n Internal sample rate conversion (via 4 x BNC on breakout cable)
n 16-channel AES/EBU audio, 24-bit, 48 kHz sample rate, synchronous (via 8 x BNC on optional K3G-Box)

SD to SD aspect ratio conversion

Letterbox: Transforms anamorphic SD material into a letterbox image.
n H Crop: Produces a horizontal stretch effect on the image; transforms anamorphic SD to full screen
n SD Pillarbox: Produces an image in the centre of the screen with black borders on the
n left and right sides and an anamorphic image in the centre
n V Crop: Transforms letterbox SD material into an anamorphic image.

Timecode

LTC timecode input and output (via 1 x BNC each)

Reference input

Analogue black (1V) or composite sync (2 or 4V)
