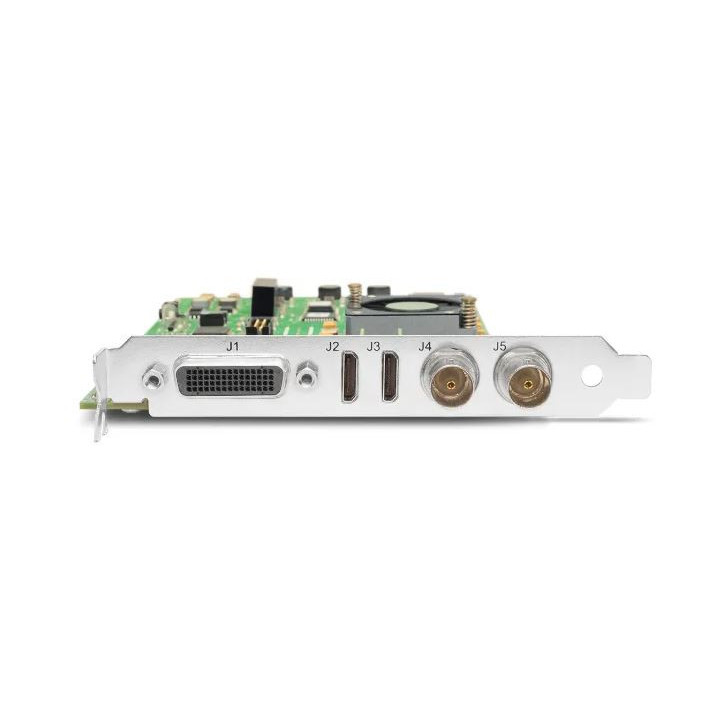

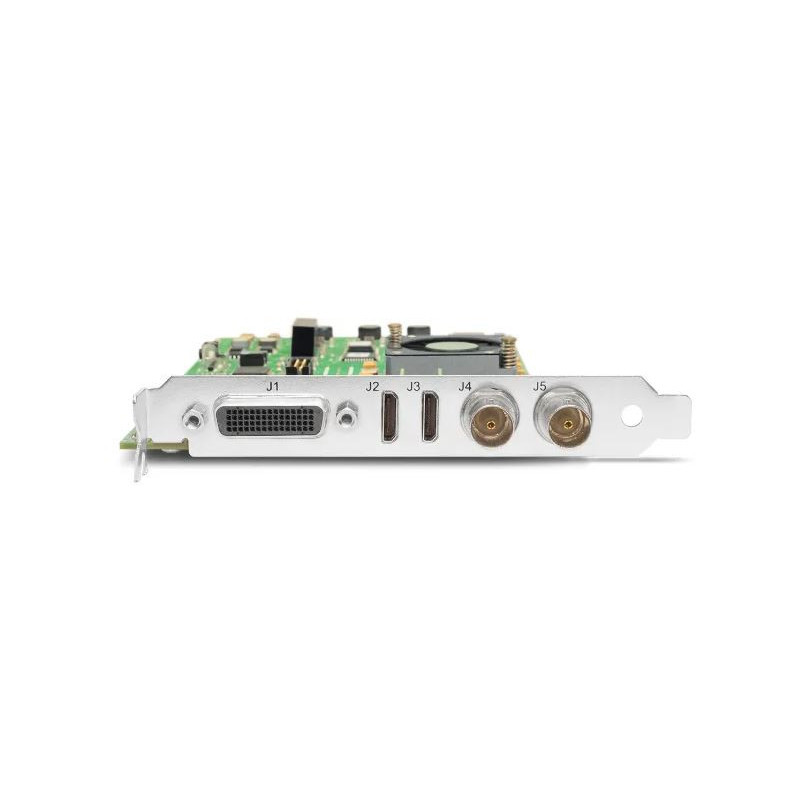

AJA PCIe HD/SD 10-bit digital and 12-bit analogue card
The OEM-LHi is AJA's award-winning platform for uncompressed digital and analogue audio and video input/output. The OEM-LHi is supported on Windows Vista, XP and Linux through our robust and proven SDK environments for each of these platforms. Like all our products, the OEM-LHi is built to the highest specifications, delivering broadcast-quality performance within your systems and applications.
The OEM-LHi is the only PCIe card that includes both analogue and digital SD/HD inputs and outputs with HDMI I/O on a single PCIe card. The OEM-LHi is a true dual-rate SD/HD card, thanks to its 10-bit hardware SD to HD converter (up/down/cross), available on all inputs or outputs. Additionally, HDMI v1.3a capability at 30 bits per pixel provides full support for the latest 10-bit monitors.
Multi-platform support, common API, robust SDK
The OEM-LHi is supported on Windows Vista, XP and Linux through our SDK (Software Development Kit), sharing a unified API (Application Programming Interface). This common API means less development time if you are developing across multiple platforms and even across multiple AJA cards. Our SDKs are feature-rich and proven over many years.
Our SDK supports multiple operating systems, including:
- Windows Vista 32-bit
- Windows Vista 64-bit
- Windows XP 32-bit
- Windows XP 64-bit
- Linux 32-bit
- Linux 64-bit




Specifications



Video formats

(HD) 1080i 25, 29.97, 30
(HD) 1080PsF 23.976, 24, 25, 29.97, 30
(HD) 1080p 23.976, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 525i 29.97
(SD) 625i 25

Digital video input

3G/HD/SD SDI
SMPTE-259/292/296/424
HDMI v1.3, 30 bits/pixel
RGB or YUV, 2.25 Gbps
SD
HD
1080p50/60

Digital video output

3Gb SD and HD-SDI
SMPTE-259/292/296/424
HDMI v1.3, 30 bits/pixel
RGB or YUV, 2.25 Gbps
SD
HD
1080p50/60

Analogue video input

Composite/S-Video (Y/C):
NTSC, NTSCJ, PAL 12-bit A/D
2x oversampling
3-line adaptive comb filter decoding

Analogue video input (continued)

SD Component:
SMPTE/EBU N10, Betacam 525 line
Betacam 525J, RGB
12-bit A/D, 2x oversampling
HD Component:
YPbPr
12-bit A/D

Analogue video output

Composite/S-Video (Y/C):
NTSC, NTSCJ, PAL
12-bit D/A, 8x oversampling
SD Component:
SMPTE/EBU N10, Betacam 525 line
Betacam 525J, RGB
12-bit D/A, 8x oversampling

Analogue video output (continued)

HD Component:
YPbPr, RGB
12-bit D/A, 2x oversampling

Digital audio input

2-channel AES/EBU 16/24/32-bit
48 kHz sample rate Synchronous or Non-synchronous (Internal sample rate conversion)
SDI embedded audio SMPTE-259 16/24/32-bit
8 channels, 48 kHz synchronous

Analogue audio input

2-channel balanced input
+24 dBu Digital full scale
16/24/32-bit A/D, 48 kHz sample rate
Frequency response +/- 0.2 dB 20 to 20 kHz

Digital audio output

2-channel AES/EBU 16/24/32-bit
48 kHz sample rate
AES/EBU 16/24/32-bit, 48 kHz sample rate
SDI embedded audio SMPTE-259 16/24/32-bit, 8 channels, 48 kHz synchronous

Analogue audio output

2-channel balanced output
+24 dBu Digital full scale
16/24/32-bit D/A, 48 kHz sample rate
Frequency response +/- 0.2 dB 20 to 20 kHz

Up-conversion

10-bit hardware
Aspect ratio conversion
modes:
Anamorphic
Pillarbox 4:3
Zoom 14:9
Zoom Letterbox
Zoom wide

Down-conversion

10-bit hardware
Aspect ratio conversion
modes:
Anamorphic
Letterbox
Crop

Cross-conversion

10-bit hardware
1080i to 720p
720p to 1080i

Reference input

Analogue colour or HD tri-level
1 BNC on standard breakout cable (75 Ohm termination)

Machine control

RS-422
Sony 9-pin protocol Connector
provided on breakout cable



HD/SD 10-bit Digital and 12-bit Analog PCIe card, HDMI input and output. Please contact Sales to discuss your cable options.
