Blackmagic - Fairlight PCIe Audio Accelerator

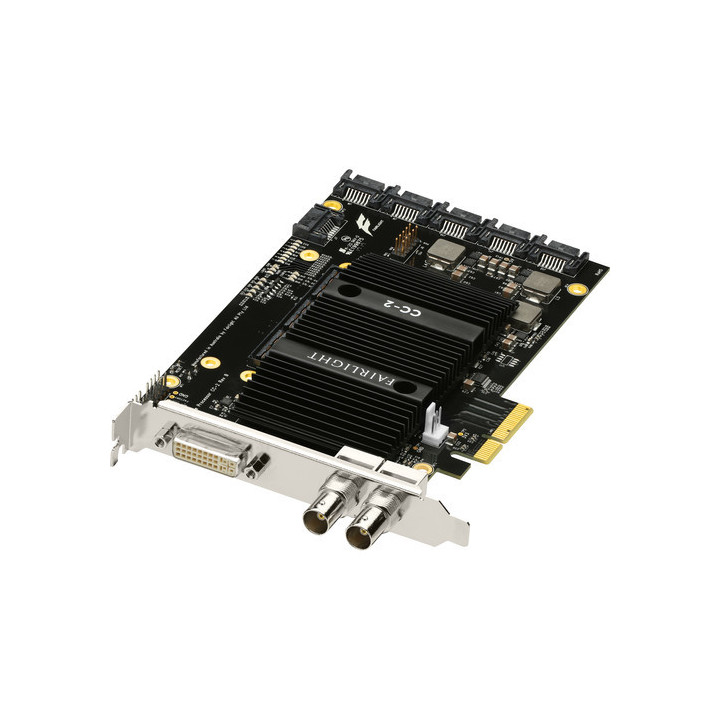

Blackmagic BM-DV/RFL/AUDACC2 - Fairlight PCIe Audio Accelerator
1081282
9338716004731

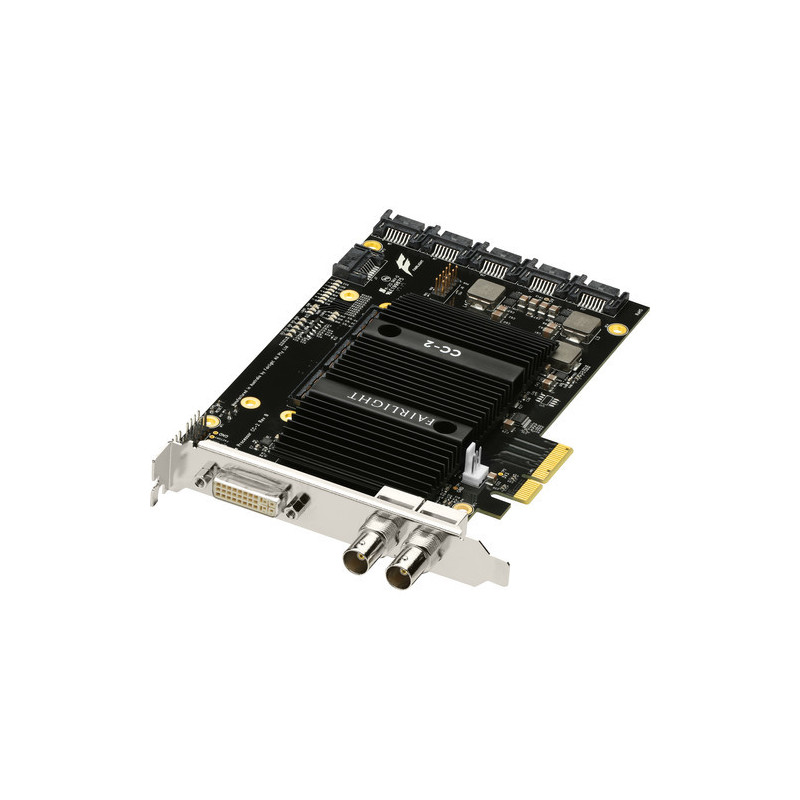

Greatly expand the audio capabilities of your DaVinci Resolve 17 system with the Blackmagic Design Fairlight PCIe Audio Accelerator, a half-length PCIe card that supports up to 2000 tracks (all with ultralow latency), 256 buses plus 512 bus elements, 128 record channels, 64-channel MADI I/O, and up to 16 different speaker sets.
Visuals Price
882.72 CHF
VAT excl.
954.22 CHF Inc. VAT
Manufacturer price 939,06 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Blackmagic Design DV/RFL/AUDACC2 specifications
| OS compatibility | macOS 10.15 or later Windows 10 (64-bit) |
| Bit depth | 32-bit floating point processing |
| Sample rate | 44.1, 48, 96 and 192 kHz |
| Ports | 1 x MADI BNC female input 1 x MADI BNC female output 1 x proprietary multi-pin connector for Fairlight audio interface |
| Expansion capabilities | Supports Fairlight MADI audio upgrade via SATA connectors 1, 2 and 3 |
| PCIe card length | PCIe x4 half-length card |
| Impedance | BNC input and output: 75 Ohms |
| Tracks | 2000 mono audio tracks at 48 kHz 1000 mono audio tracks at 96 kHz 500 mono audio tracks at 192 kHz |
| Channels | 64 input channels at 48 kHz 64 output channels at 48 kHz 128 recording channels at 48 kHz 64 recording channels at 96 kHz 32 recording channels at 192 kHz |
| Channel formats | Mono, stereo, 5.1, 7.1 up to 26.0, and other 3D channel formats |
| Bus | 256 buses plus 512 bus elements at 48 kHz 256 buses plus 256 bus elements at 96 kHz 256 buses plus 128 bus elements at 192 kHz |
| Power consumption | 14 W |
| Operating temperature | 32 to 104°F / 0 to 40°C |
| Storage temperature | -4 to 140°F / -20 to 60°C |
| Relative humidity | 0 to 90% non-condensing |
| PCIe card length | 7.4" / 18.7 cm |
| Weight | 7.7 oz / 216.9 g |
| Package weight | 0.88 lb |
| Carton dimensions (L x W x H) | 12.3 x 7.8 x 2" |
Greatly expand the audio capabilities of your DaVinci Resolve 17 system with the Blackmagic Design Fairlight PCIe Audio Accelerator, a half-length PCIe card that supports up to 2000 tracks (all with ultralow latency), 256 buses plus 512 bus elements, 128 record channels, 64-channel MADI I/O, and up to 16 different speaker sets.
