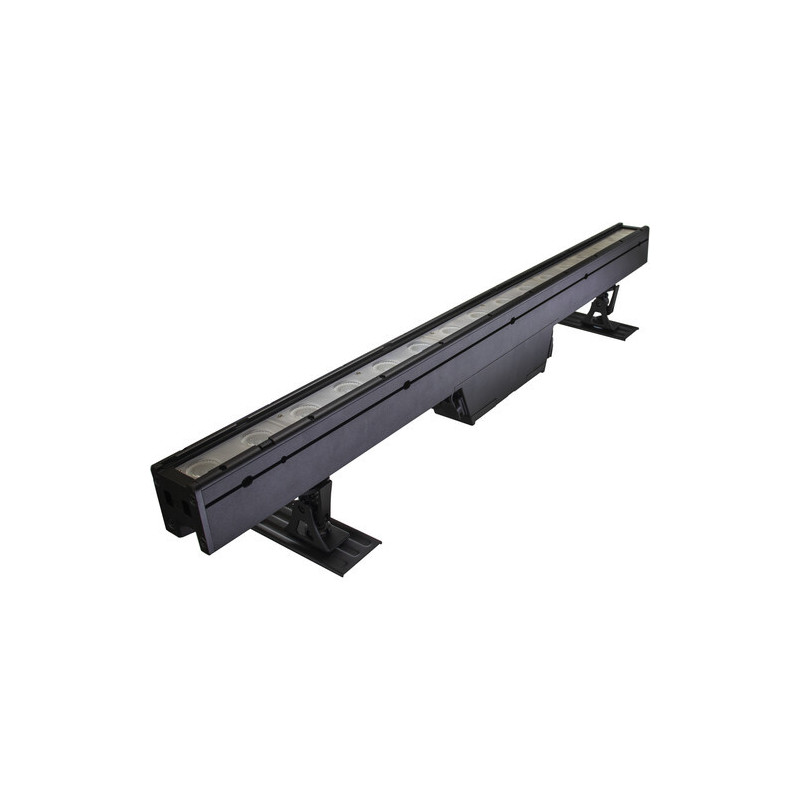

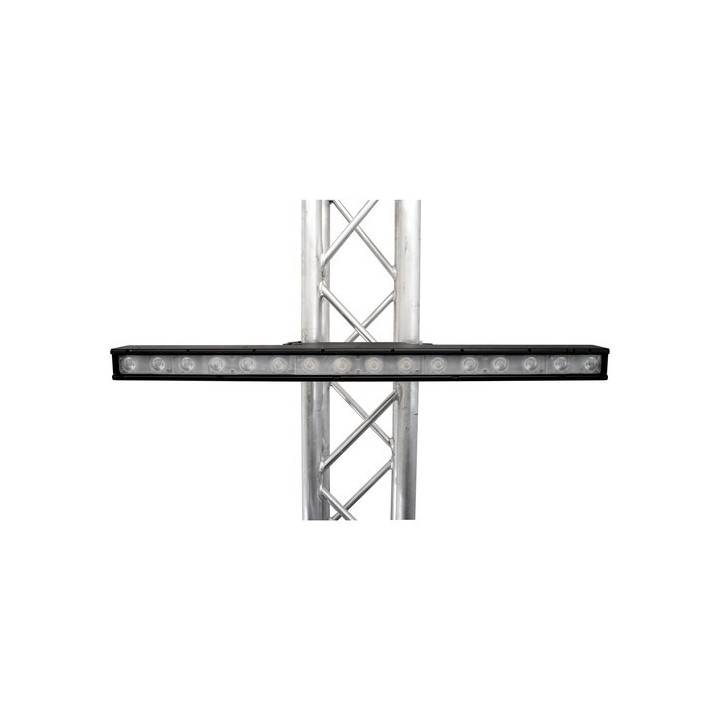

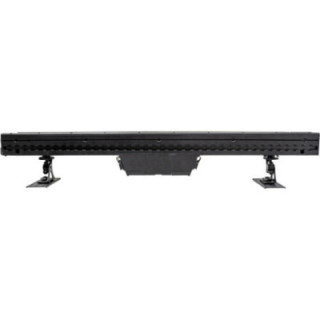

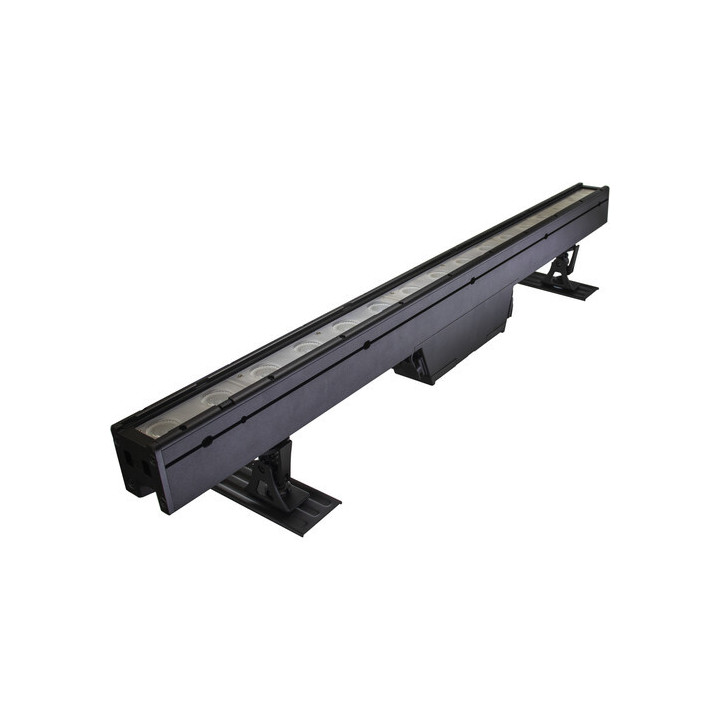

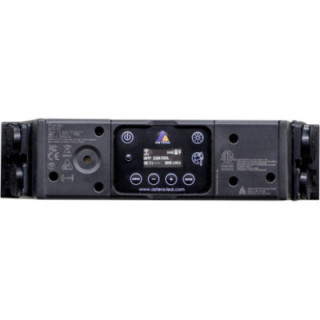

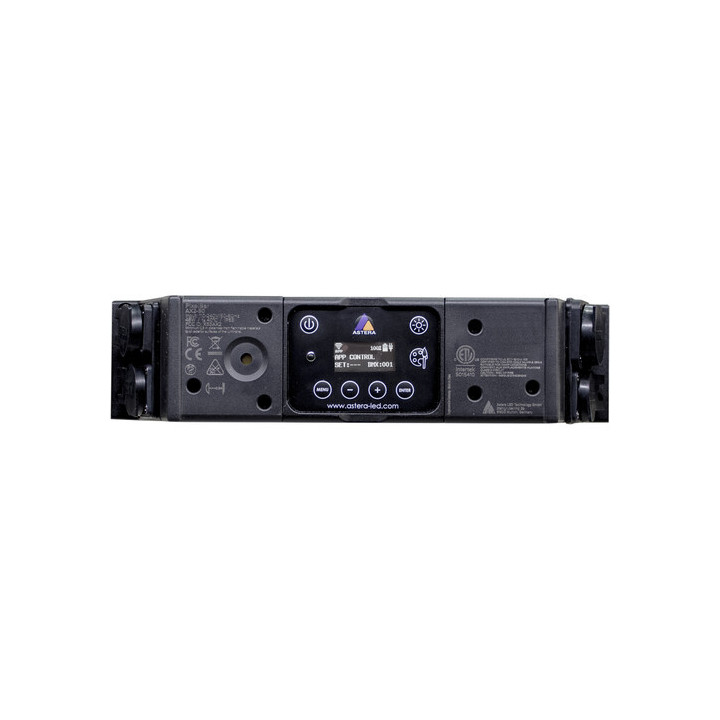

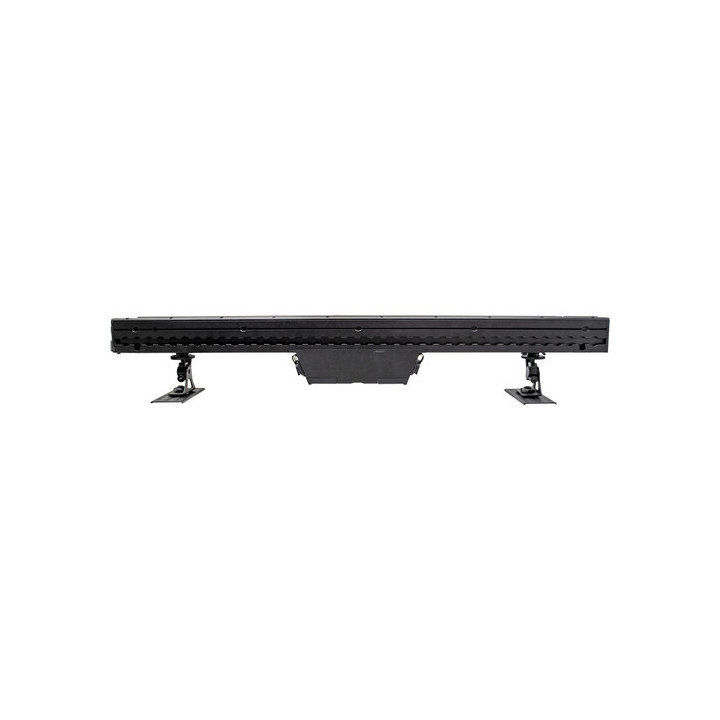

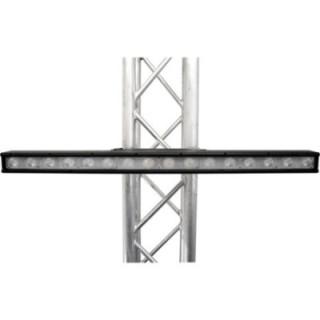

Astera AX2-100 - PixelBar Wireless Linear Wash Fixture (40")
1048520
Built for versatility and high performance, the Astera AX2-100 PixelBar is a 40" long wireless linear wash fixture equipped with 16 individually controllable pixels, 21° lenses from Gaggione, and the TITAN LED Engine, rendering it a highly capable LED bar for concerts, tours, corporate events, and more.
Visuals Price
1,357.90 CHF
VAT excl.
1,467.89 CHF Inc. VAT
Made to order
-
Delivery
-
Delivery time 5 to 8 weeks
Order now, we'll deliver as soon as possible.
Contact us for alternatives:
022 561 07 07.
-
Delivery time 5 to 8 weeks
-
In-store pickup
- Available in 5 to 8 weeks
Wireless PixelBar linear wash fixture (40")
|
|
Specifications |
|
| LED Matrix | TITAN LED engine | |
| Colours | RGB / Mint / Amber | |
| LED Power | 160 W | |
| Power Consumption | 80 W | |
| Light Output | 3600 Lumens at 2700K 4460 Lumens at 3200K 4530 Lumens at 5500K | |
| CRI Accuracy @ Ra | ≥96 (TLCI 3200 to 6500K) | |
| Beam Angle | 21° | |
| Strobe | 0 to 25 Hz | |
| Pixels | 16 | |
| Battery Lifespan | 70% after 300 cycles | |
| Battery Life | Up to 20 hours | |
| Charging Time | 5 hours (nominal) | |
| Input Voltage | 100 to 240 VAC, 50/60 Hz, 2 A Maximum | |
| DMX Connectors | 1 x 5-pin male XLR Input 1 x 5-pin female XLR Output | |
| Receiver | Built-in CRMX receiver | |
| Wireless Frequency Band | UHF: 917 to 922.20 MHz | |
| Modulation | FHSS | |
| Transmitter Power | <25 mW | |
| Number of Channels | 53 | |
| Wireless Range | 984.3' / 300 m | |
| Power Connections | 1 x powerCON TRUE1 Input 1 x powerCON TRUE1 Output | |
| Operating Temperature | 32 to 104°F / 0 to 40°C | |
| IP Rating | IP65 | |
| Housing | Aluminium | |
| Dimensions | 40.1 x 6.5 x 2.6" / 101.9 x 16.5 x 6.6 cm (Hook included) 39.4 x 6.5 x 2.6" / 100.1 x 16.5 x 6.6 cm (Hook excluded) | |
| Weight | 16.3 lb / 7.4 kg | |
Built for versatility and high performance, the Astera AX2-100 PixelBar is a 40" long wireless linear wash fixture equipped with 16 individually controllable pixels, 21° lenses from Gaggione, and the TITAN LED Engine, rendering it a highly capable LED bar for concerts, tours, corporate events, and more.
