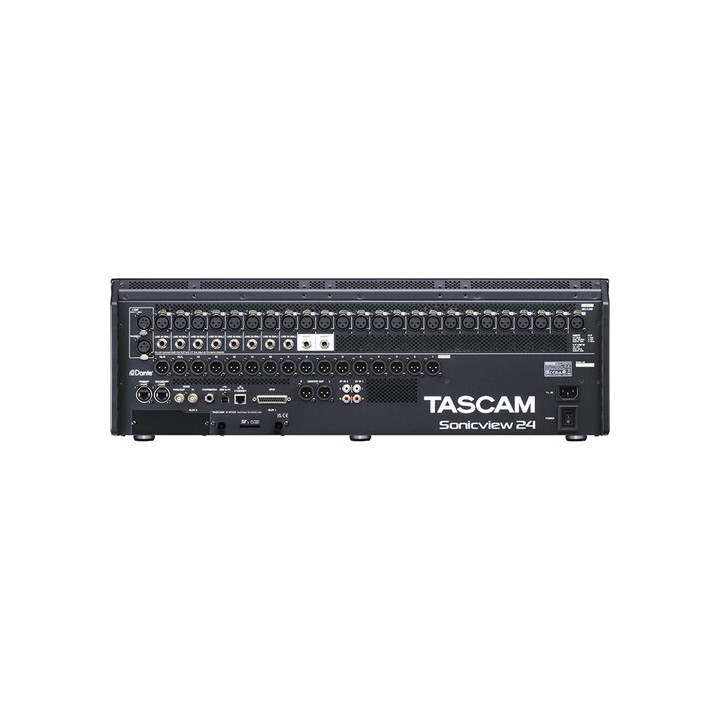

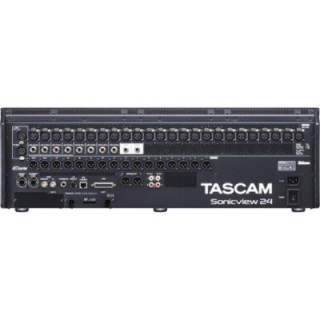

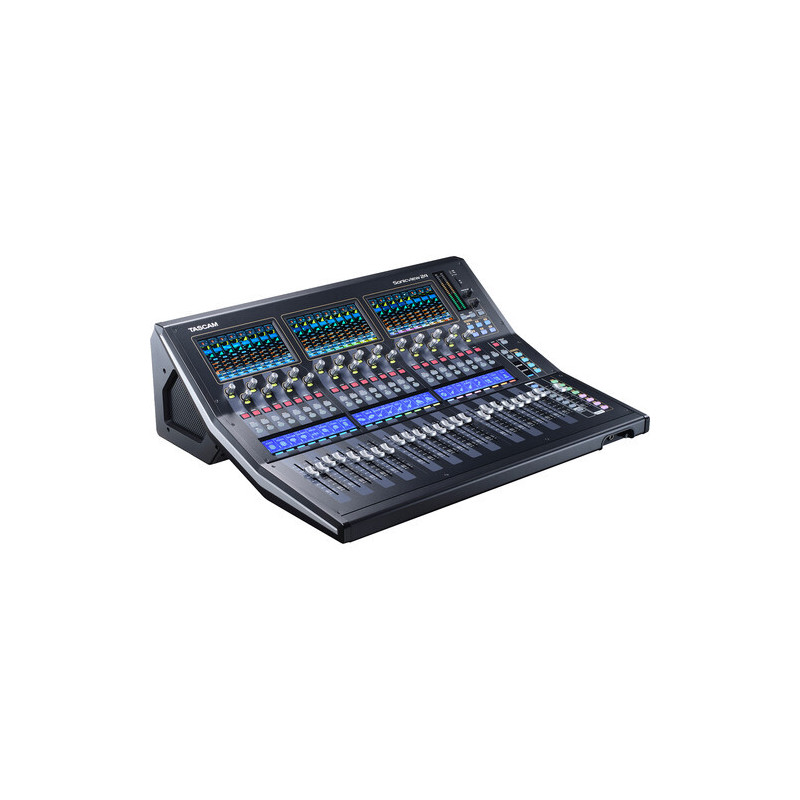

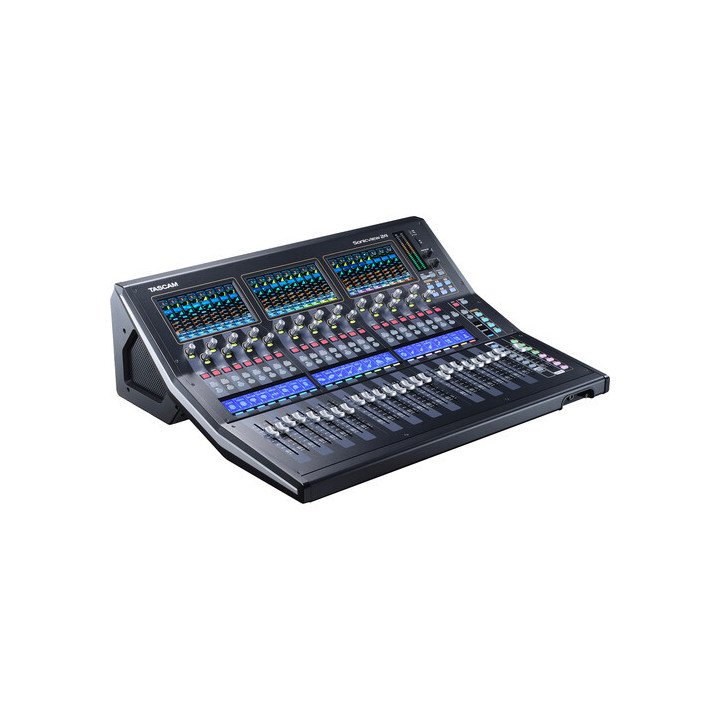

Tascam - Sonicview 24 - Interactive digital mixer
Tascam Sonicview 24 - Sonicview 24 - Interactive digital mixer
1060891
4907034132898
With Sonicview, Tascam has created an entirely new line of digital mixing consoles that incorporate the latest technology and make it easy to view and control all of the parameters you want, when you want, with fully customisable touchscreens and user-definable buttons, motorised faders and intuitive control software.
Visuals Price
5,882.08 CHF
VAT excl.
6,358.53 CHF Inc. VAT
Made to order
-
Delivery
-
Delivery time 3 to 5 weeks
Order now, we'll deliver as soon as possible.
Contact us for alternatives:
022 561 07 07.
-
Delivery time 3 to 5 weeks
-
In-store pickup
- Available in 3 to 5 weeks
|
|
Specifications |
|
| Mixer | ||
| Number of Analog Input Channels | 24 (24 Mono) | |
| Number of Mic Preamps | 24 | |
| Number of Analogue Output Channels | 16 | |
| Max I/O Capacity | 52 x Input / 32 x Output (with Optional Hardware) | |
| Mix Routing | 1 x Main LRC 4 x Mono Subgroup 4 x Mono Aux Send |
|
| Groups | 8 x DCA Group | |
| Presets | None | |
| Display | Main Display: 7" LCD Touchscreen |
|
| Display Resolution/Colour | Main Display: 800 x 480 / RGB Colour Channel Display: 384 x 68 / Monochrome |
|
| Faders & Level Adjustment | 25 x 3.9" / 100 mm Motorised(Touch Sensitive) | |
| Metres | Main Metre: 2 x 24-Segment LED |
|
| Signal Processing | ||
| Input Pad | -20 dB | |
| Input Polarity | Normal/Reverse | |
| Dynamic Processing | Input Channels: Compressor, Gate Buses, Master: Compressor |
|
| EQ | Input Channels: 4-Band Parametric Output Buses: 31-Band Graphic 4-Band Parametric |
|
| Filters | Input Channels: High-Pass |
|
| Solo/Mute | Solo, Mute per Input Channel, Bus, FX Bus, Master | |
| Built-In Effects | 4 x Stereo Effect (Type Unspecified) | |
| Automatic Mic Mixing | None | |
| Digital Audio | ||
| Sample Rates | Up to 96 kHz | |
| Bit Depth | 32-Bit | |
| DSP | 56-Bit Floating Point | |
| Converter Dynamic Range | 112 dB | |
| Latency | < 0.66 ms | |
| Performance | ||
| dBFS Reference Level | 4 dBu = 0 dBFS | |
| Frequency Response | Mic/Line InputLine : 20 Hz to 40 kHz +0/-1 dB (at 96 kHz) 20 Hz to 20 kHz 0/-0.5 dB (at 48 kHz) |
|
| Max Input Level | Mic/Line Input: +32 dBu at Max Gain Mic/Line Input: -62 dBV at Min Gain |
|
| Output Level | Output: +24 dBu |
|
| Analogue Dynamic Range | 108 dB at Min Gain | |
| Headphone Output Power | 1/4": 100 mW per Channel into 32 Ohms (Max) | |
| I/O Impedance | XLR Line/Mic Input: ≥ 5 Kilohms Stereo RCA Input: 10 Kilohms XLR Output: 100 Ohms |
|
| Crosstalk | ≥ 100 dB at 1 kHz (Sine Wave, JEITA) | |
| EIN | XLR Mic Input: < -128 dBu at Max Gain |
|
| THD | < 0.002% at Min Gain (+4 dBu) | |
| Signal Generator | None | |
| Connectivity | ||
| Analogue Inputs | 24 x XLR 3-Pin Balanced Mic/Line Input 8 x 1/4" TRS Balanced/Unbalanced Line Input 2 x 1/4" Unbalanced Insert Insert 1 x XLR 3-Pin Balanced Talkback Input 1 x DB-25 25-Pin Alt Input 2 x Stereo RCA TS Stereo 2-Track Input |
|
| Analogue Outputs | 16 x XLR 3-Pin Balanced Main/Bus Output 2 x XLR 3-Pin Balanced Monitor Output 1 x 1/4" TRS Headphone Output 1 x 1/8" / 3.5 mm TRS Headphone Output |
|
| Phantom Power | 48 V | |
| Digital I/O | 1 x RJ45 Ethernet Input/Output (Network) 2 x RJ45 Dante Input/Output (I/O, Network) |
|
| MIDI I/O | None | |
| USB | 1 x USB-B (Host Connection) 1 x USB-A (2-Track Record, Audio Playback, External Memory) |
|

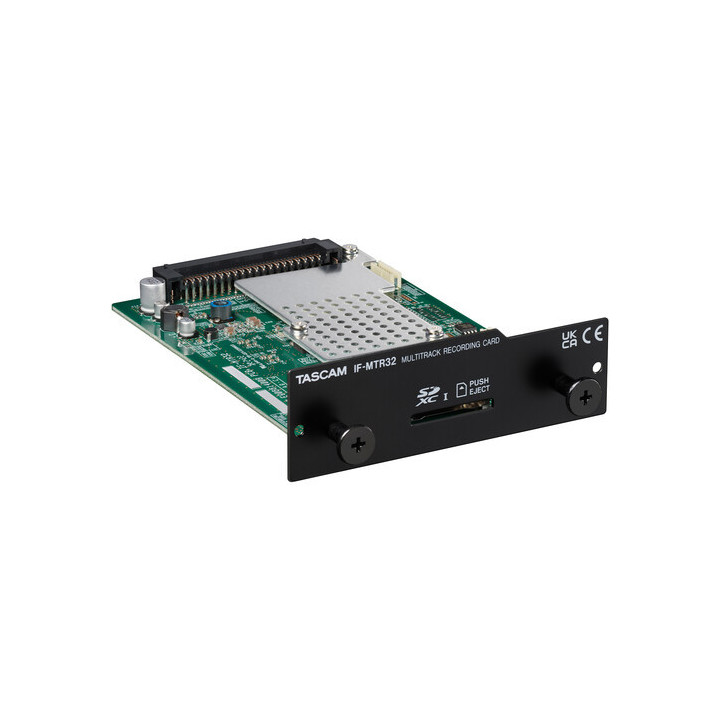

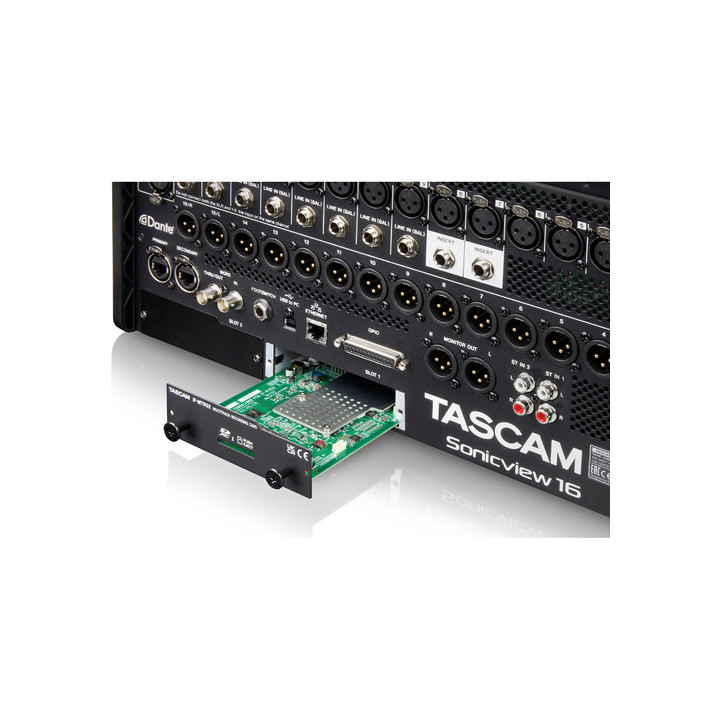

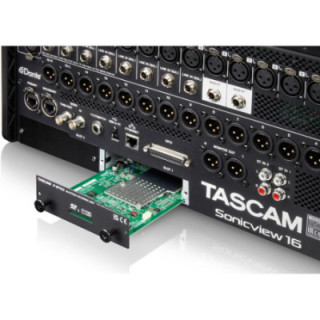

| Expansion Ports | 1 x I/O Card | |
| Wireless Connectivity | None | |
| Mobile App Compatible | Yes: iPadOS Only App Name: Sonicview Control Functionality: Adjust Settings, Remote Control, Setup, View Live Feed *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
|
| Recording | ||
| Max Multitrack Recording | 32 Tracks | |
| Media Support | SD, SDHC, USB Drive | |
| Max Media Storage Capacity | SD: 32 GB SDHC: 128 GB USB: 128 GB |
|
| File Format Support | Playback: AAC, MP3, WAV Record: WAV |
|
| File System Support | FAT32, exFAT | |
| Compatibility | ||
| OS Compatibility | Windows 10 to 11 (64-Bit Only) macOS 10.15 to 12 (64-Bit Only) *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
|
| Required Hardware | None | |
| Power | ||
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz | |
| Power Consumption | 85 W | |
| Physical | ||
| Rack Mountable | No | |
| Dimensions | 27.2 x 9 x 21.4" / 690.8 x 228.1 x 544.4 mm | |
| Weight | 39.7 lb / 18 kg | |
| Packaging Info | ||
| Package Weight | 47 lb | |
| Box Dimensions (LxWxH) | 31.5 x 27.5 x 14" | |
With Sonicview, Tascam has created an entirely new line of digital mixing consoles that incorporate the latest technology and make it easy to view and control all of the parameters you want, when you want, with fully customisable touchscreens and user-definable buttons, motorised faders and intuitive control software.
