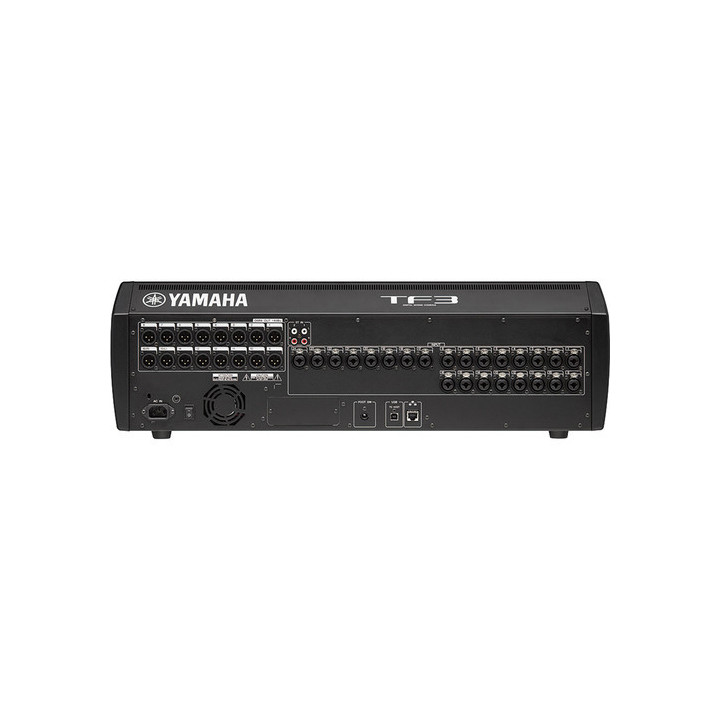

Yamaha TF3 - Digital mixing console
3,625.33 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Yamaha TF3 is a rack-mountable digital audio mixing console with a touchscreen, 25 motorised faders and expandable up to 48 input channels by adding the optional Tio1608-D I/O rack. Ideal for a wide range of live sound applications, the TF3 can also be used for live recording, offering 34 x 34 channels of digital recording and playback via USB 2.0 using a computer and your preferred DAW software, plus 2 x 2 channels of recording and playback via any USB storage device.

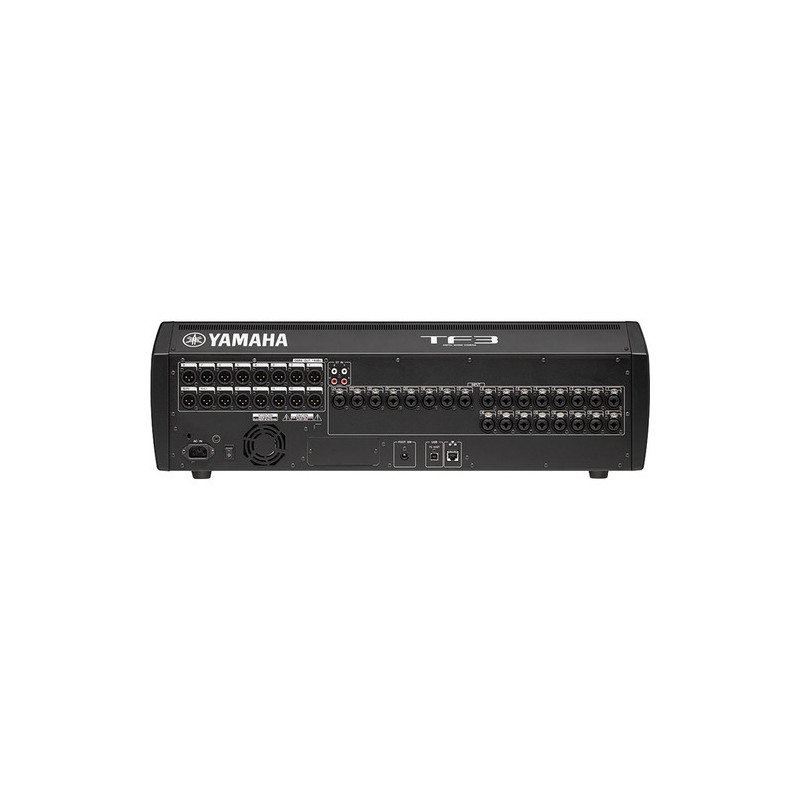

The TF3 console itself provides 24 analogue XLR/TRS combo mic/line inputs with 48V phantom power, plus 2 analogue RCA stereo line inputs and 16 analogue XLR outputs. Each combo input channel features a recallable D-PRE mic preamp, as well as an equaliser and two dynamics processors. In addition, the console offers eight powerful effects processors with presets ranging from reverb and delay to modulation effects such as flanger and chorus, as well as utility treatments such as 3-band multiband compression. The TF3 comes with Steinberg Nuendo Live for advanced multitrack recording and virtual soundcheck capabilities.
Features
- 25 motorised faders (24 channels + 1 master)
- 48 input mixing channels (40 mono + 2 stereo + 2 returns)
- 20 Aux (8 mono + 6 stereo) + stereo bus + sub - 8 DCA groups with Roll-out
- 24 analogue XLR/TRS combo mic/line inputs + 2 analogue RCA stereo line inputs
- 16 analogue XLR outputs
- 34 x 34 channels of digital recording/playback via USB 2.0 + 2 x 2 via USB storage device
- Optional rack mount kit
- 1 expansion slot for optional Dante NY64-D audio interface card
- Optional Dante-compatible Tio1608-D I/O rack with 16 mic/line inputs and 8 line outputs
|
|
Technical specifications |
|
|
Mixing console |
|
|
|
Number of analogue input channels |
24 |
|
|
Faders |
25 x 100 mm / 3.9" motorised |
|
|
Mix routing |
1 x Main LRC |
|
|
Groups |
8 x DCA groups |
|
|
Signal processing |
|
|
|
Gain/trim range |
-6 dB to +66 dB |
|
|
Graphic equaliser |
Yes |
|
|
Internal effects |
8 x Effects (Type unspecified) |
|
|
Digital audio |
|
|
|
Sampling frequency |
48 kHz |
|
|
Resolution |
Recording : |
|
|
Converter dynamic range |
N/A : |
|
|
Latency |
<2.6 ms (Analogue input to analogue output) |
|
|
Performance |
|
|
|
Frequency response |
20 Hz to 20 kHz +0.5/-1.5 dB |
|
|
Maximum input level |
Mic/Line input : |
|
|
Output level |
Output : |
|
|
Analogue dynamic range |
107 dB at minimum gain |
|
|
Headphone output power |
3 mW |
|
|
Input/output impedance |
XLR-6.35 mm jack combo input : |
|
|
Crosstalk |
-100 dB |
|
|
Equivalent input noise |
-128 dBu at maximum gain (A-weighted) |
|
|
Noise floor |
-85 dBu (A-weighted) |
|
|
Total harmonic distortion |
<0.05% at minimum gain (+4 dBu) |
|
|
Connectivity |
|
|
|
Analogue inputs |
1 x 6.35 mm TS jack pedal input |
|
|
Analogue outputs |
16 x Balanced XLR outputs |
|
|
Digital I/O |
1 x RJ45 (Network) |
|
|
USB |
1 x USB Type-B (Host connection) |
|
|
Expansion ports |
1 x I/O card |
|
|
Recording |
|
|
|
Maximum multitrack recording |
34 tracks |
|
|
Supported file formats |
Playback: MP3, WAV |
|
|
Electrical power supply |
|
|
|
Mains power supply |
100 to 240 VAC, 50 / 60 Hz |
|
|
Power consumption |
110 W |
|
|
Physical characteristics |
|
|
|
Dimensions |
716 x 225 x 599 mm / 28.2 x 8.9 x 23.6" |
|
|
Weight |
7 kg / 37.5 lb |
