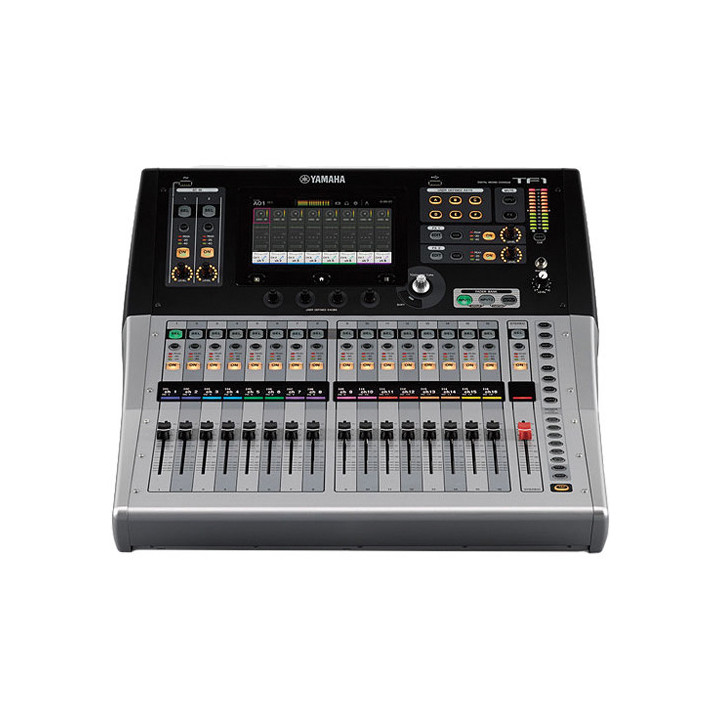

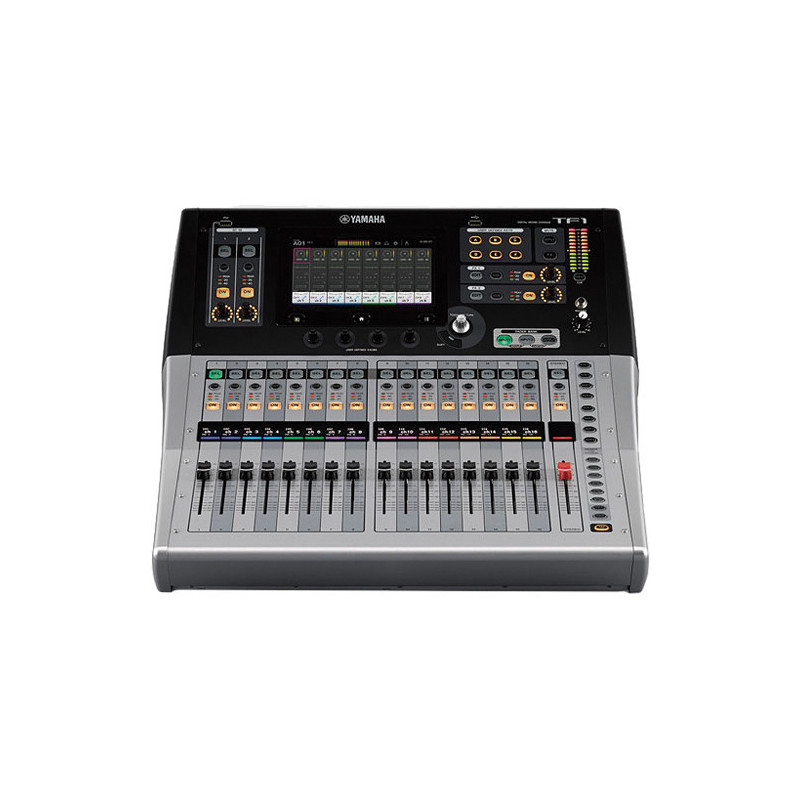

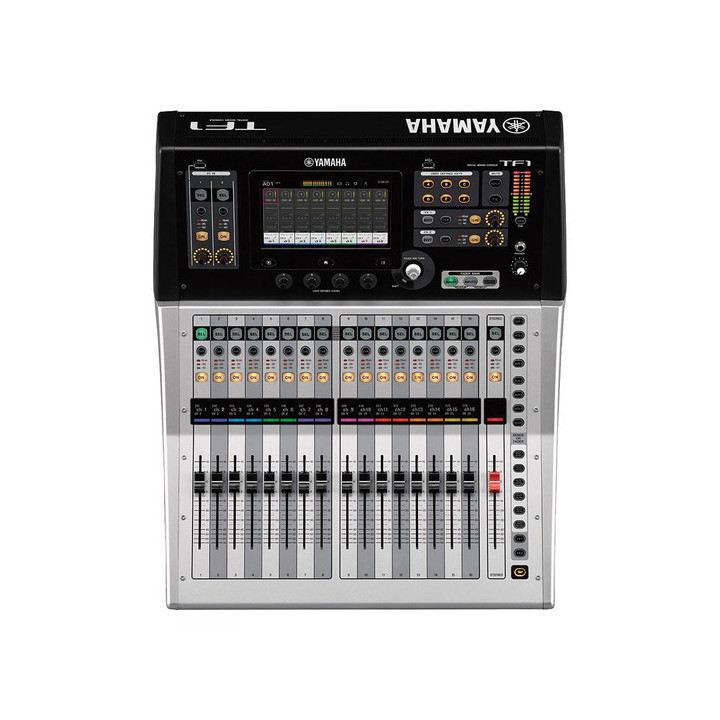

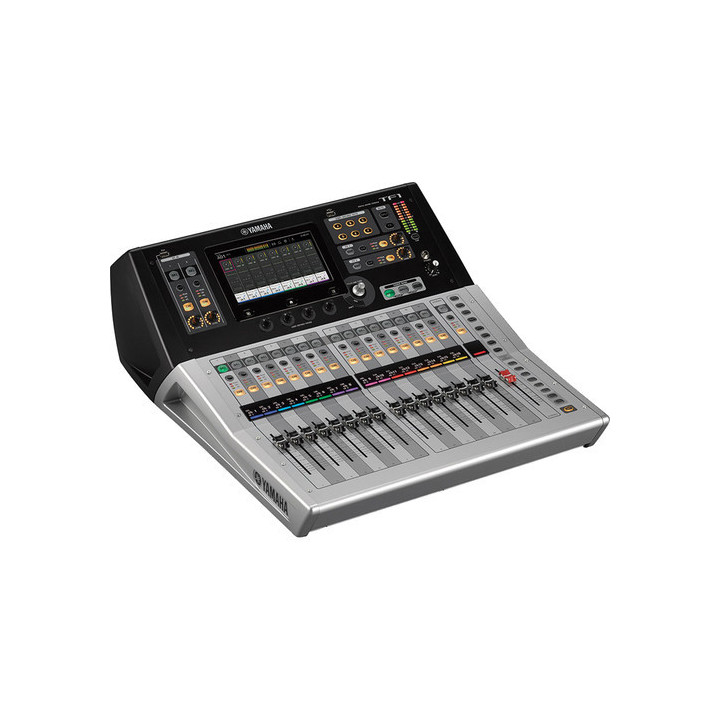

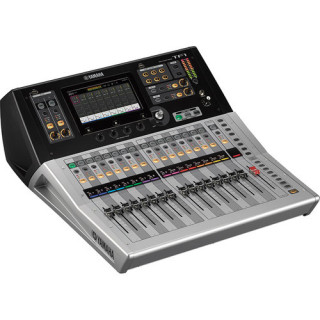

Yamaha TF1 - Digital mixing console
2,613.01 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Yamaha TF1 is a rack-mountable digital audio mixing console with a touchscreen, 17 motorised faders, expandable to 40 input channels by adding the optional Tio1608-D I/O rack. Perfect for various live sound reinforcement situations, the TF1 can also be used for live recording, offering 34 x 34 channels of digital recording and playback via USB 2.0 with a computer and your preferred DAW software, as well as 2 x 2 channels of recording and playback via any USB storage device. The TF1 console itself provides 16 analogue mic/line combo XLR/TRS inputs with 48V phantom power, plus 2 analogue RCA stereo line inputs, and 16 analogue XLR outputs. Each combo input channel features a recallable D-PRE microphone preamplifier, as well as an equaliser and two dynamics processors. In addition, the console offers eight powerful effects processors with patches ranging from reverb and delay, to modulation effects such as flanger and chorus, to utility processing such as 3-band multiband compression. The TF1 comes with Steinberg's Nuendo Live for advanced multitrack virtual sound control capabilities. Features - 17 motorised faders (16 channels + 1 master) - 40 input mixing channels (32 mono + 2 stereo + 2 returns) - 20 Aux buses (8 mono + 6 stereo) + Stereo + Sub - 8 DCA groups with Roll-out - 16 analogue XLR/TRS combo mic/line inputs + 2 analogue RCA stereo line inputs - 16 analogue XLR outputs - 34 x 34 digital recording/playback channels via USB 2.0 + 2 x 2 via USB storage device - Optional rack mount kit - 1 expansion slot for optional Dante NY64-D audio interface card - Optional Dante-compatible Tio1608-D I/O rack with 16 mic/line inputs and 8 line outputs
|
|
Specifications |
|
|
Mixing console |
|
|
|
Number of analogue input channels |
16 |
|
|
Faders |
17 x 3.9" / 100 mm motorised |
|
|
Mix routing |
1 x Main LRC, 1 x Subgroup, 6 x Stereo Aux send, 8 x Mono Aux send |
|
|
Groups |
8 x DCA Group |
|
|
Signal processing |
|
|
|
Gain/trim range |
-6 dB to +66 dB |
|
|
Graphic equaliser |
Yes |
|
|
Internal effects |
8 x Effects (Type unspecified) |
|
|
Digital audio |
|
|
|
Sampling frequencies |
48 kHz |
|
|
Bit depth |
Recording:, 24 bits |
|
|
Converter dynamic range |
N/A:, 110 dB |
|
|
Latency |
<2.6 ms (Analogue input to analogue output) |
|
|
Performance |
|
|
|
Frequency response |
20 Hz to 20 kHz +0.5/-1.5 dB |
|
|
Maximum input level |
Mic/line input:, +30 dBu, Stereo input:, +10 dBV |
|
|
Output level |
Output:, +4 dBu (Nominal), +24 dBu (Max) |
|
|
Analogue dynamic range |
107 dB at minimum gain |
|
|
Headphone output power |
3 mW, 75 mW (Max) |
|
|
Input/output impedance |
XLR-1/4" combo input:, 7.5 kilohms, 2RCA input:, 10 kilohms, XLR output:, 75 ohms, Headphone output:, 100 ohms |
|
|
Crosstalk |
-100 dB |
|
|
ON |
-128 dBu at maximum gain (A-weighted) |
|
|
Noise floor |
-85 dBu (A-weighted) |
|
|
DHT |
<0.05% at minimum gain (+4 dBu) |
|
|
Connectivity |
|
|
|
Analogue inputs |

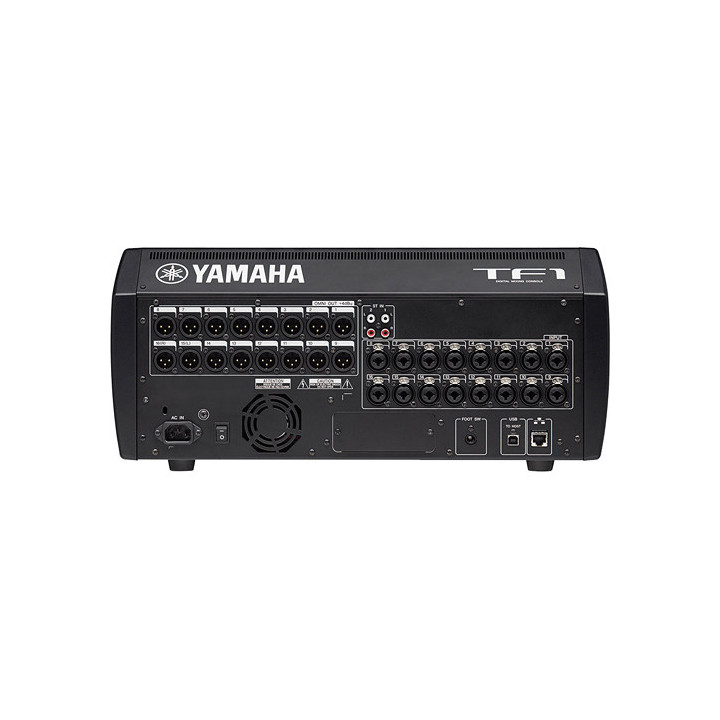

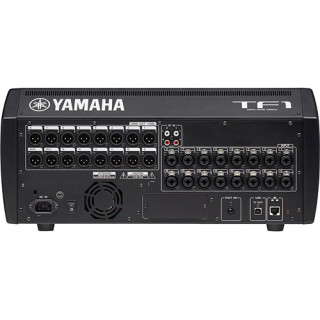

1 x 1/4" TS footswitch input, 2 x 2RCA unbalanced input, 16 x XLR-1/4" TRS combo balanced mic/line input, 2 x 2RCA stereo line input |
|
|
Analogue outputs |
16 x Balanced XLR output, 1 x 1/4" TRS unbalanced headphone output |
|
|
Digital I/O |
1 x RJ45 (Network) |
|
|
USB |
1 x USB Type-B (Host connection), 2 x USB Type-A (Control, external memory) |
|
|
Expansion ports |
1 x I/O card |
|
|
Recording |
|
|
|
Maximum multitrack recording |
34 tracks |
|
|
Supported file formats |
Playback: MP3, WAV, Recording: WAV |
|
|
Power supply |
|
|
|
AC mains power supply |
100 to 240 VAC, 50/60 Hz |
|
|
Power consumption |
100 W |
|
|
Physical characteristics |
|
|
|
Dimensions |
20.1 x 8.9 x 23.6" / 510 x 225 x 599 mm |
|
|
Weight |
29.8 lb / 13.5 kg |
