Sony DWT-B03R/H - Digital Belt-Pack Wireless Trasmitter
1001194
5013493376212
Micro DWX Gen3 bodypack, 566.025 MHz to 714.000 MHz, 25 kHz steps, 20Hz to 22kHz transmission, NP-BX1 Li-ion battery (approx. 7 hours)
Visuals Price
2,162.00 CHF
VAT excl.
2,337.12 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Sony Wireless Digital Bodypack Transmitter
The Sony DWT-B03R wireless digital transmitter: Exceptional audio quality and stable operation across a wide range of environments
The Sony DWT-B03R wireless digital transmitter: Exceptional audio quality and stable operation across a wide range of environments
The third generation of Sony's acclaimed DWX series, this high-performance wireless digital bodypack transmitter is an ideal choice for live sound reinforcement applications, including theatre and concerts, as well as studio television production and ENG/EFP.
Main features:
- Up to 148 MHz bandwidth
- 2 mW, 10 mW & 25 mW
- Small, lightweight and robust magnesium housing
- Weight: approx. 99 g
- Dimensions: 53 mm x 60 mm x 17 mm (antenna not included)
- Up to 7 hours battery life
- NP-BX1 lithium-ion rechargeable battery
- Phase shift
- Sony High Definition Audio Codec 4
- Cross Remote for full RF control
- Lemo 3-pin
- OLED display
Small, lightweight and durable
With only 53 mm x 60 mm x 17 mm (antenna not included), the DWT-B03R is incredibly small and lightweight. It also features a robust magnesium housing resistant to rain, splashes and perspiration.
Wide band, more channels per band
The DWT-B03R is ideal for use in large-scale multi-channel productions. Its 148 MHz bandwidth per pack means the bandwidth is almost doubled compared to previous versions. The DWX3 supports up to 21 simultaneous channels per 8 MHz TV band.
Extreme stability and low latency
Sony's advanced digital audio processing, encryption and RF transmission technologies ensure secure and stable transmission and reception of very high quality sound with low latency.
Remotely control 82 transmitters
Main features:
- Up to 148 MHz bandwidth
- 2 mW, 10 mW & 25 mW
- Small, lightweight and robust magnesium housing
- Weight: approx. 99 g
- Dimensions: 53 mm x 60 mm x 17 mm (antenna not included)
- Up to 7 hours battery life
- NP-BX1 lithium-ion rechargeable battery
- Phase shift
- Sony High Definition Audio Codec 4
- Cross Remote for full RF control
- Lemo 3-pin
- OLED display
Small, lightweight and durable
With only 53 mm x 60 mm x 17 mm (antenna not included), the DWT-B03R is incredibly small and lightweight. It also features a robust magnesium housing resistant to rain, splashes and perspiration.
Wide band, more channels per band
The DWT-B03R is ideal for use in large-scale multi-channel productions. Its 148 MHz bandwidth per pack means the bandwidth is almost doubled compared to previous versions. The DWX3 supports up to 21 simultaneous channels per 8 MHz TV band.
Extreme stability and low latency
Sony's advanced digital audio processing, encryption and RF transmission technologies ensure secure and stable transmission and reception of very high quality sound with low latency.
Remotely control 82 transmitters
The Sony DWT-B03R is compatible with Sony Wireless Studio control software for PC (Ver 5.0 or later), enabling flexible remote operation. Remote control of up to 82 transmitters is possible using the Cross Remote™ function combined with the RMU-01 remote control unit (sold separately).
New battery and OLED display

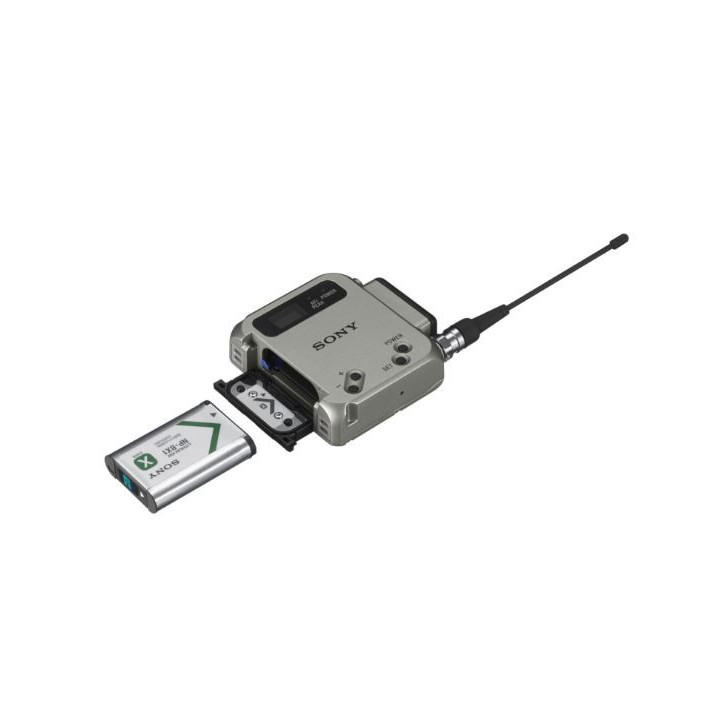

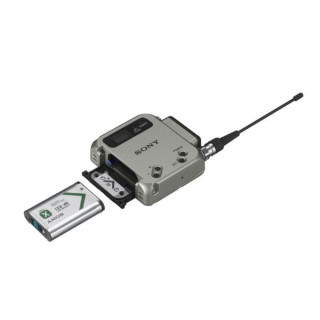

The DWT-B03R transmitter uses Sony's NP-BX1 Li-Ion battery and recharges via the BC-DWX1 battery charger, which is equipped with PoE (Power over Ethernet) capabilities. Over 7 hours. Easily available worldwide – reduced cost. Navigation through the on-board menu system and control of the unit's parameters are facilitated by the integration of a high-resolution OLED display offering superior clarity and reduced overall power consumption. The battery provides up to 7 hours of use.
New battery and OLED display
The DWT-B03R transmitter uses Sony's NP-BX1 Li-Ion battery and recharges via the BC-DWX1 battery charger, which is equipped with PoE (Power over Ethernet) capabilities. Over 7 hours. Easily available worldwide – reduced cost. Navigation through the on-board menu system and control of the unit's parameters are facilitated by the integration of a high-resolution OLED display offering superior clarity and reduced overall power consumption. The battery provides up to 7 hours of use.
|
|
Specifications |
|
|
Wireless interface |
WiDIF-HP |
|
|
Oscillator type |
Quartz PLL synthesiser |
|
|
Antenna type |
Flexible λ/4 wire |
|
|
Transmission type |
G1E or G1D |
|
|
Carrier frequencies – UC |
UC: 470.125 MHz to 607.875 MHz, step 25 kHz |
|
|
Carrier frequencies – CE7 |
L: 470.025 MHz to 614.000 MHz, step 25 kHz |
|
|
Carrier frequencies – J |
L: 470.150 MHz to 614.000 MHz, step 25 kHz |
|
|
RF power |
2 mW/10 mW/25 mW (e.r.p.) selectable |
|
|
Input connector |
3-pin mini connector |
|
|
Reference input level |
MIC: -60 dBV (-58 dBu), 1 kHz (attenuator level 0 dB) / LINE: +4 dBu, 1 kHz |
|
|
Maximum input level |
MIC: -22 dBu (with 0 dB attenuator), LINE: +24 dBu |
|
|
Audio attenuator adjustment range |
0 to 48 dB (in 3 dB steps, MIC input mode only) |
|
|
Frequency response |
Transmission: 20 Hz to 22 kHz (typical) |
|
|
Dynamic range |
106 dB typical (A-weighted, T.H.D=1%) |
|
|
Distortion (T.H.D) |
MODE1, MODE2: 0.03% or less, MODE3: 0.3% or less |
|
|
Audio delay |
MODE1: 0.9 ms (total: 2.8 ms) / MODE2: 0.7 ms (total: 1.2 ms) / MODE3: 1.8 ms (total: 3.7 ms) |
|
|
Wireless remote control |
Cross Remote (IEEE802.15.4 compliant 2.4 GHz) |
|
|
Display |
OLED |
|
|
Power supply |
DC 3.6 V (with rechargeable battery: NP-BX1) |
|
|
Operating temperature |
0°C to 50°C / 32°F to 122°F |
|
|
Storage/transport temperature |
-20°C to +60°C / -4°F to +140°F |
|
|
Dimensions (W x H x D) |
Approx. 53 x 60 x 17 mm (60 x 60 x 17 mm including protruding parts) (antennas not included) |
