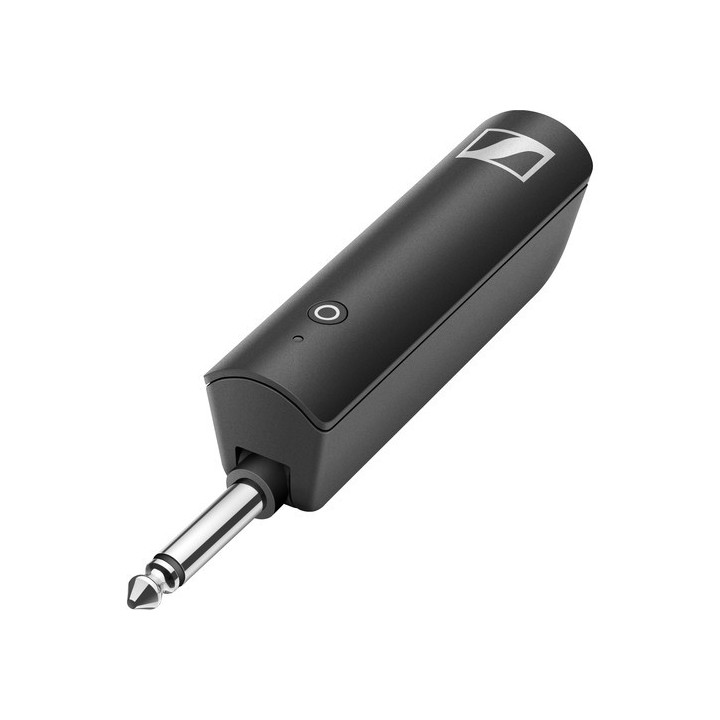

Sennheiser XSW-D INSTRUMENT RX 1/4" plug-in receiver (2.4 GHz)
A component of the Sennheiser XSW-D digital wireless system, the XSW-D INSTRUMENT RX 1/4" plug-in receiver is available as an individual component to serve as a backup or replacement receiver. It features a 1/4" male connector ready to be plugged directly into your amplifier or pedal input.
The XSW-D delivers Sennheiser's globally recognised wireless audio quality in a miniaturised, low-latency, one-button digital system that anyone can use. Plug it in, switch it on, and you're immediately ready to play, simplifying your setup so you can focus on your performance with confidence.
Plug In, Switch On: It Works
- The 1-button, 1-LED concept with single-button interface and status indicator easily handles power and pairing tasks for you - without requiring additional button presses.
(For optimal results, XSW-D use is recommended in environments with limited Wi-Fi / 2.4 GHz traffic.)
Switch to Sennheiser Sound Quality
- Sennheiser wireless systems are an industry benchmark, prized by professionals for their clarity and reliability. The XSW-D system allows budget-conscious beginners to access true Sennheiser sound quality without breaking the bank.
- Analogue wireless systems must compress your signal to operate in FM band, resulting in thin sound with high background noise. The XSW-D uses digital technology to preserve your signal's dynamics and deliver crisp, clear guitar sound with all the nuances of your performance.
- On stage, timing is crucial, and the XSW-D uses aptX Live codec to deliver an impressive 3.9 ms latency, avoiding any lag during play, keeping you in time.
Easy 2.4 GHz digital wireless system
- Nothing ruins a take more than hearing the weather through your amp. Unlike traditional analogue wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, protecting your signal's integrity from interruptions and dropouts caused by TV channels, radios or other sources.
- Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel to ensure reliable transmission up to 250 feet line of sight.
Licence-free worldwide use
- As the XSW-D system operates in the licence-free 2.4 GHz band, you don't need to worry about local licensing laws, frequency coordination and other technical hassles.
- Simply let the system choose a channel for you and start playing, whether you're working at home or anywhere in the world.
Other features
- Eco-friendly USB rechargeable lithium-ion battery - 1 hour charge to reach 50% battery life
- 5 hours total battery life gives you plenty of playing time
- Easily recharge the battery via USB during use or during breaks throughout the day
- Mute function on transmitter or receiver
- Up to five systems can be used simultaneously in the same environment
- Multiple pairing allows you to quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to a receiver at a time)
|
|
Specifications
|
|
|
System
|
|
|
Frequency range
|
2.400 to 2.483 GHz
|
|
Latency
|
<4 ms with aptX Live codec
|
|
Transmission range
|
250' / 76.2 m (Line of sight)
|
|
Simultaneous unit use
|
Up to 5 systems simultaneously
|
|
Frequency response
|
10 Hz to 18 kHz
|
|
Signal-to-noise ratio
|
≥106 dB
|
|
THD
|
<0.1 %
|
|
Modulation
|
GFSK with TDMA
|
|
Operating temperature
|
-10 to 55° C / 14 to 131° F
|
|
Relative humidity
|
95% (Non-condensing)
|
|
Receiver
|
|
|
Type
|
1/4" plug-in receiver
|
|
Output connector
|
1/4" / 6.3 mm TS, Male, Foldable (90°)
|
|
Audio output level
|
Instrument level output only
|
|
Battery
|
Type: Built-in, USB rechargeable, Lithium-Ion
Battery life: 5 hours
Charging time: 3 hours (typical)
Charge cycles: Up to 1000 cycles
Nominal voltage: 3.7 V
Capacity: 850 mAh
Input voltage: 5.0 V (typical)
Charging temperature: 32 to 140° F / 0 to 60° C
|
|
Dimensions
|
4.8 x 0.9 x 1.1" / 122 x 24 x 28 mm
|
|
Weight
|
Not specified by manufacturer
|
