15.38 CHF Excl. VAT
16.62 CHF Inc. VAT
Sony UTX-M40/K42 - UUWP-D handheld microphone with unidirectional capsule
1018228
4548736106673
Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.
Visuals Price
321.48 CHF
VAT excl.
347.52 CHF Inc. VAT
Manufacturer price 338,40 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

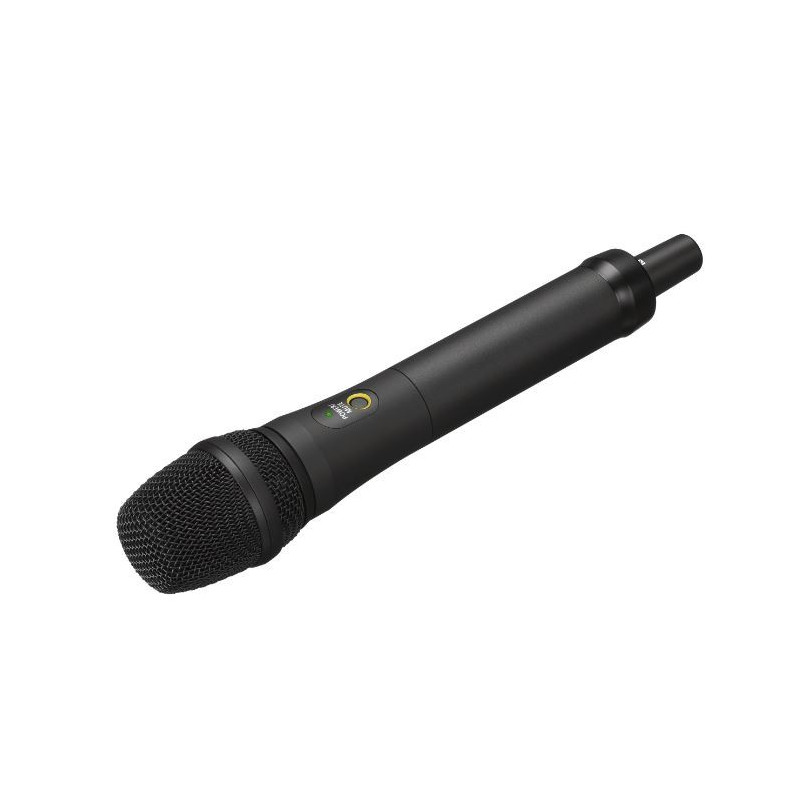

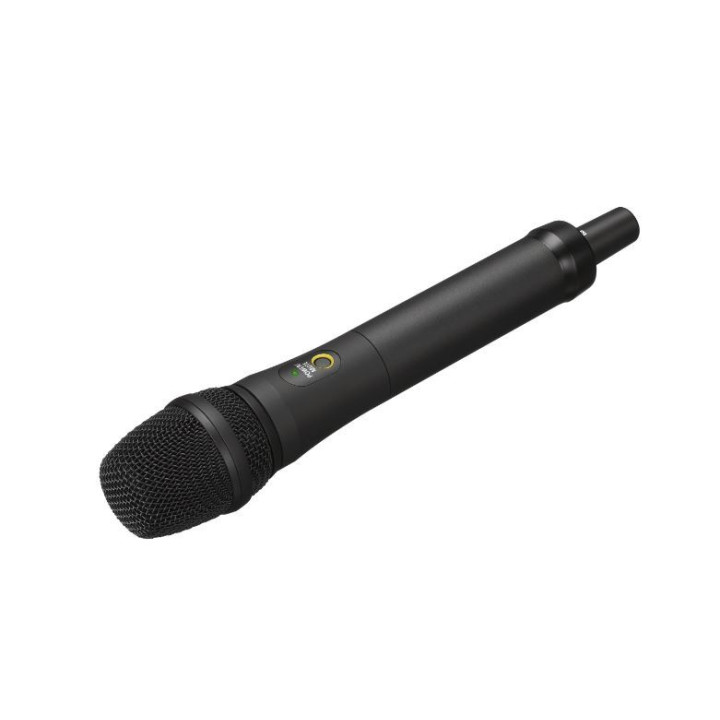

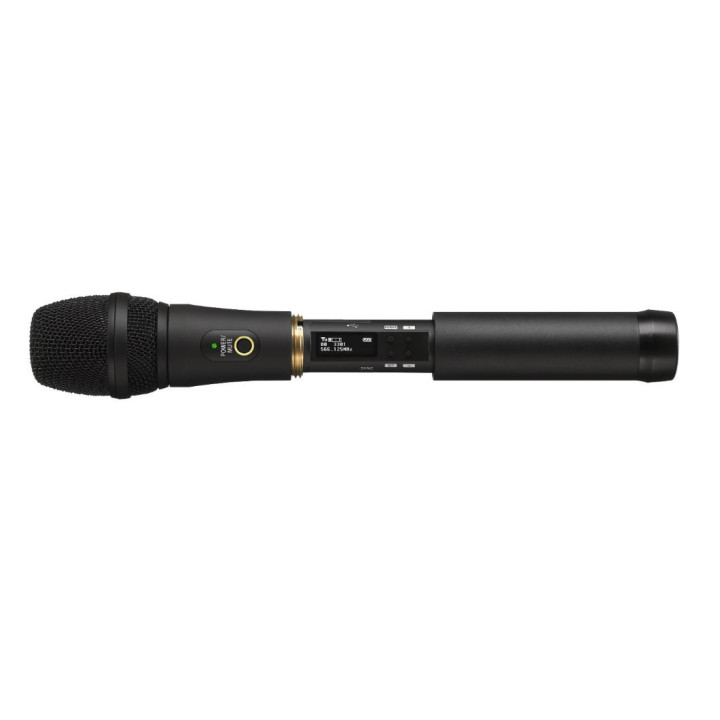

Sony UUWP-D handheld microphone with unidirectional capsule
The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today's content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources.
Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.
- High quality sound with Sony digital audio processing
- NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)
- Interchangeable head for wide choice of microphone capsules
- Auto gain mode volume control
- +15 dB gain volume boost mode for off-mic audio
- Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
- Variable muting function
- Compatibility with Sony WL-800/UWP/UWP-D series
- High visibility OLED display, ideal for indoor/outdoor use
Features
Digital audio processing for high quality sound
Advanced digital audio processing technology by Sony assures high quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.
Fast, easy frequency setting
Sony's uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel setting between transmitter and receiver.
Light, compact design
Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings and remote production. The receiver's compact size and light weight make it an ideal partner for use small camcorders and interchangeable lens digital cameras.
|
|
Specifications |
|
|
Oscillator Type |
Crystal-controlled PLL synthesizer |
|
|
Antenna Type |
1/4 λ wavelength wire antenna |
|
|
Carrier Frequencies |
638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) |
|
|
RF Output Power |
30 mW/5 mW selectable |
|
|
Capsule Type |
Dynamic |
|
|
Directivity |
Uni-directional |
|
|
Reference Audio Input level |
–55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation) |
|
|
Maximum Audio Input Level |
151 dB SPL (21 dB attenuation, using supplied microphone unit) |
|
|
Audio Attenuator Adjustment Range |
0 dB to 21 dB (3 dB steps) |
|
|
Frequency Response |
70 Hz to 18 kHz (Typical) |
|
|
Signal-to-Noise Ratio |
60 dB (–60 dBV, 1 kHz sine wave input)
|
|
|
Distortion |
0.9% or less (–60 dBV, 1 kHz input) |
|
|
Audio Delay |
Approx. 0.35 ms |
|
|
Tone Signal Frequency |
In UWP-D compander mode: 32.382 kHz |
|
|
Display |
OLED |
|
|
Power Requirements |
DC 3.0 V (two LR6/AA size alkaline batteries) |
|
|
Battery life* |
Approx. 8 hours with output power of 30 mW *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F). |
|
|
Operating Temperature |
0 °C to 50 °C (32 °F to 122 °F) |
|
|
Storage/Transport Temperature |
–20 °C to +55 °C (–4 °F to +131 °F) |
