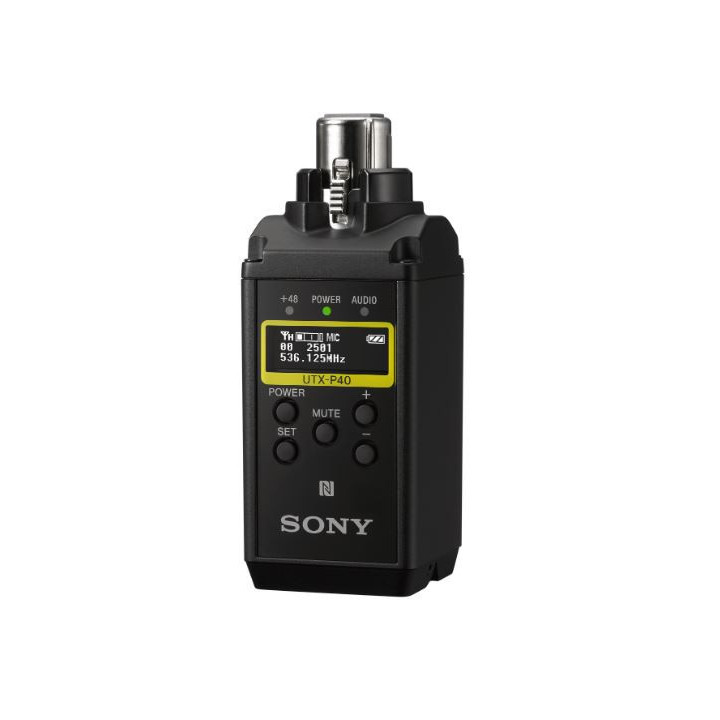

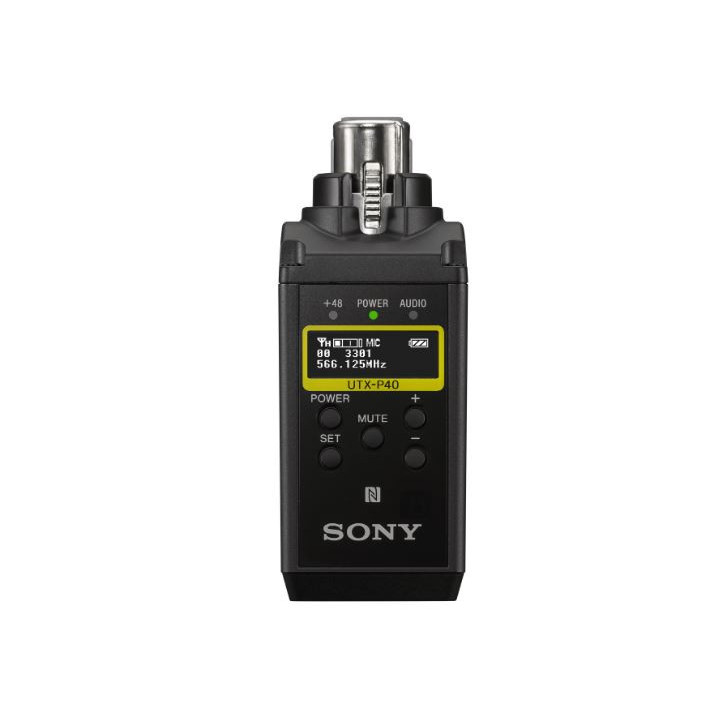

Sony UTX-P40/K42 - UHF SYNTHESIZED TRANSMITTER
1018229
4548736106642
Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.
Visuals Price
329.52 CHF
VAT excl.
356.21 CHF Inc. VAT
Manufacturer price 346,86 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Sony SYNTHESIZED UHF TRANSMITTER
The demand for high-quality sound is increasing as high-resolution content becomes predominant in the video production industry. Today's content creators face the challenge of capturing high-quality audio quickly, reliably and with limited resources.
Offering superb sound quality with digital processing, reliable RF transmission, true dual-diversity reception and user-friendly features, the UWP-D series is an ideal partner for ENG (Electronic News Gathering) and EFP (Electronic Field Production), as well as documentaries and weddings.
- High-quality sound with Sony digital audio processing
- NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D and URX-S03D receivers)
- Volume control in auto gain mode
- +15 dB volume boost mode for non-mic audio
- Line input
- +48V power supply
- Transmitter frequency sent to receiver to pair multiple receivers to one transmitter
- Variable mute function
- Compatibility with Sony WL-800/UWP/UWP-D series
- High visibility OLED display, ideal for indoor/outdoor use
- USB connector for power supply
Features
Digital audio processing for high-quality sound
Sony's advanced digital audio processing technology ensures high-quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital audio recording with many Sony professional camcorders and Alpha interchangeable-lens cameras via the SMAD-P5 MI Multi Interface shoe adapter, bypassing A/D and D/A conversion steps to ensure excellent sound quality.
Quick and easy frequency setting
Sony's unique NFC SYNC feature enables quick and intuitive secure channel setting between transmitter and receiver.
Lightweight and compact design
The system's reduced size and weight allow superior mobility across a wide range of applications, including news gathering, documentaries, weddings and remote production. The receiver's compact size and light weight make it an ideal partner for use with small camcorders and interchangeable-lens digital cameras.
|
|
Specifications |
|
|
Oscillator Type |
Crystal-controlled PLL synthesizer |
|
|
Carrier Frequencies |
638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) |
|
|
RF output power |
30 mW/5 mW selectable |
|
|
Input connector |
XLR-3-11C type (female) |
|
|
Reference audio input level |
–60 dBV (MIC input, GAIN MODE set to NORMAL, attenuation 0 dB) |
|
|
Audio attenuator adjustment range |
0 dB to 48 dB (3 dB steps) |
|
|
Frequency Response |
23 Hz to 18 kHz (Typical) |
|
|
Signal-to-noise ratio |
60 dB (–60 dBV, 1 kHz input) |
|
|
Distortion |
0.9% or less (–60 dBV, 1 kHz input) |
|
|
Audio delay |
Approximately 0.35 ms |
|
|
Tone signal frequency |
In UWP-D compander mode: 32.382 kHz |
|
|
Display |
OLED |
|
|
Power Requirements |
DC 3.0 V (two LR6/AA alkaline batteries) |
|
|
Battery life* |
Approximately 8 hours with 30 mW output power *Battery life has been measured with two Sony LR6/AA alkaline batteries at 25°C (77°F) |
|
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
|
Storage/Transport Temperature |
–20°C to +55°C (–4°F to +131°F) |
|
|
Dimensions |
38 × 98 × 38 mm (1 1/2 × 3 7/8 × 1 1/2 in.) (W / H / D) (including audio input connector) |
|
|
Weight |
Approximately 139 g (4.9 oz) (without batteries) |
