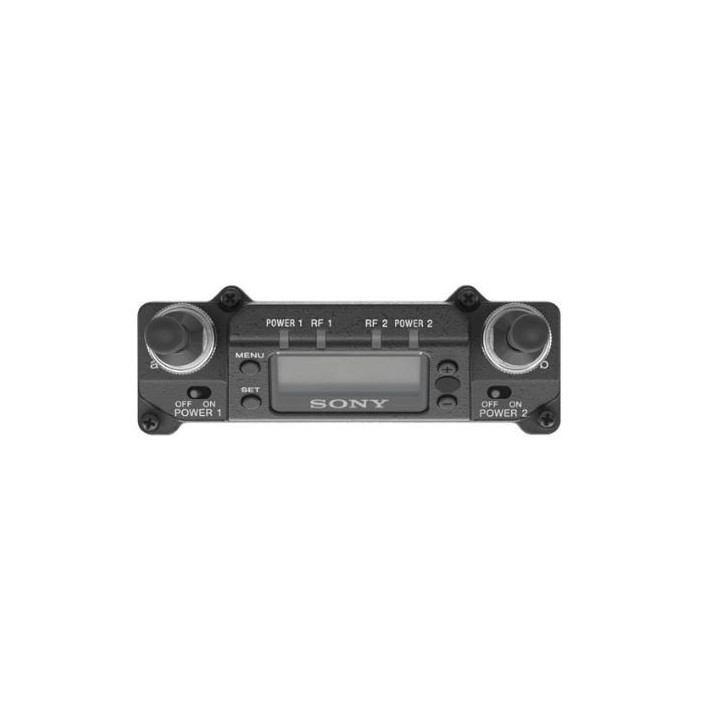

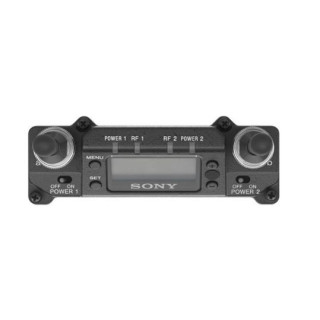

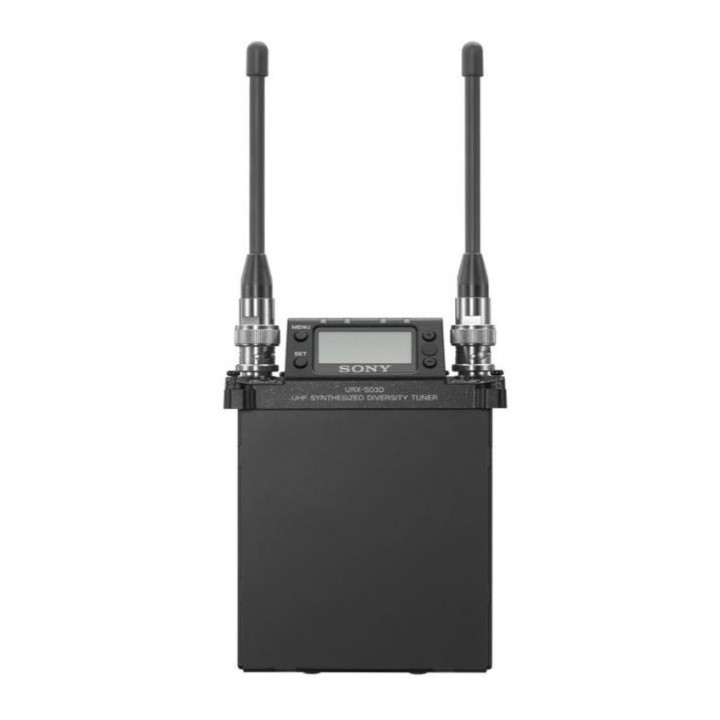

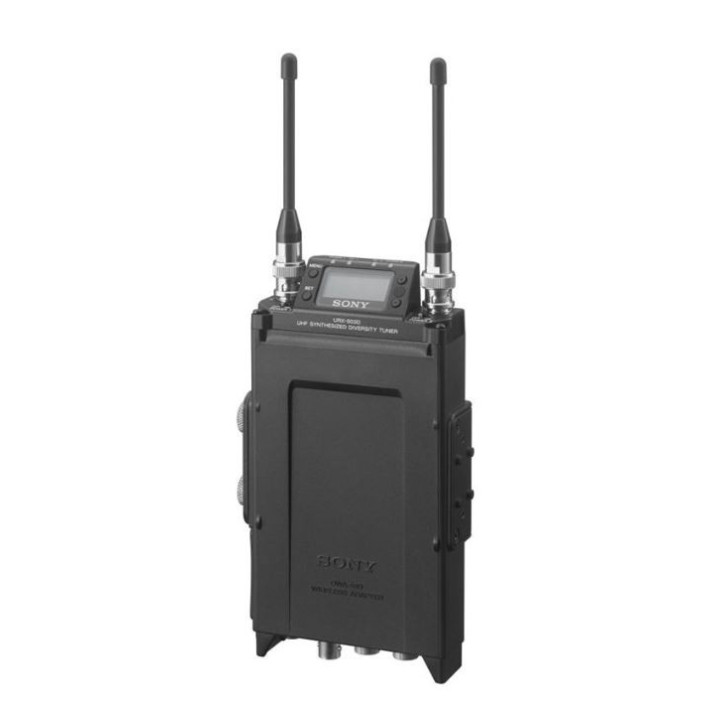

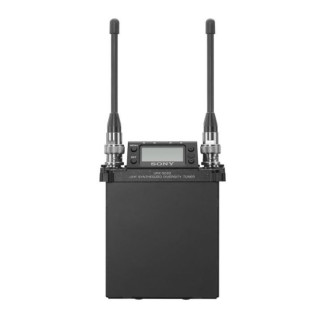

The URX-S03D is the first two-channel portable receiver in the UWP-D Series that fits directly in the slot of Sony XDCAM and HDCAM camcorders.
... learn more
Visuals Price
1,339.91 CHF VAT excl.

1,448.44 CHF Inc. VAT

Manufacturer price 1 410,43 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Sony UWP-D slot-in receiver
The URX-S03D is the first two-channel portable receiver in the UWP-D series that slots directly into Sony XDCam and HDCam camcorder slots. Operating with the UTX-B03HR belt-pack transmitter, the system offers easy channel setting functions, advanced features for stable RF transmission and digital audio processing technology ensuring high sound quality. With advanced use with Sony XDCAM and HDCAM camcorders, it also works perfectly with Sony 800 series and UWP transmitters.
Digital audio processing for high sound quality
Enhances transient response performance between the UWP-D transmitter and receiver, offering impressive natural sound quality compared to conventional analogue wireless systems.
Stable RF transmission
The true diversity reception system ensures highly stable reception from two adjustable receiving antennae, each with their own RF circuits.
Great ease of use with Sony XDCAM and HDCAM camcorders
The system works with a wide range of Sony XDCAM, HDCAM and DVCAM camcorders, including the PXW-X320, PXW-X400 and PXW-X500.
Easy channel setting
Large display, auto channel setting function, USB connection for power supply and line input availability.
Wide frequency coverage with choice of available channels
The wide switching band covers a vast area, with a wide choice of channels available across multiple models – please refer to the product specifications for more information.
Compatible with the following Sony camcorders
- PXW-X320
- PXW-X400
- PDW-850/750
- PXW-X500
- PMW-400/580
- PDW-510/510P
- PDW-530/530P
- PDW-700/740/F800
- PMW-TD300
- PMW-500/350
- PMW-320
- PMW-F5/F55 with CBK-55BK
- HDW-F900R
- HDW-650/680/800P
- MSW-930P
- DSR-400/400P
- DSR-450WS/450WSP




Specifications



Antenna connector

2 x BNC-R, 50 Ohms

Squelch

Level: 15 dBµ / Off (0 dBµ = 1 µV)

Audio output level

-40 dBu (0 dBu = 0.775 Vrms with 1 kHz modulation frequency and ±5.0 kHz frequency deviation)

Accessory connector

1 x D-sub connector (15-pin)

Reception

True diversity method

Oscillator

Crystal-controlled PLL synthesiser

Frequency band

42/51: 638 to 698 MHz

Signal-to-noise ratio

60 dB or more (A-weighted)

Voice delay

0.375 ms

De-emphasis

50 μs

Frequency deviation

±5 kHz

Frequency response

40 Hz to 18 kHz

Distortion

0.9% or less (with 1 kHz modulation frequency and ±5.0 kHz frequency deviation)

Indicators

Power supply 1/2, RF 1/2

Operating temperature

32 to 122°F (0 to 50°C)

Storage temperature

-4 to 131°F (-20 to 55°C)

Supply voltage

7.0 VDC (supplied by camcorder or wireless adapter)

Current consumption

200 mA or less (at 7 VDC)

Dimensions

3.5 x 4.6 x 1.2" / 88.0 x 116.2 x 31.2 mm

Weight

11 oz / 303 g



The URX-S03D is the first two-channel portable receiver in the UWP-D Series that fits directly in the slot of Sony XDCAM and HDCAM camcorders.
