Sennheiser - Bodypack Receiver with IE 4 Earphones

Sennheiser EK-IEM-G4-B - Bodypack Receiver with IE 4 Earphones

192316
4044155262766
Sennheiser EK-IEM-G4-B - Bodypack Receiver with IE 4 Earphones
Sennheiser EK-IEM-G4-B - Bodypack Receiver with IE 4 Earphones
Sennheiser EK-IEM-G4-B - Bodypack Receiver with IE 4 Earphones
Sennheiser EK-IEM-G4-B - Bodypack Receiver with IE 4 Earphones
Stereo pocket receiver. Includes (1) pair of IE4 earphones, frequency range: B (626 - 668 MHz)
... learn more
Visuals Price
403.23 CHF VAT excl.

435.89 CHF Inc. VAT

Manufacturer price 443,11 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

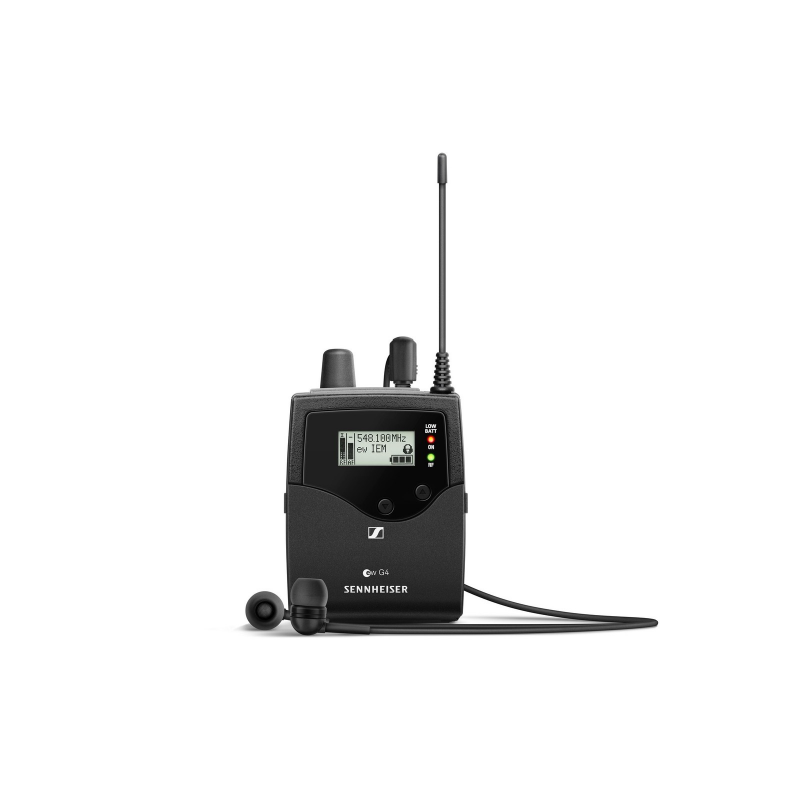

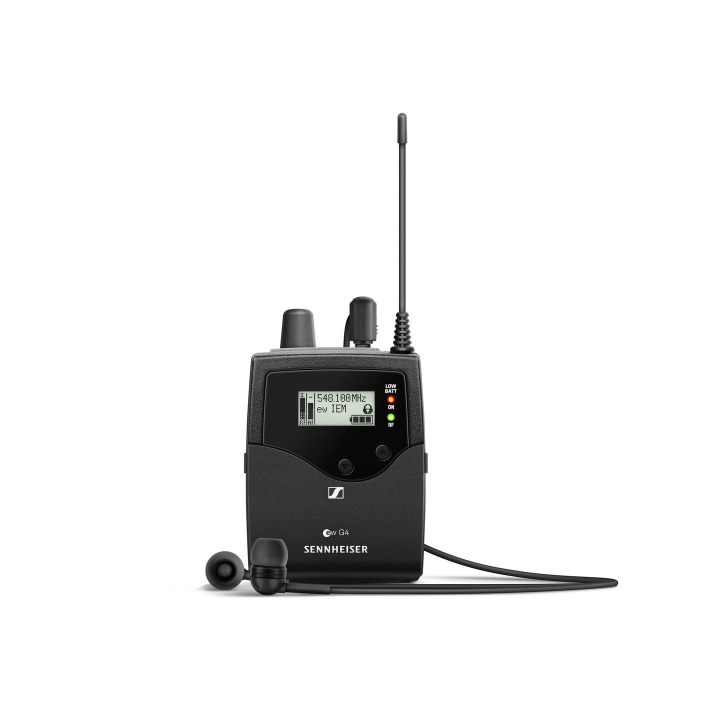

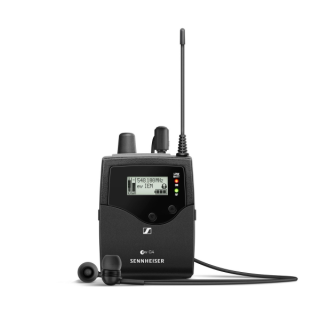

Sennheiser Bodypack Receiver with IE 4 earphones
Robust bodypack receiver offering clarity across the entire frequency spectrum for daily stage use with evolution wireless G4 in-ear monitoring systems.
Features
- Robust bodypack receiver offering clarity across the entire frequency spectrum for daily stage use
- Simple and flexible wireless synchronisation between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for flexible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable within a stable UHF range
- Transmission range: up to 100 metres / 300 feet
- High RF output power (up to 30 mW) according to national regulations
- Frequency range: B (626-668 MHz)




Specifications



Frequency range

B: 626 - 668 MHz

Dimensions

Approximately 82 x 64 x 24 mm

Compander

Sennheiser HDX

THD, total harmonic distortion

≤ 0.9 %

Weight

(batteries included) approximately 125 g

Signal-to-noise ratio

approximately 90 dBA

Bandwidth

up to 42 MHz

Maximum deviation

±48 kHz

Nominal deviation

±24 kHz

Battery life

approximately 4 to 6 hours (depending on volume level)

Modulation

Wideband FM

Power supply

2 AA batteries, 1.5 V or BA 2015 rechargeable battery pack

Current consumption

at nominal voltage: approximately 140 mA

with transmitter switched off: ≤ 25 µA

Adjacent channel rejection

Typically ≥ 65 dB

Audio output power

2 x 100 mW into 32 Ω

Intermodulation attenuation

Typically ≥ 70 dB

Limiter

–18 dB to –6 dB, adjustable in 6 dB steps, can be disabled

Power supply

3 V battery / 2.4 V rechargeable battery

Reception frequency

Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, intermodulation-free, 6 frequency banks with up to 16 programmable channels

RF sensitivity

< 4 μV, typ. 1.6 μV for 52 dBA rms S/N

Squelch

5 to 25 dBµV, adjustable in 2 dB steps

Bass boost

+8 dB at 80 kHz

Temperature range

-10 °C to +55 °C

Reception principle

Adaptive diversity

Blocking

≥ 80 dB



Stereo pocket receiver. Includes (1) pair of IE4 earphones, frequency range: B (626 - 668 MHz)
