Specifications

Wireless system

Modulation

Wideband FM

Frequency ranges

A: 548 - 572 MHz / B: 614 - 638 MHz

Switching bandwidth

Up to 24 MHz

Frequencies

80 factory presets (8 banks of 10 channels each)

Signal-to-noise ratio

103 dBA

THD

0.9%

Temperature range: Operation

0°C to +40°C // Storage: -20°C to +70°C

Transmitter synchronisation

2.4 GHz, low-power OQPSK (active only during synchronisation)

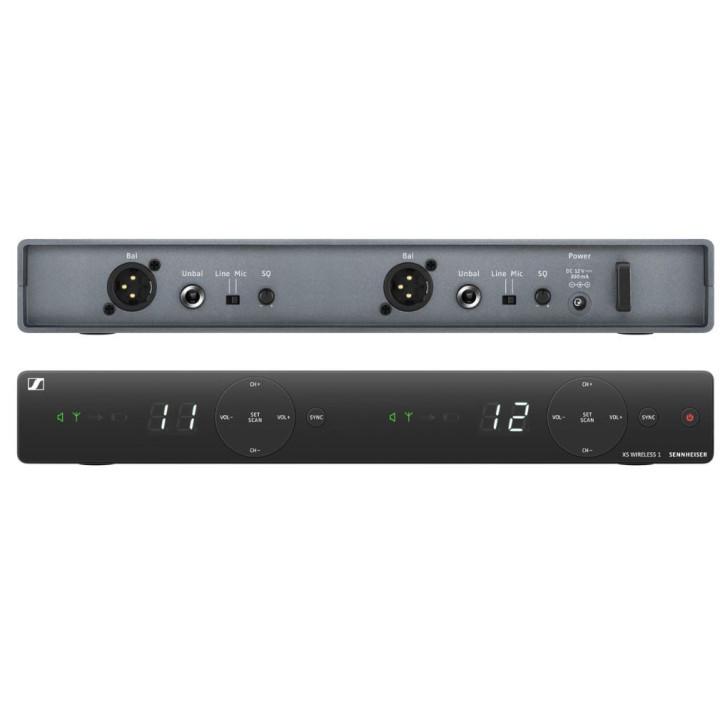

Dual receiver

Receiver principle

Double superheterodyne

Diversity principle

Antenna switching diversity via internal antennas

Sensitivity (at peak deviation)

at 52 dB(A) rms S/N

AF frequency response

50 to 16,000 Hz (–3 dB)

Max. AF output voltage (at peak deviation, 1 kHz AF)

1/4" (6.3 mm) jack (unbalanced): +6 dBu // XLR jack (balanced): +12 dBu

Audio adjustment range

45 dB, adjustable in 5 dB steps

Power supply

12 V DC nom. / 300 mA

Squelch

Adjustable from 3 dBµV to 28 dBµV (combined with pilot signal)

Line/mic level

20 dB, switchable

Housing material

Robust ABS housing

Dimensions (W x H x D)

approx. 320 x 126.5 x 42 mm

Weight

approx. 620 g
