Arri - ARRI Signature Prime 125/T1.8 METRIC

Arri KK.0019109 - ARRI Signature Prime 125/T1.8 METRIC

1004670
Arri KK.0019109 - ARRI Signature Prime 125/T1.8 METRIC
Arri KK.0019109 - ARRI Signature Prime 125/T1.8 METRIC
Arri KK.0019109 - ARRI Signature Prime 125/T1.8 METRIC
Arri KK.0019109 - ARRI Signature Prime 125/T1.8 METRIC
SP125/T1.8M - front diameter: diameter 114mm. Delivered in case
... learn more
Visuals Price
23,406.00 CHF VAT excl.

25,301.89 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

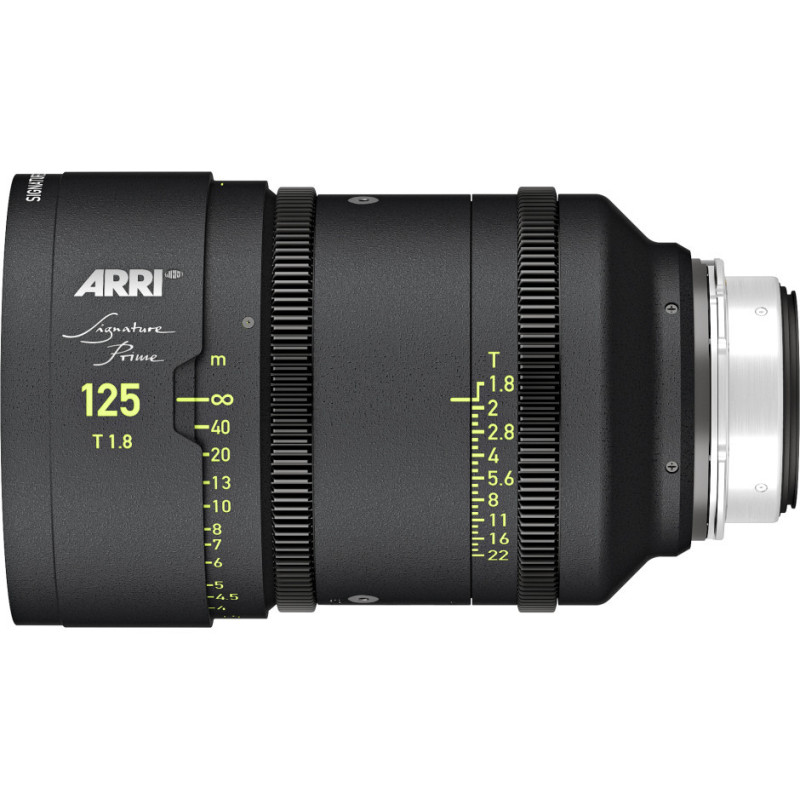

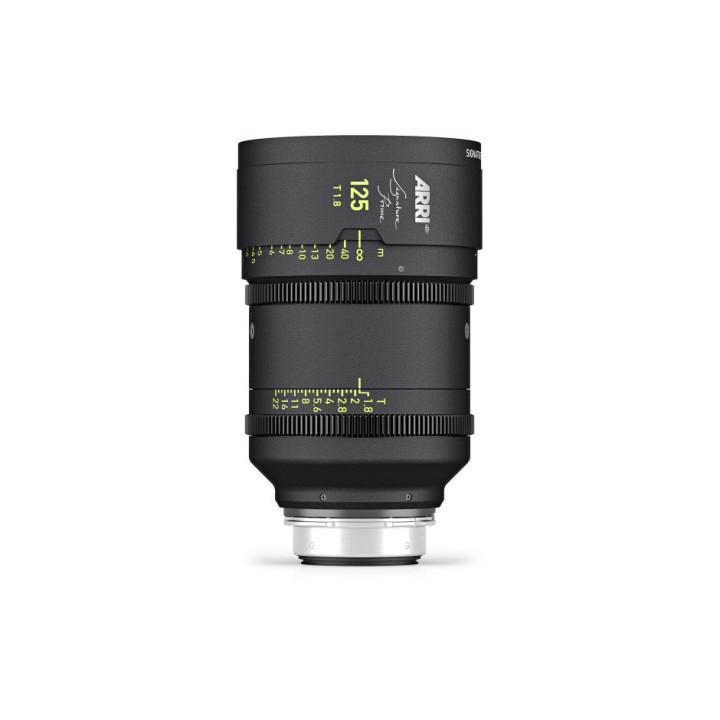

Arri Signature Prime 125/T1.8 Metric
Accompanying the ALEXA LF camera, there are 16 ARRI Signature Prime large format lenses, ranging from 12mm to 280mm and fitted with the ARRI LPL mount. Whilst the Signature Primes showcase cutting-edge optical precision, they have been designed to produce organic and emotionally engaging images, gently softening and texturing the large format with natural skin tones and creamy bokeh. A fast T1.8 aperture facilitates shallow depth of field and the smooth focus transition gives subjects increased presence in the frame.
The ARRI Signature Prime range is the first series of cinema lenses to feature machined magnesium lens barrels, making the optics incredibly lightweight and robust. They are also the first to integrate ARRI's next-generation LDS-2 lens data system, with high data rates and absolute encoders for rapid initialisation. LDS-2 extends the possibilities of lens data and is licensed to other lens and camera manufacturers.
Although the camera, lens mount and lenses are new, full compatibility with existing PL mount lenses and ALEXA accessories is a cornerstone of the system design. A PL to LPL adapter provides backward compatibility with all PL mount lenses, whether Super 35 or full frame. The adapter securely attaches to the LPL lens mount without tools, allowing crews to quickly switch from PL to LPL lenses on set. Directors of photography thus have unlimited lens choice, with complete lens metadata accessible from LDS-2, LDS-1 or /i lenses.
For even more advanced cross-system compatibility, an LPL lens mount can be installed on existing ALEXA, ALEXA Mini and AMIRA cameras. ARRI Signature Primes and other future LPL mount lenses can therefore be used for both Super 35 and large format on productions combining both.




Specifications



Lens Mount

LPL

Minimum focus distance from sensor plane (minimum marked distance)

1 m / 3' 4"

Minimum focus distance from front of lens

0.78 m / 2' 7"

Length from flange

178 mm / 7.01"

Magnification ratio at minimum focus distance (Paraxial)

1:7.0

Entrance pupil position (relative to image plane, towards object)

66.3 mm / 2.61"

Field angle H - V - D for LF Open Gate

16.6° / 11.6° / 20.2°

Front diameter

114 mm / 4.49"

Maximum housing diameter

115 mm / 4.53"

Weight (lens only)

2.3 kg / 5.1lb
SP125/T1.8M - front diameter: diameter 114mm. Delivered in case
