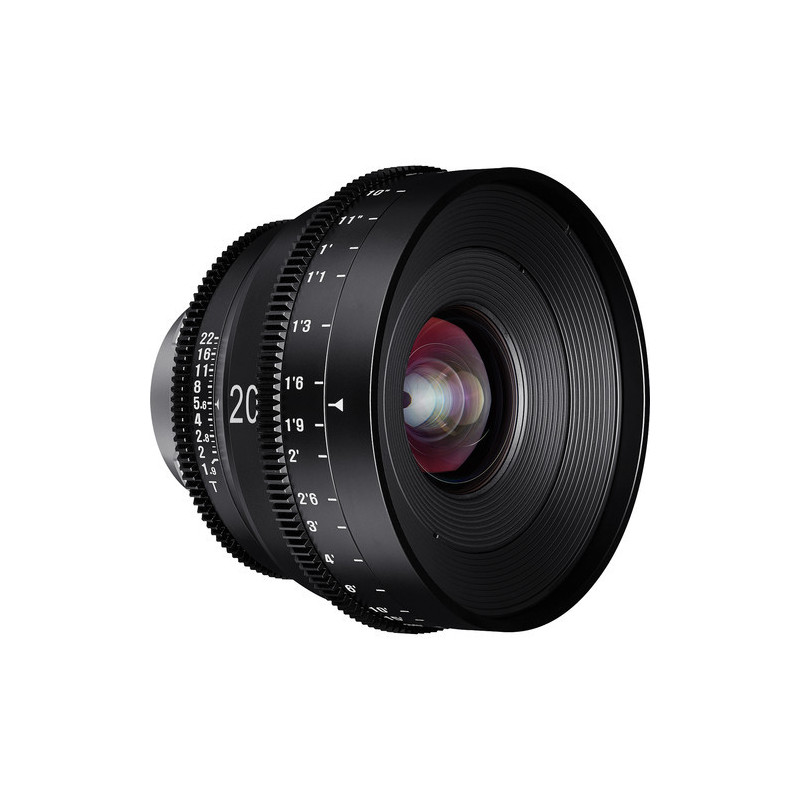

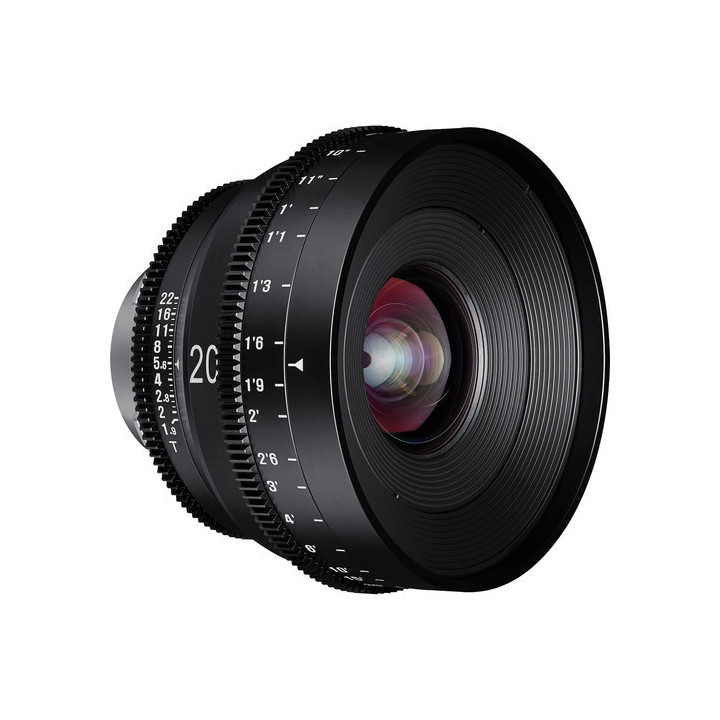

Xeen 20mm T1.9 Lens with Canon EF Mount
The Xeen 20mm T1.9 lens with Canon EF mount is specifically designed for use as a cinema lens. It features an internal focus design, so the lens does not change size during focusing, which minimises the appearance of breathing when changing focus. Each lens in the series is multi-coated for good contrast, flare prevention, and colour matching to a factory standard, allowing you to build a set over time with minimal colour shift. This 20mm lens offers what is considered a wide-angle view on full-frame cameras, and a proportionally tighter angle of view on smaller format cameras.
The lens features bilateral focus scales graduated in feet, with bilateral iris scales. The 11-blade iris provides a rounded aperture for natural highlights and pleasing "bokeh" (background blur). The lens has manual focus and manual iris, with no autofocus or automatic iris capabilities. It incorporates cinema-style focus and iris gears that share the same position across all lenses in the Xeen range. The common 114 mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity, giving you a high degree of precision when adjusting focus. The lens mount can be shimmed, and additional mounts (available separately) can be used with the lens.
Note: Interchangeable mounts can only be fitted by a qualified technician
.- This is a 20mm lens whose image circle covers a full-frame sensor. When mounted on a camera with a full-frame sensor, it provides a wide-angle view.
.- The lens features a metal construction to withstand the rigours of daily production, and comes with a support foot that can help reduce strain on your camera's lens port.
.- Focus and aperture scales on the left and right sides allow your focus puller to work from either side of the lens, without having to rotate the lens in the mount or deal with upside-down numbers.
.- Each lens in the XEEN series shares common positions for the focus and iris rings, which speeds up lens changes as accessories such as follow focus systems or iris motors do not need to be repositioned.
.- The common 114 mm front diameter allows for quick lens changes, as you do not need to change rings or adapters to use the same matte box.
.- The non-rotating front section allows you to use optional quick-release matte boxes.
.- De-clicked iris ring for smooth iris adjustments.
.- A minimum focus distance of 8" allows you to get close to your subject.



Technical Specifications



Focal Length

20 mm

Maximum Aperture

T1.9

Lens Mount

Canon EF

Iris Blades

11

Minimum Focus Distance

7.9" (20.1 cm)

Lens Rotation

Focus Rotation: 200°
Iris: 37.5°

Angle of View

Full Frame (1:1x): 94.82°
Super 35: 75.31°
APS-C (1:1.5x): 70.26°
APS-C (1:1.6x): 66.94°
Micro Four Thirds (1:2x): 56.06°

Dimensions (L x W)

4.6 x 3.8" (117.6 x 95.3 mm)

Weight

2.23 lb (1010 g)
