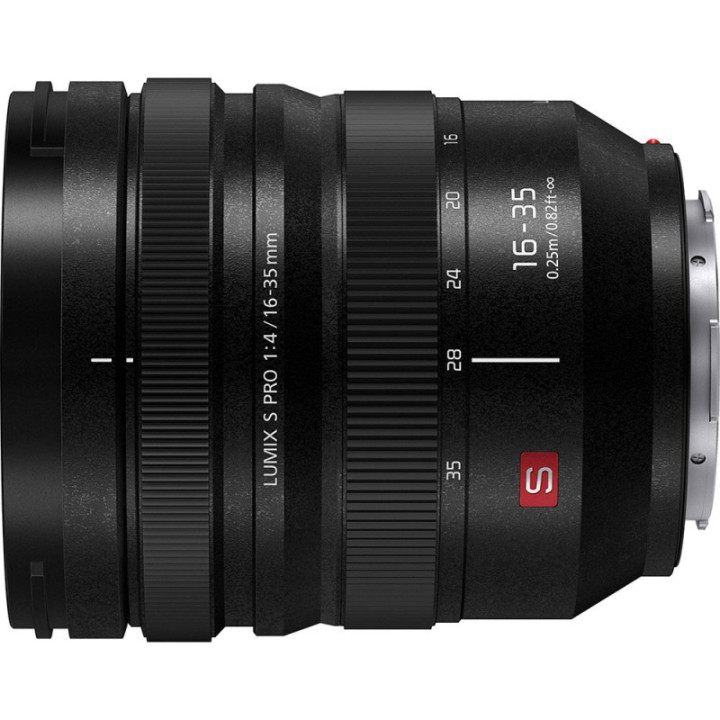

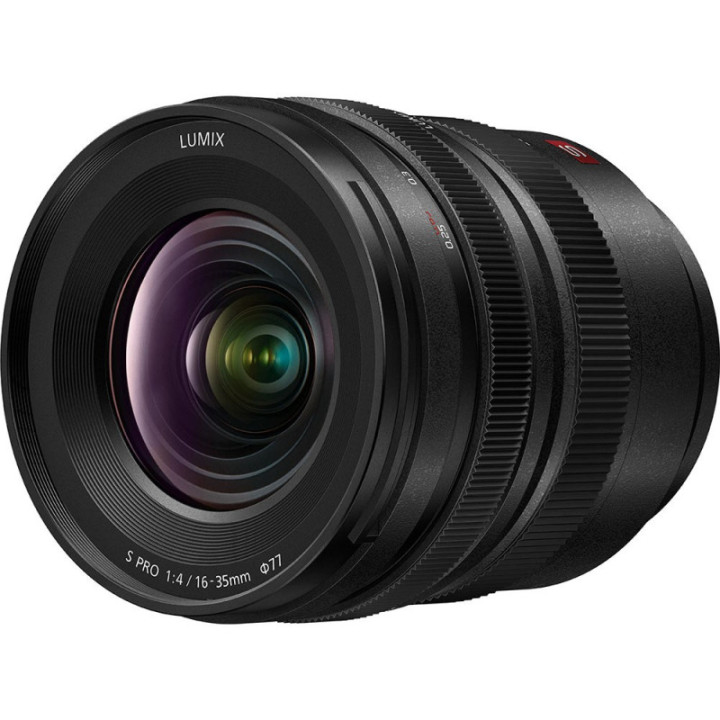

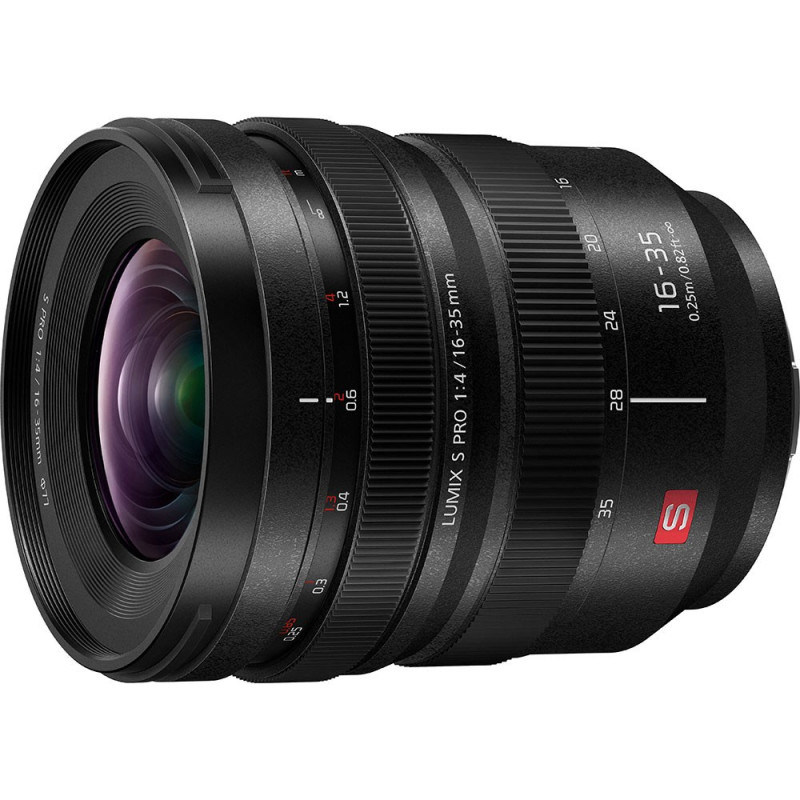

Panasonic - Lumix S 16-35mm F4

Panasonic S-R1635E - Lumix S 16-35mm F4

1020337
5025232910274
Panasonic S-R1635E - Lumix S 16-35mm F4
Panasonic S-R1635E - Lumix S 16-35mm F4
Panasonic S-R1635E - Lumix S 16-35mm F4
Panasonic S-R1635E - Lumix S 16-35mm F4
Panasonic S-R1635E - Lumix S 16-35mm F4
Panasonic S-R1635E - Lumix S 16-35mm F4
The LUMIX S PRO 16-35mm F4 extends the Panasonic S focal range in the wide-angle range. The versatile zoom includes super wide-angle to classic reportage focal lengths. Both photos and videos benefit from its high imaging performance across the entire focal length range. A linear motor with two magnets, which is very powerful despite its compact design, drives the AF focusing element.
... learn more
Visuals Price
1,307.07 CHF VAT excl.

1,412.94 CHF Inc. VAT

Manufacturer price 1 306,60 CHF VAT excluded
Made to order

PANASONIC LUMIX S 16-35MM F4
The new Panasonic Lumix S PRO 16-35mm f/4 (S-R1635E) is the latest addition to the growing range of full-frame L-mount lenses for the LUMIX S series of mirrorless digital cameras. An ultra-wide-angle zoom specially designed for Leica-L system cameras such as the S1, S1R and S1H. Characterised by its constant f/4 maximum aperture and enhanced optical design. It incorporates multiple aspherical, UHR and ED elements which, combined, are optimised to deliver well-corrected images with high sharpness and accurate colour rendering. Complementing the optics, a dual focus system, which uses both a linear motor and a stepper motor, provides particularly fast and precise focusing performance. In addition, this 16-35mm L-mount lens features a weather-sealed design for use in challenging conditions. Filter size: 77mm
Optimised for professional use, the Panasonic Pro 16-35mm features a splash, dust and freeze resistant design, highly advantageous for working in challenging weather conditions, even down to -10°C.
Features
- Wide-angle zoom for full-frame mirrorless cameras with L-mount.
- Constant maximum aperture of f/4 throughout the zoom range.
- Three aspherical elements and one ultra-high refractive index element to minimise distortion and spherical aberrations. An extra-low dispersion element significantly reduces chromatic aberrations for a high level of clarity and colour reproduction.
- Excellent edge-to-edge sharpness and minimal vignetting.
- Fast and precise focusing performance.
- Splash, dust and freeze resistant design.
- Rounded nine-blade aperture creating a pleasing bokeh effect.




Specifications



Optical construction

12 elements in 9 groups (3 aspherical lenses, 1 ED lens, 1 UHR lens)

Mount

L-Mount

Optical image stabiliser

No

Focal length

f=16-35mm

Diaphragm type

9 aperture blades / Circular diaphragm

Maximum aperture

F4

Minimum aperture

F22

Minimum focusing distance

0.25m / 0.82ft

Maximum magnification

Approximately 0.23x

Diagonal angle of view

107° (Wide angle) - 63° (Telephoto)

Dust and splash resistant

Yes*

Recommended operating temperature

-10°C to 40°C (14°F to 104°F)

Filter size

φ77mm

Maximum diameter

φ85mm / 3.34 inches

Total length

Approximately 99.6mm / 3.92 inches (from lens tip to mount base)

Weight

Approximately 500g / 17.63oz (without lens cap, rear cap and lens hood)



The LUMIX S PRO 16-35mm F4 extends the Panasonic S focal range in the wide-angle range. The versatile zoom includes super wide-angle to classic reportage focal lengths. Both photos and videos benefit from its high imaging performance across the entire focal length range. A linear motor with two magnets, which is very powerful despite its compact design, drives the AF focusing element.
