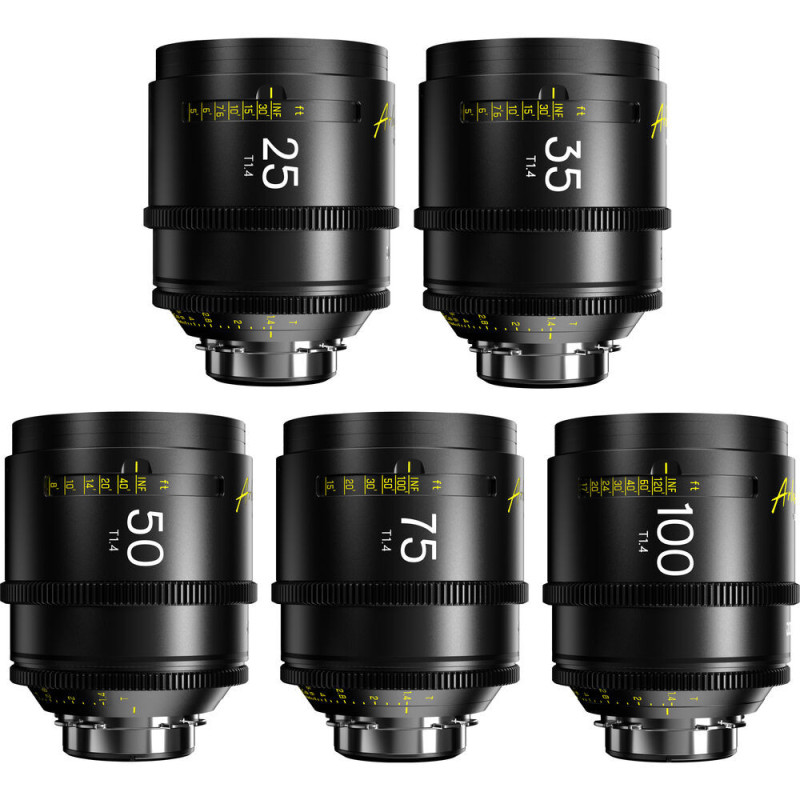

DZOFilm - Arles 5-Lens Kit 25/35/50/75/100mm T1.4 FF/VV Prime Cine Lens for PL (metric)
DZOFilm DZO-SAP5A25MPL - Arles 5-Lens Kit 25/35/50/75/100mm T1.4 FF/VV Prime Cine Lens for PL (metric)
1072234
The DZOFILM Arles FF/VV Prime Cine Lens series includes a range of focal lengths (25mm, 35mm, 50mm, 75mm and 100mm) designed for Full Frame and VistaVision cameras.
Visuals Price
7,112.85 CHF
VAT excl.
7,688.99 CHF Inc. VAT
Manufacturer price 7 110,30 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
|
|
Specifications |
|
| Specifications of the DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens (ARRI PL) | ||
| Key features | ||
| Focal length | 25mm | |
| Maximum aperture | T1.4 | |
| Lens mount | ARRI PL | |
| Lens coverage format | Full frame | |
| Filter thread | 86 mm | |
| Image stabilisation | No | |
| Maximum aperture | T1.4 | |
| Minimum aperture | T22 | |
| Lens mount | ARRI PL | |
| Lens coverage format | Full frame | |
| Image circle | 46.5 mm | |
| Angle of view | Full frame Horizontal: 80.36° Vertical: 47.28° Diagonal: 87.44° |
|
| Focus scales | Imperial | |
| Optical construction | 14 elements in 12 groups | |
| Filter thread | 86 mm | |
| Minimum focus distance | From sensor: 13.78" / 0.35 m | |
| Number of iris blades | 16 | |
| Image stabilisation | No | |
| Gear standard | Focus: 0.8 MOD Iris: 0.8 MOD |
|
| Gear rotation | Focus 270° (Manual only) Iris 77° (Manual only) |
|
| Diameter | 3.7" / 95 mm | |
| Length | 4.8" / 121 mm | |
| Weight | 1.49 kg / 1490 g | |
| Specifications of the DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL) | ||
| Key features | ||
| Focal length | 35mm | |
| Maximum aperture | T1.4 | |
| Lens mount | ARRI PL | |
| Lens coverage format | Full frame | |
| Filter thread | 86 mm | |
| Image stabilisation | No | |
| Maximum aperture | T1.4 | |
| Minimum aperture | T22 | |
| Lens mount | ARRI PL | |
| Lens coverage format | Full frame | |
| Image circle | 46.5 mm | |
| Angle of view | Full frame Horizontal: 61.1° Vertical: 34.23° Diagonal: 67.15° |
|
| Focus scales | Imperial | |
| Optical construction | 14 elements in 12 groups | |
| Filter thread | 86 mm | |
| Minimum focus distance | From sensor: 13.78" / 0.35 m | |
| Number of iris blades | 16 | |
| Image stabilisation | No | |
| Gear standard | Focus: 0.8 MOD Iris: 0.8 MOD |
|
| Gear rotation | Focus 270° (Manual only) Iris 80° (Manual only) |
|
| Coatings | Multi-layer | |
| Environmental protection | No | |
| Diameter | 3.7" / 95 mm | |
| Length | 4.8" / 121 mm | |
| Weight | 1.65 kg / 1650 g | |
| Packaging information | ||
| Package weight | 2.60 kg | |
| Package dimensions (L x W x H) | 12.9 x 7 x 6.9" | |
| Specifications of the DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL) | ||
| Key features | ||
| Focal length | 50mm | |
| Maximum aperture | T1.4 | |
| Lens mount | ARRI PL | |
| Lens coverage format | Full frame | |
| Filter thread | 86 mm | |
| Image stabilisation | No | |
| Maximum aperture | T1.4 | |
| Minimum aperture | T22 | |
| Lens mount | ARRI PL | |
| Lens coverage format | Full frame | |
| Image circle | 46.5 mm | |
| Angle of view | Full frame Horizontal: 45.17° Vertical: 24.61° Diagonal: 50.23° |
|
| Focus scales | Imperial | |
| Optical construction | 13 elements in 9 groups | |
| Filter thread | 86 mm | |
| Minimum focus distance | From sensor: 19.7" / 0.5 m | |
| Number of iris blades | 16 | |
| Image stabilisation | No | |
| Gear standard | Focus: 0.8 MOD Iris: 0.8 MOD |
|
| Gear rotation | Focus 270° (Manual only) Iris 80° (Manual only) |
|
| Coatings | Multi-layer | |
| Environmental protection | No | |
| Diameter | 3.7" / 95 mm | |
| Length | 4.8" / 121 mm | |
| Weight | 1.68 kg / 1688 g | |
| Packaging information | ||
| Package weight | 2.66 kg | |
| Package dimensions (L x W x H) | 12.9 x 6.9 x 6.8" | |
| Specifications of the DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL) | ||
| Key features | ||
| Focal length | 75mm | |
| Maximum aperture | T1.4 | |
| Lens mount | ARRI PL | |
| Lens coverage format | Full frame | |
| Filter thread | 86 mm | |
| Image stabilisation | No | |
| Maximum aperture | T1.4 | |
| Minimum aperture | T22 | |
| Lens mount | ARRI PL | |
| Lens coverage format | Full frame | |
| Image circle | 46.5 mm | |
| Angle of view | Full frame Horizontal: 30.45° Vertical: 16.35° Diagonal: 34.1° |
|
| Focus scales | Imperial | |
| Optical construction | 13 elements in 9 groups | |
| Filter thread | 86 mm | |
| Minimum focus distance | From sensor: 2.46' / 0.75 m | |
| Number of iris blades | 16 | |
| Image stabilisation | No | |
| Gear standard | Focus: 0.8 MOD Iris: 0.8 MOD |
|
| Gear rotation | Focus 270° (Manual only) Iris 82° (Manual only) |
|
| Coatings | Multi-layer | |
| Environmental protection | No | |
| Diameter | 3.7" / 95 mm | |
| Length | 4.8" / 121 mm | |
| Weight | 1.66 kg / 1662 g | |
| Packaging information | ||
| Package weight | 2.63 kg | |
| Package dimensions (L x W x H) | 12.9 x 6.7 x 6.6" | |
| Specifications of the DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL) | ||
| Key features | ||
| Focal length | 100mm | |
| Maximum aperture | T1.4 | |
| Lens mount | ARRI PL | |
| Lens coverage format | Full frame | |
| Filter thread | 86 mm | |
| Image stabilisation | No | |
| Maximum aperture | T1.4 | |
| Minimum aperture | T22 | |
| Lens mount | ARRI PL | |
| Lens coverage format | Full frame | |
| Image circle | 46.5 mm | |
| Angle of view | Full frame Horizontal: 23.12° Vertical: 12.34° Diagonal: 25.96° |
|
| Focus scales | Imperial | |
| Optical construction | 13 elements in 8 groups | |
| Filter thread | 86 mm | |
| Minimum focus distance | From sensor: 3.0' / 0.9 m | |
| Number of iris blades | 16 | |
| Image stabilisation | No | |
| Gear standard | Focus: 0.8 MOD Iris: 0.8 MOD |
|
| Gear rotation | Focus 270° (Manual only) Iris 90° (Manual only) |
|
| Coatings | Multi-layer | |
| Environmental protection | No | |
| Diameter | 3.7" / 95 mm | |
| Length | 4.8" / 121 mm | |
| Weight | 1.81 kg / 1830 g | |
| Packaging information | ||
| Package weight | 2.80 kg | |
| Package dimensions (L x W x H) | 12.9 x 7 x 6.6" | |
The DZOFILM Arles FF/VV Prime Cine Lens series includes a range of focal lengths (25mm, 35mm, 50mm, 75mm and 100mm) designed for Full Frame and VistaVision cameras.
