Blueshape - 8-Battery UN Certified Flight Case

Blueshape BX8 - 8-Battery UN Certified Flight Case

190898
Blueshape BX8 - 8-Battery UN Certified Flight Case
Blueshape BX8 - 8-Battery UN Certified Flight Case
Blueshape BX8 - 8-Battery UN Certified Flight Case
Blueshape BX8 - 8-Battery UN Certified Flight Case
Blueshape BX8 - 8-Battery UN Certified Flight Case
Blueshape BX8 - 8-Battery UN Certified Flight Case
Blueshape BX8 - 8-Battery UN Certified Flight Case
Blueshape BX8 - 8-Battery UN Certified Flight Case
The case is tested and certified to carry up to 8 batteries of the above models. Combinations of models is permissible
... learn more
Visuals Price
244.40 CHF VAT excl.

264.20 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

BLUESHAPE BX8 UN-certified transport case for 8 lithium-ion batteries

The BLUESHAPE BX8 UN-certified transport case for 8 lithium-ion batteries is certified and approved to transport up to eight batteries from the GRANITE MINI series (BV095HDmini, BV140HDmini, BG095HDmini and BG140HDmini). Equipped with robust closures and reinforced corners, it ensures safety when transporting or shipping lithium-ion batteries over 100Wh.

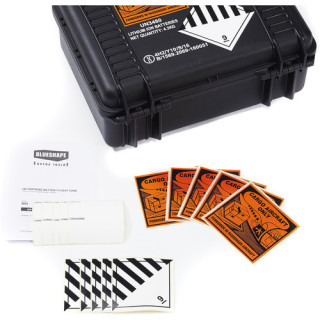

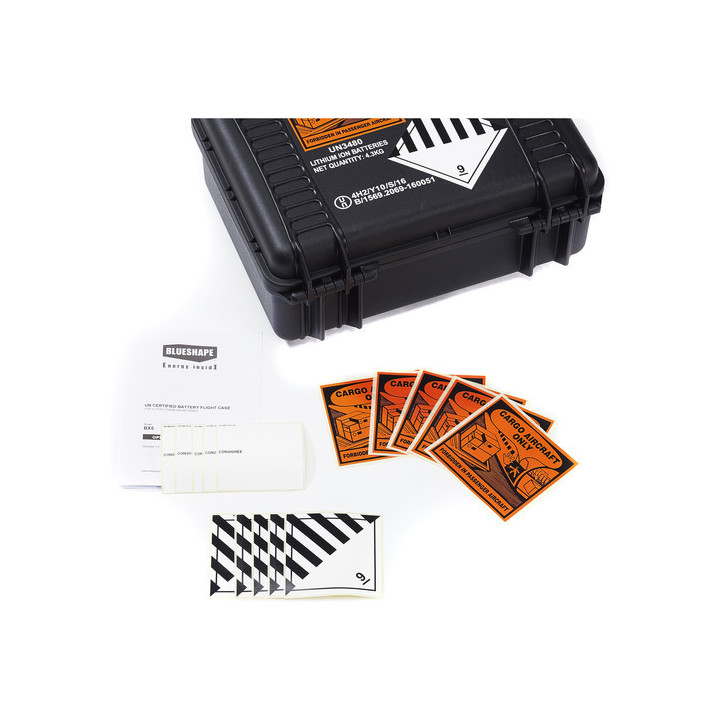

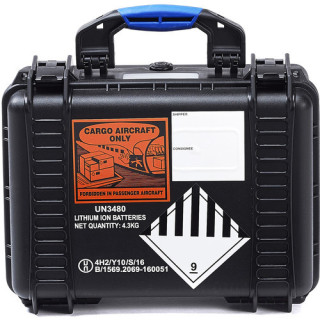

The BX8 case features a shock-resistant outer shell and protective foam interior. Made from hydrophobic acrylic ePTPE, the purge valve located under the case handle automatically adjusts to temperature changes. BLUESHAPE's unique approval number and UN3480 designation are printed on the cases, whilst other mandatory markings are provided in the packaging as robust stickers that the user can apply and remove as required.

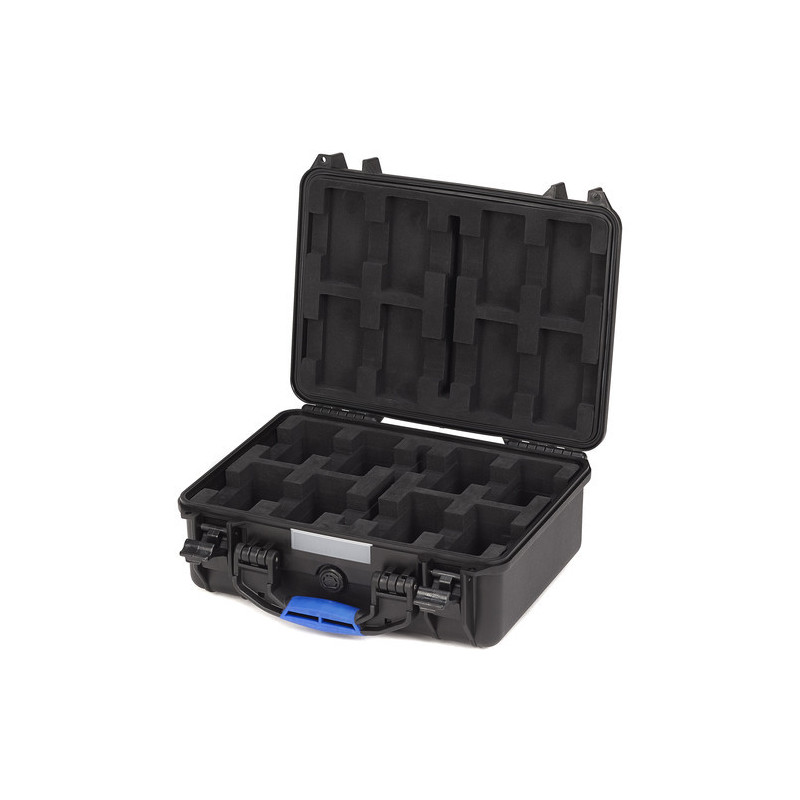

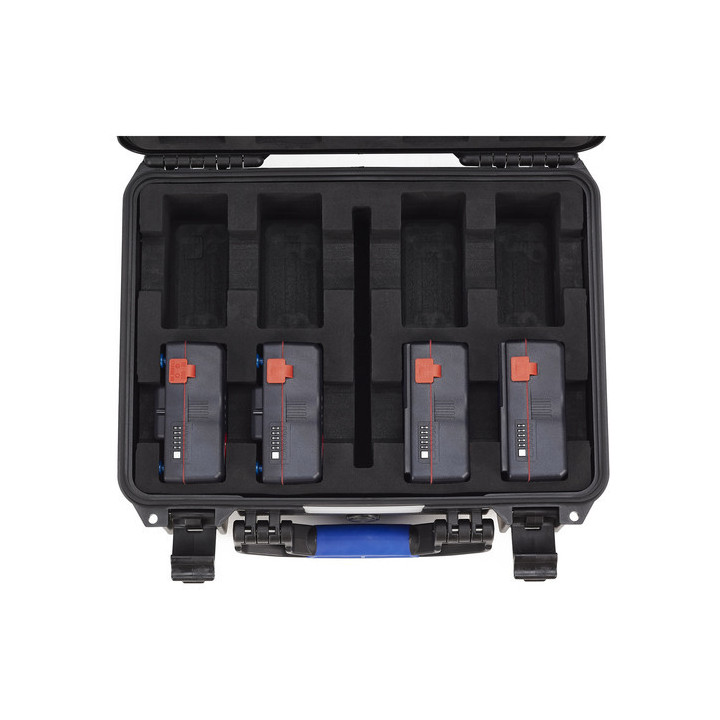

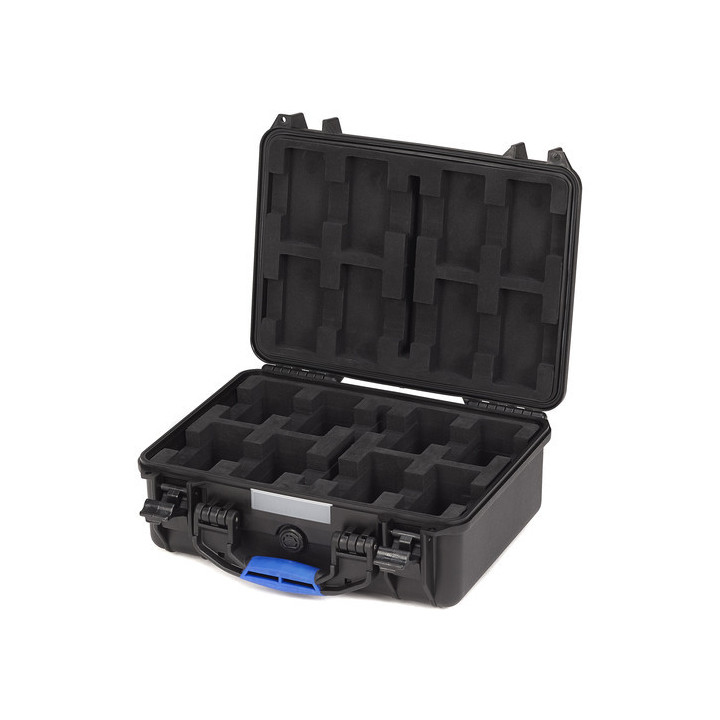

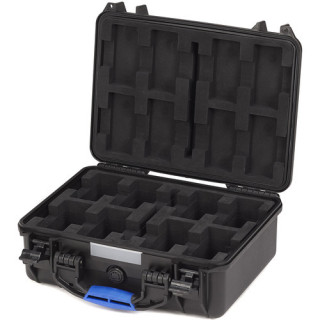

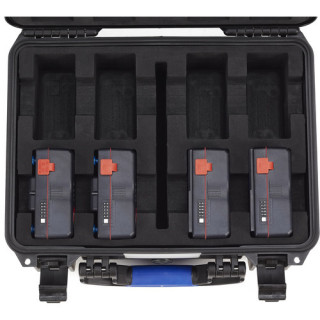

- Eight preformed internal battery compartments
- Compartments for V-lock batteries and mini 3-pin lithium-ion batteries
- Interior foam in flame-retardant material (PE-X-40 Kg/m3)
- Document insert
- 2-level waterproof closure system with O-ring to protect batteries
- Case profile with neoprene O-ring for watertight closure
- IATA compliant for transport of Li-Ion batteries UN3480 according to packing instructions 965 1A or 965 1B
- UN-part 6, IMDG-part 6, ICAO-part 6, ADR, RID-part 6 regulations
- Maximum approved gross weight of 22 lb for transport
- Lightweight design with IP67 waterproof housing



Specifications





Transport options

Top handle



Closure type

Latch



Materials

Not specified by the manufacturer



Interior contents

Custom foam



External dimensions (L x W x H)

16.0 x 12.5 x 6.7" / 406.0 x 318.0 x 170.0 mm



Internal dimensions (L x W x H)

14.9 x 10.4 x 5.5" / 379.0 x 263.0 x 139.0 mm



Waterproof

Yes



Protection rating

IP67



MIL certification

Not specified by the manufacturer



Storage temperature

-40 to 176°F / -40 to 80°C



Weight

5.7 lb / 2.59 kg



The case is tested and certified to carry up to 8 batteries of the above models. Combinations of models is permissible
