Arri - Orbiter without Yoke

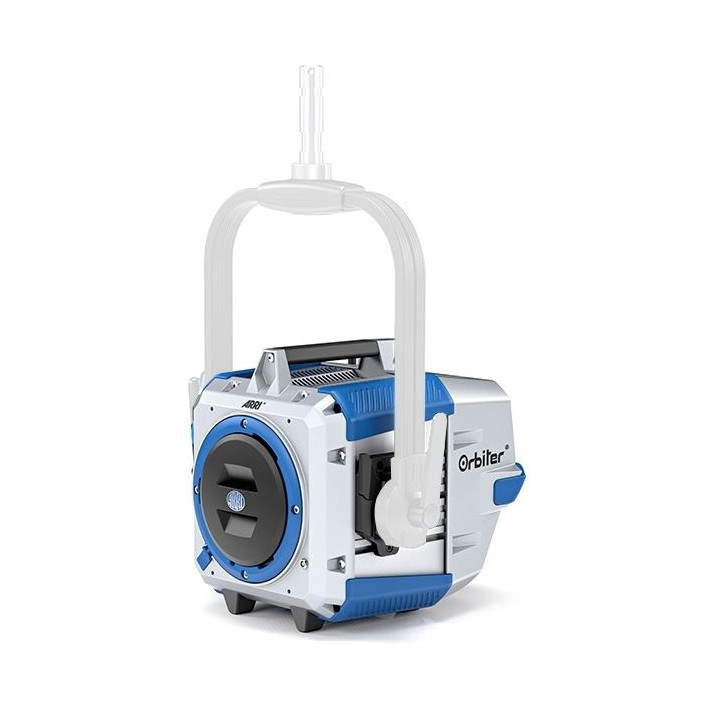

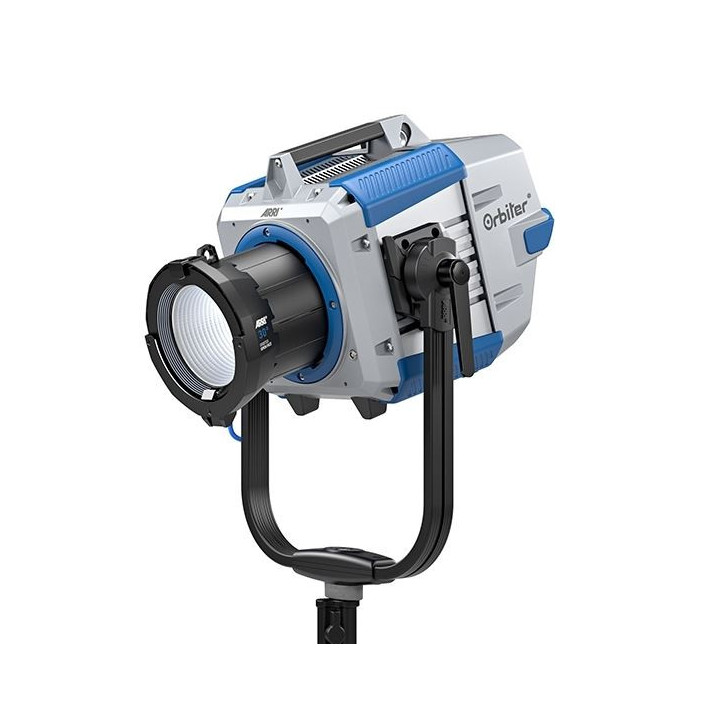

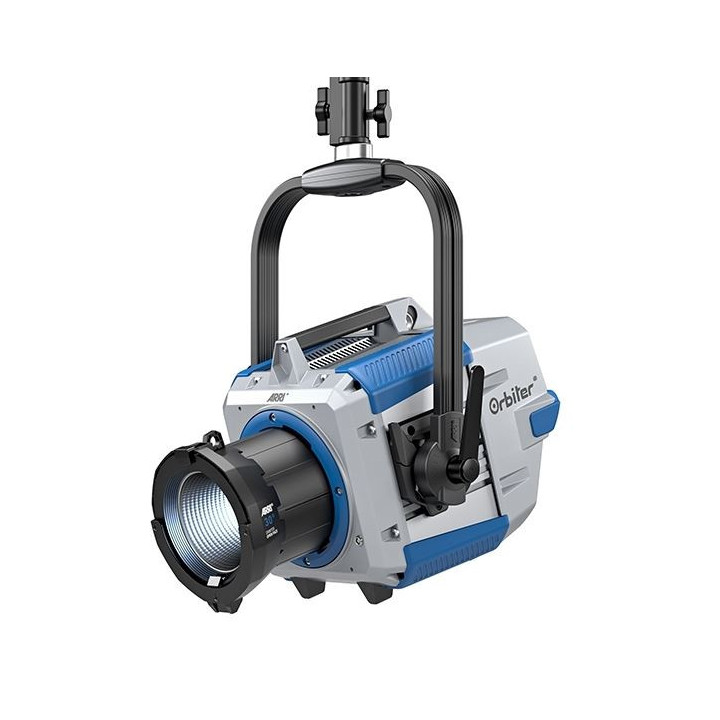

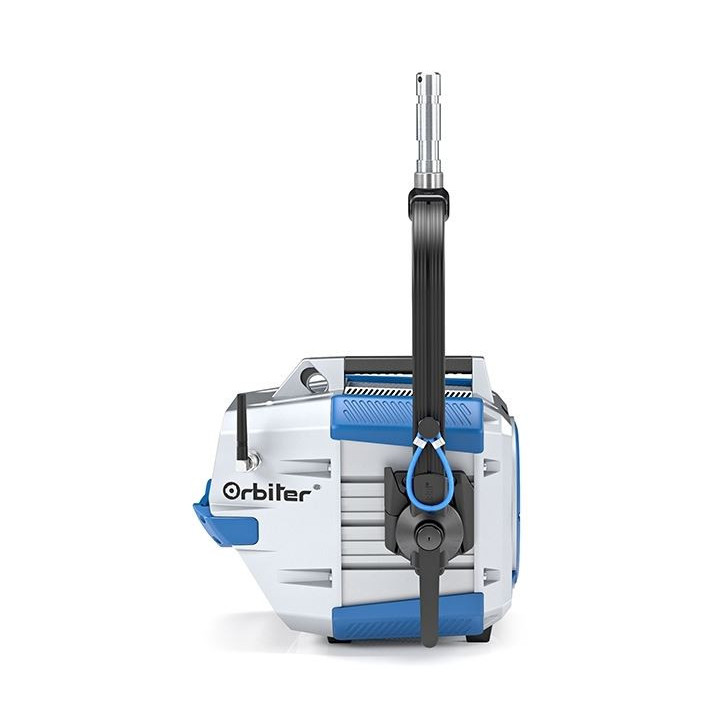

Arri L1.0033520 - Orbiter without Yoke
1023986
Visuals Price
4,500.00 CHF
VAT excl.
4,864.50 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Arri Orbiter without yoke
Launch a wide spectrum of brightness and color into your studio with the ARRI Orbiter blue/silver LED light without yoke, lens and cable, a tunable color lighting system with a powerful color engine and versatile, interchangeable optics. Featuring a processor four times faster than the SkyPanel, ARRI's 190-LED Spectra system offers a wide range of color features allowing you to create an enormous range of colors through its six-color light engine including red, green, blue, amber, cyan, and lime LEDs. With a high CRI rating of 98 and TLCI of 95, it offers a color temperature range of 2000 to 20,000 K to adapt to almost any lighting situation, and it also features 100 to 0% dimming with continuous and smooth adjustment. The light is also equipped with multiple sensors, including a smart color sensor mode to detect ambient light and adjust its output for fine color accuracy, a 3-axis accelerometer that detects pan, tilt, and roll movements, an ambient light sensor to keep your screen readable, heat sensors to keep the light cool, and even a magnetometer to orient your light in its geography. The Orbiter features a highly portable design that can change its optics in the blink of an eye using ARRI's Quick Lighting Mount (QLM), a bayonet-style connection similar to a camera lens mount. Available optics include 15, 30, and 60° open face optics that produce a directional beam; 15, 25, and 35° projection optics that produce a sharp, focused beam with uniformly distributed color; and small, medium, and large domes that provide a large area of soft light. The light can also be used with light banks, barndoors, honeycombs, and other light-shaping accessories available separately with the appropriate adapter. Using ARRI's Lighting Operating System (LiOS), you can control all color modes, effects, and lighting grids directly from the built-in control panel. LiOS offers eight color modes such as CCT, HSO, RGBACL, gel selection, X/Y coordinates, source matching, effects, and a custom mode that allows you to save over 240 favorites that can be applied to a DMX or interface. It also has three operational modes - high color rendering, high output, and low noise - for your preferred performance mode. Interfaces include 5-pin DMX input and output, two LAN ports, two USB Type-A ports, one USB Type-C port, and an SD slot for future upgrades. It also has a sync input for future applications that will sync with your camera. The light is weather resistant and can withstand dust and water splashes. Its redesigned mounting points secure an optional yoke for positioning with +/-90° tilt, and the yoke features a standard 1 1/8" Junior pin mounting point. Orbiter Option Orbiter models include a version without optics; small, medium, and large domes; 15, 30, and 60° open face versions; and 15, 25, and 35° projection versions. ARRI offers a range of open face and projection optics (lens housings), domes, light boxes, snoots, and barndoors. The interchangeable optics attach quickly and easily to the front of the light using the new QLM (quick lighting mount) system, which works like a giant camera lens mount. Powerful Color Inside each Orbiter is the Spectra light engine with a processor four times faster than ARRI's SkyPanel series and 125 times more memory, with plenty of room for future function updates. To produce extra-fine full color adjustment, the light engine adds amber, cyan, and lime to standard red, green, and blue LED colors in its 190 LED array. Capable of creating hard shadows with defined edges, the Orbiter's engine is 76 times smaller than an ARRI L10 Fresnel but has higher output while consuming the same amount of power. LiOS (Light Operating System) Building on features first introduced with the SkyPanel, ARRI's LiOS system also offers simplified DMX mode, over 240 presets, optics recognition, optimal performance modes, and multilingual support for worldwide use. Eight different color modes include CCT, HSI, individual color, x/y coordinates, gel, source, matching, and an ambient color sensor. Complete Sensor Suite The Orbiter features a built-in sensor suite with an ambient color sensor that reproduces color and intensity changes in your environment and offers two modes, continuous and momentary. Use momentary mode to get an instant measurement of your light levels, or switch to continuous mode to constantly adapt to changing light in an event space, etc. Its 3-axis accelerometer detects the Orbiter's pan, tilt, and roll, and this metadata can be used in future applications for placement optimization and effect production. It also includes a magnetometer that provides true global direction, an ambient light sensor that will automatically dim your control panel display, and a heat sensor that ensures safe operation at any temperature. Durable Construction The Orbiter has an estimated LED life of 50,000 hours. Its optional yoke mounts on a Junior pin, and it consumes nominally 400W and maximum 500W. It is built from aluminum with a quick-release +/- 90° yoke, powerful tilt lock, and manual operation. A complete connector suite includes DMX input, DMX output, two LAN ports, one USB Type-A 1.5A port, one USB Type-A 0.5A port, one USB Type-C 1.5A port, and an SD card slot.
Launch a wide spectrum of brightness and color into your studio with the ARRI Orbiter blue/silver LED light without yoke, lens and cable, a tunable color lighting system with a powerful color engine and versatile, interchangeable optics. Featuring a processor four times faster than the SkyPanel, ARRI's 190-LED Spectra system offers a wide range of color features allowing you to create an enormous range of colors through its six-color light engine including red, green, blue, amber, cyan, and lime LEDs. With a high CRI rating of 98 and TLCI of 95, it offers a color temperature range of 2000 to 20,000 K to adapt to almost any lighting situation, and it also features 100 to 0% dimming with continuous and smooth adjustment. The light is also equipped with multiple sensors, including a smart color sensor mode to detect ambient light and adjust its output for fine color accuracy, a 3-axis accelerometer that detects pan, tilt, and roll movements, an ambient light sensor to keep your screen readable, heat sensors to keep the light cool, and even a magnetometer to orient your light in its geography. The Orbiter features a highly portable design that can change its optics in the blink of an eye using ARRI's Quick Lighting Mount (QLM), a bayonet-style connection similar to a camera lens mount. Available optics include 15, 30, and 60° open face optics that produce a directional beam; 15, 25, and 35° projection optics that produce a sharp, focused beam with uniformly distributed color; and small, medium, and large domes that provide a large area of soft light. The light can also be used with light banks, barndoors, honeycombs, and other light-shaping accessories available separately with the appropriate adapter. Using ARRI's Lighting Operating System (LiOS), you can control all color modes, effects, and lighting grids directly from the built-in control panel. LiOS offers eight color modes such as CCT, HSO, RGBACL, gel selection, X/Y coordinates, source matching, effects, and a custom mode that allows you to save over 240 favorites that can be applied to a DMX or interface. It also has three operational modes - high color rendering, high output, and low noise - for your preferred performance mode. Interfaces include 5-pin DMX input and output, two LAN ports, two USB Type-A ports, one USB Type-C port, and an SD slot for future upgrades. It also has a sync input for future applications that will sync with your camera. The light is weather resistant and can withstand dust and water splashes. Its redesigned mounting points secure an optional yoke for positioning with +/-90° tilt, and the yoke features a standard 1 1/8" Junior pin mounting point. Orbiter Option Orbiter models include a version without optics; small, medium, and large domes; 15, 30, and 60° open face versions; and 15, 25, and 35° projection versions. ARRI offers a range of open face and projection optics (lens housings), domes, light boxes, snoots, and barndoors. The interchangeable optics attach quickly and easily to the front of the light using the new QLM (quick lighting mount) system, which works like a giant camera lens mount. Powerful Color Inside each Orbiter is the Spectra light engine with a processor four times faster than ARRI's SkyPanel series and 125 times more memory, with plenty of room for future function updates. To produce extra-fine full color adjustment, the light engine adds amber, cyan, and lime to standard red, green, and blue LED colors in its 190 LED array. Capable of creating hard shadows with defined edges, the Orbiter's engine is 76 times smaller than an ARRI L10 Fresnel but has higher output while consuming the same amount of power. LiOS (Light Operating System) Building on features first introduced with the SkyPanel, ARRI's LiOS system also offers simplified DMX mode, over 240 presets, optics recognition, optimal performance modes, and multilingual support for worldwide use. Eight different color modes include CCT, HSI, individual color, x/y coordinates, gel, source, matching, and an ambient color sensor. Complete Sensor Suite The Orbiter features a built-in sensor suite with an ambient color sensor that reproduces color and intensity changes in your environment and offers two modes, continuous and momentary. Use momentary mode to get an instant measurement of your light levels, or switch to continuous mode to constantly adapt to changing light in an event space, etc. Its 3-axis accelerometer detects the Orbiter's pan, tilt, and roll, and this metadata can be used in future applications for placement optimization and effect production. It also includes a magnetometer that provides true global direction, an ambient light sensor that will automatically dim your control panel display, and a heat sensor that ensures safe operation at any temperature. Durable Construction The Orbiter has an estimated LED life of 50,000 hours. Its optional yoke mounts on a Junior pin, and it consumes nominally 400W and maximum 500W. It is built from aluminum with a quick-release +/- 90° yoke, powerful tilt lock, and manual operation. A complete connector suite includes DMX input, DMX output, two LAN ports, one USB Type-A 1.5A port, one USB Type-A 0.5A port, one USB Type-C 1.5A port, and an SD card slot.
|
|
Specifications |
|
|
Lighting fixture |
|
|
|
Color temperature |
2000 to 20,000K |
|
|
Color modes |
Full RGB adjustment |
|
|
Color accuracy standard |
CRI 98 TLCI 95 |
|
|
Dimming |
Yes, 0 to 100% (Continuous) |
|
|
Display |
LCD |
|
|
Housing material |
Aluminum |
|
|
Number of LEDs |
190 (RGB) |
|
|
Expected lamp life |
50000 hours (L70) |
|
|
Connectors |
|
|
|
Power input connector |
3-pin XLR, powerCON |
|
|
DMX connector |
5-pin XLR, RJ45 |
|
|
Service connector |
USB Type-A |
|
|
Lens |
|
|
|
Reflector mount |
ARRI QLM |
|
|
Assembly |
|
|
|
Yoke mount |
ARRI Quick Release |
|
|
Remote operation |
|
|
|
Remote control type |
DMX, Wired remote control |
|
|
Power |
|
|
|
AC Input Power |
100 to 260 VAC, 50 / 60 Hz |
|
|
Power source |
AC adapter, External battery |
|
|
Maximum power consumption |
500 W |
|
|
Power pass-through |
Yes |
|
|
Cable |
|
|
|
Cable type |
None |
|
|
Physical |
|
|
|
Operating temperature |
-20 to 45°C / -4 to 113°F |
|
|
Protection class |
I |
Orbiter without Yoke, Optic, Control Panel, Control Panel Cable and Mains Cable
