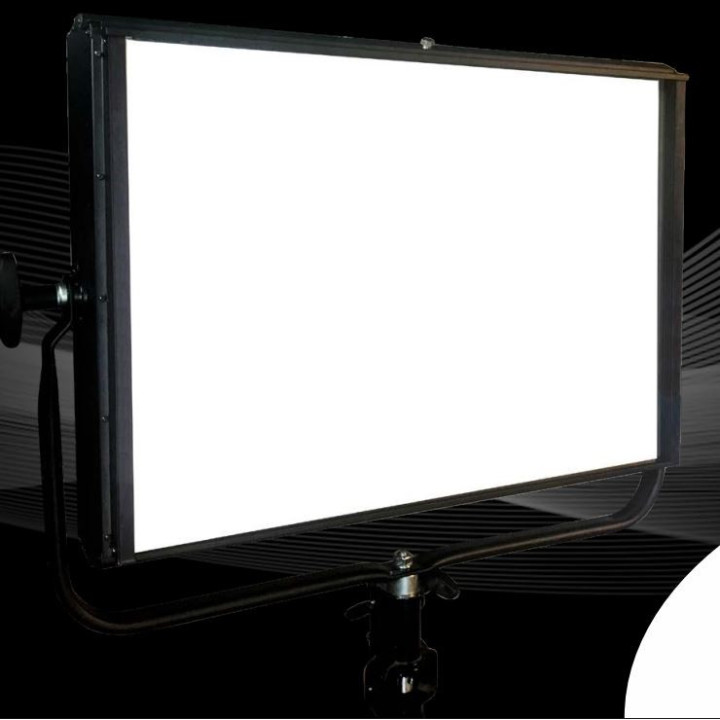

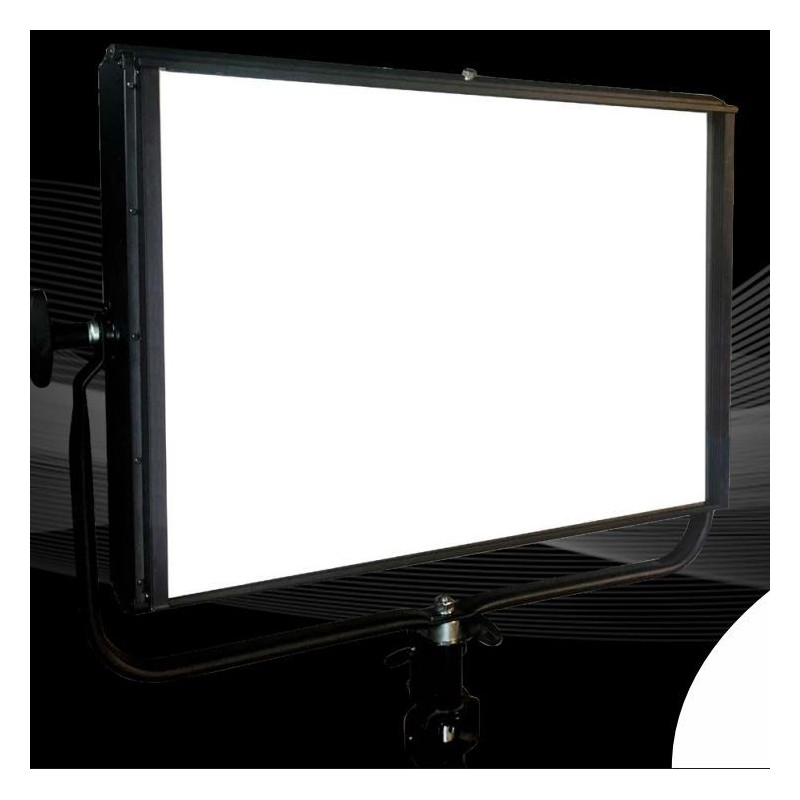

DeSisti - SOFT LED 8 XL VW+C - 600W Manual Operated

DeSisti S8XLVW+C.MO - SOFT LED 8 XL VW+C - 600W Manual Operated

1039255
DeSisti S8XLVW+C.MO - SOFT LED 8 XL VW+C - 600W Manual Operated
DeSisti S8XLVW+C.MO - SOFT LED 8 XL VW+C - 600W Manual Operated
SOFT LED 8 XL VW+C - 600W Manual Operated. Separate Vari-White & Colour LED ENGINES (White Light is produced with Warm and Cold White LEDs offering 2.700 to 6.500 degree K Enhanced CRI >95. The colour engine uses separate phosphor LED arrays for Red, Green Blue and Amber colours.
... learn more
Visuals Price
9,347.36 CHF VAT excl.

10,104.50 CHF Inc. VAT

Manufacturer price 11 684,20 CHF VAT excluded
Made to order

DeSisti S8XLVW+C.MO Specs

Power to LED max 650W - DC current to the LED - flicker free
Rated Voltage & PFC 90-250V 50-60Hz PFC 0.96 - DC48V (optional)
Power consumption max 725W @ 230V | max 725W @120V
Power Connection powerCON IN & OUT - XLR 3-pin (with DC48V option)
DMX Data link USITT DMX512-A
5-pin XLR for DMX in & out. - W-DMX Lumenradio (optional)
Use shielded data cables.
Do not overload the daisy chain.
Up to a maximum of 32 devices can be used on a single DMX chain.
DMX Channels 8 bit:
7 to 9 (depending if Mode control and Fan control are activated)
39 in Extended mode
16 bit:
8 to 10 (depending if Mode control and Fan control are activated)
40 in Extended mode
LED BOARDS Lifetime 60,000 hours with 70% Lumen Maintenance.
The LED BOARDS are tested and certified up to LM80
CCT Tunable from 1,800°K to 12,000°K + RGBA color and color correction mode
CRI / TLCI >95 / >96
Protection Type IP20
Max. Housing Surface Temperature 70° C
Weight of Fixture with yoke (integrated PSU) M.O. 19.8 Kg (43.7 lb)
P.O. 22.1 Kg (48.7 lb)
SOFT LED 8 XL VW+C - 600W Manual Operated. Separate Vari-White & Colour LED ENGINES (White Light is produced with Warm and Cold White LEDs offering 2.700 to 6.500 degree K Enhanced CRI >95. The colour engine uses separate phosphor LED arrays for Red, Green Blue and Amber colours.
