Swing-Away MatteBox MB 565 Double 19, for Cine FullFrame cameras
... learn more
Visuals Price
2,432.25 CHF VAT excl.

2,629.26 CHF Inc. VAT

Manufacturer price 2 702,50 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

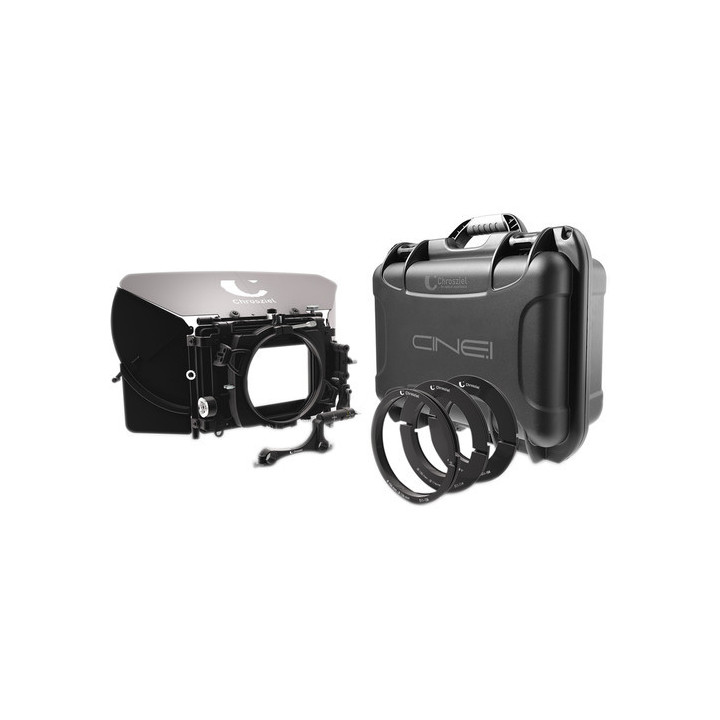

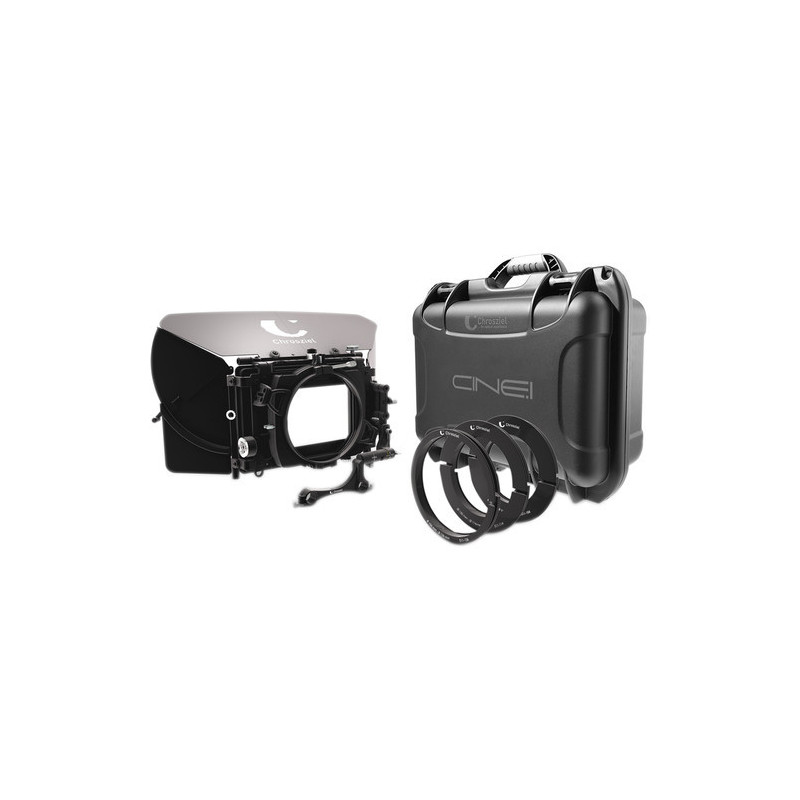

Chrosziel MB 565 Double 19 Offset Matte Box
The Chrosziel MB 565 Double 19 offset matte box kit is designed for use with full-frame cinema cameras. The kit includes a 150 mm diameter clamp adapter, an offset arm for 19 mm rods, a French flag, two 5.65x5.65"/4x5.650" filter holders, a swing mechanism set, a side flag set, a handle rosette set, an accessory bar with adjustable slider, a filter catcher, FlexiBellows and a case with insert.
Chrosziel 19 mm offset arm for Cine.1 Matte Box
The Chrosziel 19 mm offset arm set enables faster lens changes by easily moving the matte box out of the lens path. In addition to providing offset functionality, the set features joints that allow you to tilt the matte box as well as slide it horizontally and vertically when mounting to your lens, thus compensating for any inconsistencies encountered in complex mounting scenarios.
Chrosziel top flag for Cine.1 Matte Box
The Chrosziel top flag attaches directly to the Cine.1 matte box to block stray light from above. The flag folds in half for reduced storage space. Additionally, the flag features safety holes that mate with the matte box safety locks, preventing the flag from accidentally falling during setup.
Chrosziel 5.65 x 5.65" filter holder for Cine.1 Matte Box
This Chrosziel replacement filter holder can accommodate either a 5.65 x 5.65" filter or a 4 x 5.65" filter in a filter stage of the Cine.1 matte box.
Chrosziel side flag swing mechanism set for Cine.1 Matte Box
Install side flags on your Cine.1 matte box with this Chrosziel side flag swing mechanism set. Using the supplied screws, the swing mechanisms attach to the left and right sides of the matte box and feature wing screws to secure the side flags. Each swing mechanism allows lateral adjustment of the side flags to compensate for focal length.
Extra-wide side flags for Chrosziel Matte Box
The Chrosziel extra-wide side flags add light control to selected matte boxes when powerful light sources such as the sun and high-power spotlights are present. This side flag will block light sources and prevent stray reflections and scattered light from spoiling your image.
Adjustable
This side flag allows additional adjustment via angle edge control; this control works with wide-angle lenses and 16:9 formats, providing specific light control.
Chrosziel rosette for Cine.1 Matte Box (Pair)
This pair of Chrosziel rosettes attaches directly to the Cine.1 matte box frame, allowing you to attach accessories compatible with the Arri rosette standard to the Cine.1 matte box.
Chrosziel top accessory bar for Cine.1 Matte Box
Mount accessories on top of your Cine.1 matte box with the Chrosziel top accessory bar. The bar slides into the top of the Cine.1 matte box and provides 1/4"-20 and 3/8"-16 threaded holes for mounting articulated arms or other accessories. The top of the bar includes a sliding accessory mounting thread for attaching distance measuring equipment.
Chrosziel filter catcher for Cine.1 Matte Box
This Chrosziel filter catcher attaches to the bottom of the Cine.1 matte box and extends to prevent filter holders from accidentally falling through the matte box during loading.
Chrosziel 150 mm FlexiBellows for MB 565 Matte Box
The Chrosziel FlexiBellows is a 150 mm rubber retaining ring with a flexible rubber bellows of approximately 35 mm, designed to fit lenses with a diameter between 70 and 110 mm. This lens retaining ring is compatible with the MB 565 matte box.
Chrosziel hard case for Cine.1 Matte Box
Protect your Cine.1 matte box with this Chrosziel hard case. A pre-cut insert is fitted to the shape of the Cine.1 matte box for greater security. Two locking latches secure the lid against drops and protect the interior from the elements. The case handle features a rubber grip for comfort when carrying by hand.




Specifications



19 mm offset arm set for Cine.1 Matte Box

Rod spacing

19 mm Studio Standard

Adjustment

Horizontal/vertical shift of ±5 mm
Forward/backward tilt

5.65 x 5.65" filter holder for Cine.1 Matte Box

Filter sizes

5.65 x 5.65"
4 x 5.65"

Top accessory bar for Cine.1 Matte Box

Threaded holes

5 x 3/8"-16
4 x 1/4"-20

150 mm FlexiBellows for MB 565 Matte Box

Compatibility

Matte Box MB 565

Hard case for Cine.1 Matte Box

Dimensions

15 x 12 x 7" / 390 x 310 x 170 mm
