Chrosziel 565-06-KIT-15-45-SW - Swing-Away MatteBox Kit MB 565 Triple 15

1017215
4250618839998
Chrosziel 565-06-KIT-15-45-SW - Swing-Away MatteBox Kit MB 565 Triple 15
Chrosziel 565-06-KIT-15-45-SW - Swing-Away MatteBox Kit MB 565 Triple 15
Swing-Away MatteBox Kit MB 565 Triple 15, for Cine FullFrame cameras
... learn more
Visuals Price
2,601.45 CHF VAT excl.

2,812.17 CHF Inc. VAT

Manufacturer price 2 890,50 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

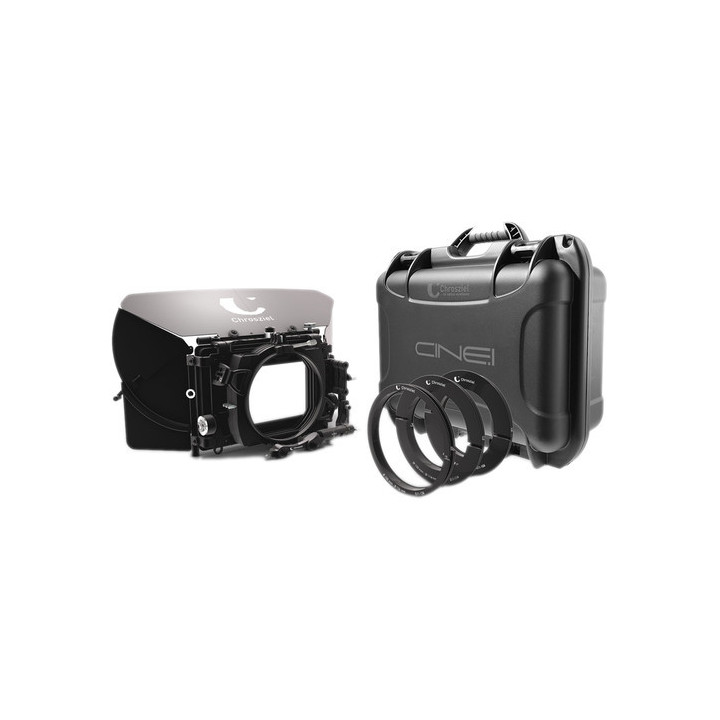

Chrosziel MB 565 Triple 15 Swing-Away Matte Box Kit
The Chrosziel MB 565 Triple 15 Swing-Away Matte Box Kit is designed for use with full-frame cinema cameras. The kit consists of a 150 mm diameter clamp adapter, a swing-away arm for 15 mm rods, a French flag, three 4x5.650"/4x4" filter holders, a swing mechanism set, a side flap set, a handle rosette set, an accessory bar with adjustable slider, a filter holder receiver, a FlexiBellows and a case with insert.
Chrosziel 15 mm Swing-Away Arm Set for Cine.1 Matte Box
The Chrosziel 15 mm Swing-Away Arm Set enables faster lens changes by easily moving the matte box out of the lens path. In addition to providing swing-away functionality, the set features articulated joints that allow you to tilt the matte box as well as slide it horizontally and vertically when adjusting to your lens, thus compensating for any inconsistencies encountered in complex mounting scenarios.
Chrosziel Top Flag for Cine.1 Matte Box
The Chrosziel Top Flag attaches directly to the Cine.1 matte box to block stray light coming from above. The flag folds in half for reduced footprint during storage. Additionally, it features safety holes that mate with the matte box's safety locks, preventing the flag from accidentally falling during installation.
Chrosziel 4 x 5.65" Filter Holder for Cine.1 Matte Box
This Chrosziel replacement filter holder can accommodate either a 4 x 5.65" filter or a 4 x 4" filter in a filter stage of the Cine.1 matte box.
Chrosziel Side Flap Swing Mechanism Set for Cine.1 Matte Box
Install side flaps on your Cine.1 matte box with this Chrosziel Side Flap Swing Mechanism Set. Using the supplied screws, the swing mechanisms attach to the left and right sides of the matte box and feature thumb screws to secure the side flaps. Each swing mechanism allows lateral adjustment of the side flaps to compensate for focal length.
Chrosziel Extra Wide Side Flaps for Matte Box
The Chrosziel Extra Wide Side Flaps add light control to selected matte boxes in the presence of powerful light sources such as the sun and high-power wide-beam spotlights. This side flap will block light sources and prevent stray reflections and glare from spoiling your image.
Adjustable
This side flap allows additional adjustment via an angle edge control; this control works with wide-angle lenses and 16:9 formats, providing specific light control.
Chrosziel Top Accessory Bar for Cine.1 Matte Box
Mount accessories on top of your Cine.1 matte box with the Chrosziel Top Accessory Bar. The bar attaches to the top of the Cine.1 matte box and provides 1/4"-20 and 3/8"-16 threaded holes for mounting articulated arms or other accessories. The top of the bar features a sliding accessory mounting thread for attaching distance measuring equipment.
Chrosziel Filter Holder Receiver for Cine.1 Matte Box
This Chrosziel filter holder receiver attaches to the bottom of the Cine.1 matte box and extends to prevent filter holders from accidentally falling through the matte box during loading.
Chrosziel 150 mm FlexiBellows for MB 565 Matte Box
The Chrosziel FlexiBellows is a 150 mm retaining ring made of rubber with a flexible rubber bellows of approximately 35 mm, designed to fit lenses with diameters from 70 to 110 mm. This lens retaining ring is compatible with the MB 565 matte box.
Chrosziel Hard Case for Cine.1 Matte Box
Protect your Cine.1 matte box with this Chrosziel Hard Case. A pre-cut insert is shaped to fit the Cine.1 matte box for security. Two locking latches secure the lid against drops and isolate the interior from the elements. The case handle features a rubber grip for comfort during hand carrying.




Specifications



15 mm Swing-Away Arm Set for Cine.1 Matte Box

Rod Spacing

15 mm Lightweight Standard

Adjustment

Horizontal/vertical sliding of ±5 mm Forward/backward tilting

4 x 5.65" Filter Holder for Cine.1 Matte Box

Filter Sizes

4 x 5.65" 4 x 4"

Top Accessory Bar for Cine.1 Matte Box

Threaded Holes

5 x 3/8"-16 4 x 1/4"-20

150 mm FlexiBellows for MB 565 Matte Box

Compatibility

MB 565 Matte Box

Hard Case for Cine.1 Matte Box

Dimensions

15 x 12 x 7" / 390 x 310 x 170 mm



Swing-Away MatteBox Kit MB 565 Triple 15, for Cine FullFrame cameras
