Sennheiser - Wireless Digital Microphone - Instrument Base Set
Sennheiser XSW-D INSTRUMENT BASE SET - Wireless Digital Microphone - Instrument Base Set
281.19 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Sennheiser XSW-D INSTRUMENT BASE SET is a stage-ready, low-latency wireless guitar system that's as easy to use as a guitar cable, while offering the freedom of digital wireless. The XSW-D incorporates Sennheiser's world-renowned sound quality into a one-button, plug-and-play digital system that anyone can use. Plug it in, switch it on, and you're immediately ready to play, simplifying your setup so you can focus on your performance with confidence.

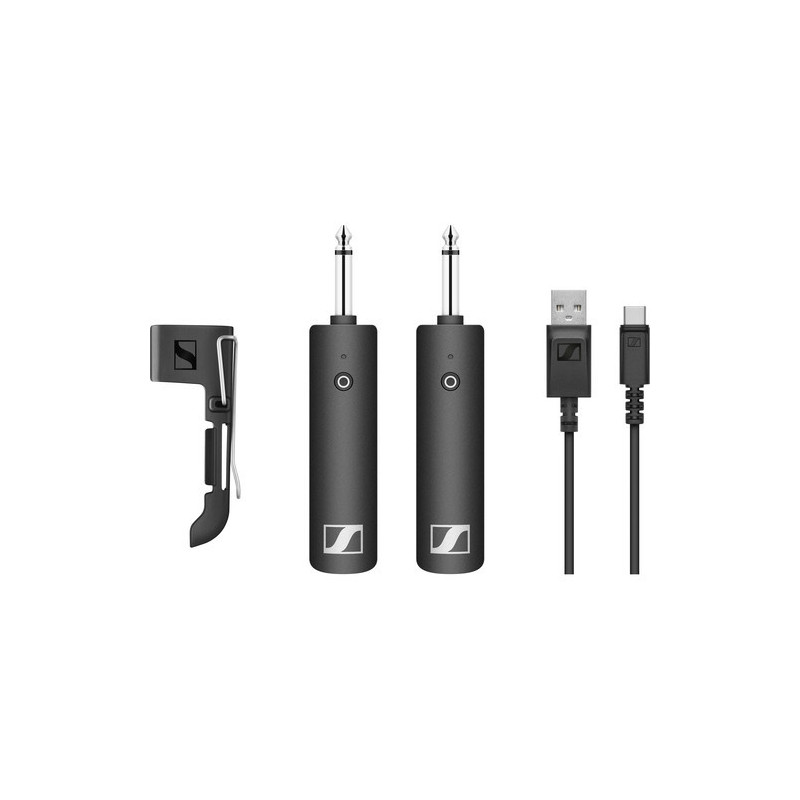

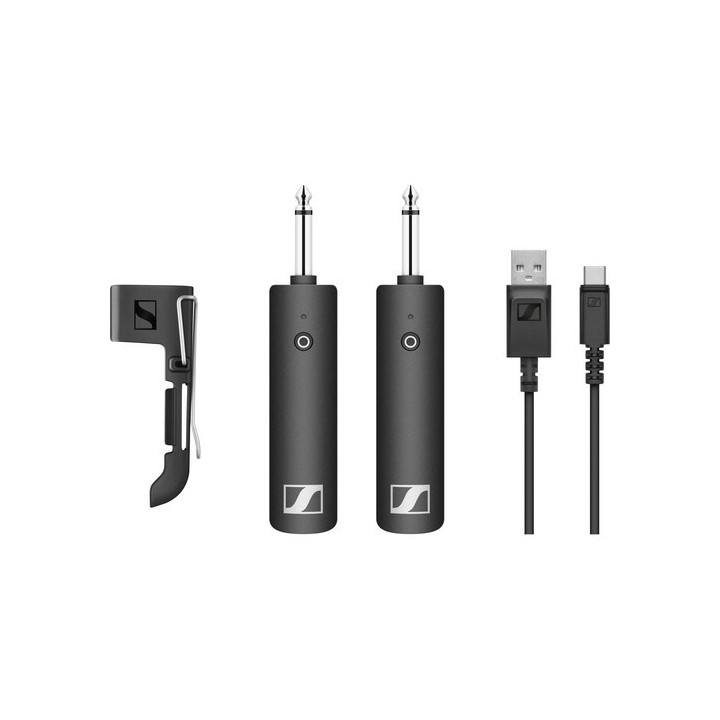

The XSW-D INSTRUMENT BASE SET comes with a 6.35 mm plug-on instrument transmitter and a 6.35 mm plug-on instrument receiver, both featuring lightweight miniature housings. The system connects to any guitar/bass amplifier or pedal and captures your instrument's full range without compromising your sound, whether you're playing on stage, at home, or in rehearsal.
Unpacking the system

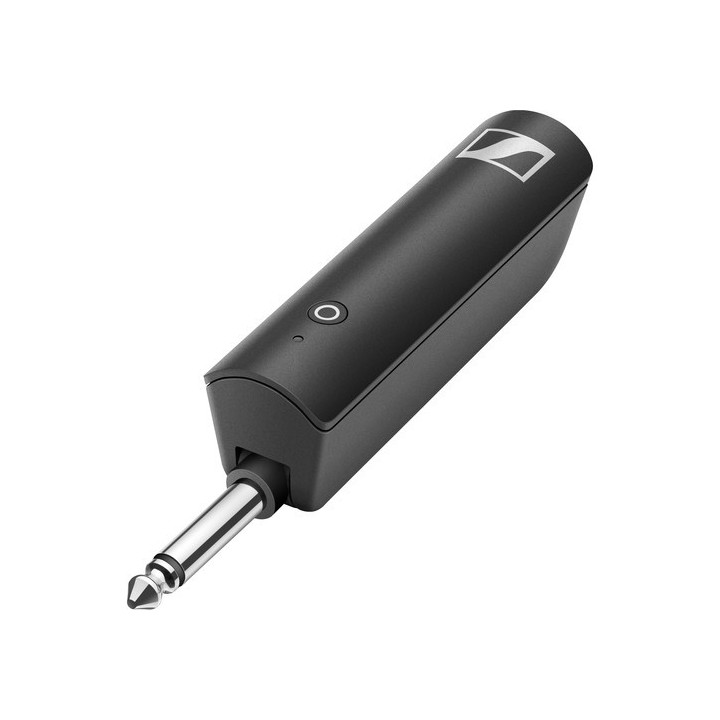

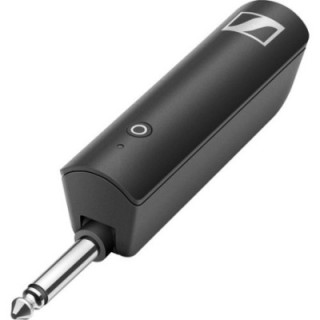

- The exceptionally lightweight and compact 6.35 mm plug-on transmitter plugs directly into your guitar or instrument output.
- For a more discreet appearance, you can use the included belt clip and extension cable to attach the transmitter to your waist or strap. The extension cable can also be used when the transmitter doesn't fit a specific instrument.
- Plug the compact 6.35 mm receiver directly into your amplifier or pedal input.
- You're ready to switch on and play—it's that simple.
Plug In, Switch On: It Works
- The one-button, one-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you.
- The receiver and transmitter are factory pre-paired, so when you switch on the system, it works—without requiring additional button presses.
Step Up to Sennheiser Sound Quality
- Sennheiser wireless systems are an industry benchmark, prized by professionals for their clarity and reliability. The XSW-D system allows beginner and budget-conscious users to access true Sennheiser sound quality without breaking the bank.
- Analogue wireless systems must compress your signal to operate in the FM band, producing thin sound with high background noise. The XSW-D uses digital technology to preserve your signal's dynamics and deliver crisp, clear guitar sound with all the nuances of your performance.
- On stage, timing is crucial, and the XSW-D uses the aptX Live codec to deliver an impressive 3.9 ms latency, so you don't feel any delay when playing—keeping you in time and in the groove.
Easy 2.4 GHz Digital Wireless
- Nothing ruins a take like hearing the weather forecast through your amp. Unlike traditional analogue systems, the XSW-D digital system operates in the 2.4 GHz ISM band, safe from interruptions and dropouts caused by TV and radio channel interference.
- Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel to ensure reliable transmission up to 76.2 m line of sight.
Expand Your System as Needed
- This XSW-D INSTRUMENT BASE SET's functionality can easily be extended by adding XSW-D series transmitters and receivers as your needs evolve.
- With this kit, adding the XSW-D pedalboard receiver allows you to enhance your performance.
- If your band wants to go wireless, up to five musicians can use an XSW-D system on the same stage.
Licence-Free Use Worldwide
- Since the XSW-D system operates in the licence-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination, and other technical hassles.
- Simply let the system choose a channel for you and start recording, whether you're working at home or anywhere in the world.
Other Features
- Environmentally friendly USB-rechargeable lithium-ion batteries—1 hour charge to reach 50% battery life
- 5 hours total battery life means you don't have to recharge your system during the show

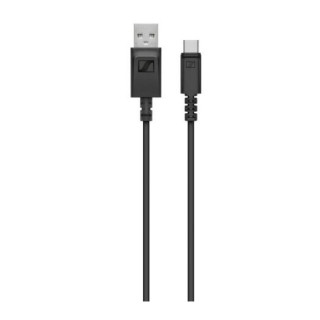

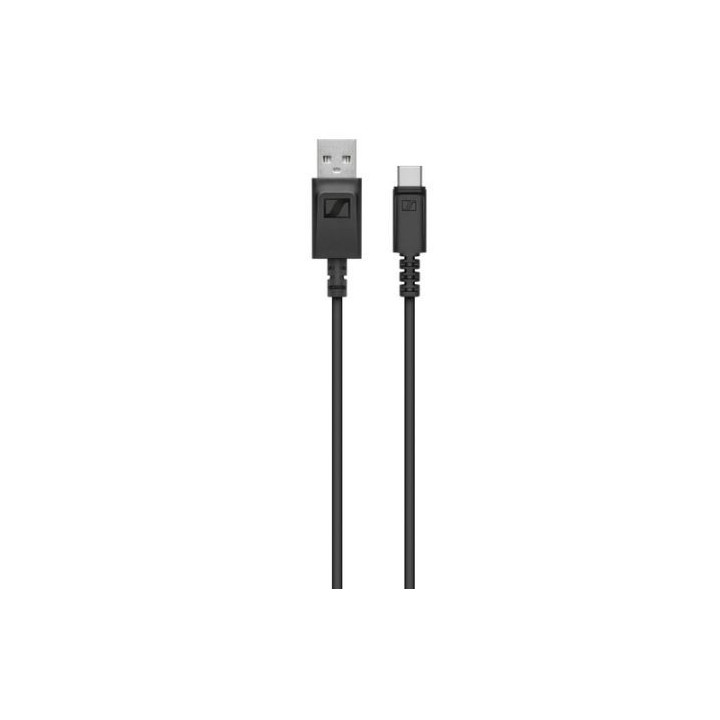

- Easily recharge batteries via USB during use or during breaks throughout the day
- Muting from transmitter or receiver
- Multi-pairing allows you to quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to a receiver at a time)
|
|
Specifications |
|
|
System |
|
|
|
Frequency range |
2,400 to 2,483 GHz |
|
|
Latency |
<4 ms with aptX Live codec |
|
|
Transmission range |
76.2 m / 250' (line of sight) |
|
|
Simultaneous unit use |
Up to 5 systems simultaneously |
|
|
Frequency response |
10 Hz to 18 kHz |
|
|
Signal-to-noise ratio |
≥106 dB |
|
|
THD |
<0.1 % |
|
|
Modulation |
GFSK with TDMA |
|
|
Operating temperature |
-10 to 55° C / 14 to 131° F |
|
|
Relative humidity |
95% (non-condensing) |
|
|
Transmitter |
|
|
|
Type |
6.35 mm plug-on transmitter |
|
|
Input connector |
6.35 mm / 1/4" TS, Male, Foldable (90°) |
|
|
RF output power |
10 mW |
|
|
Input sensitivity |
Instrument level input only |
|
|
Battery |
Type: Integrated, USB rechargeable, Lithium-Ion |
|
|
Dimensions |
122 x 24 x 28 mm / 4.8 x 0.9 x 1.1" |
|
|
Receiver |
|
|
|
Type |
6.35 mm plug-on receiver |
|
|
Output connector |
6.35 mm / 1/4" TS, Male, Foldable (90°) |
|
|
Audio output level |
Consumer line level output only: -12 dBu (Maximum) |
|
|
Battery |
Type: Integrated, USB rechargeable, Lithium-Ion |
|
|
Dimensions |
122 x 24 x 28 mm / 4.8 x 0.9 x 1.1" |
