Sennheiser - XSW-D Wireless Digital Pedalboard Set
Sennheiser XSW-D PEDALBOARD SET - XSW-D Wireless Digital Pedalboard Set
1012102
4044155240528

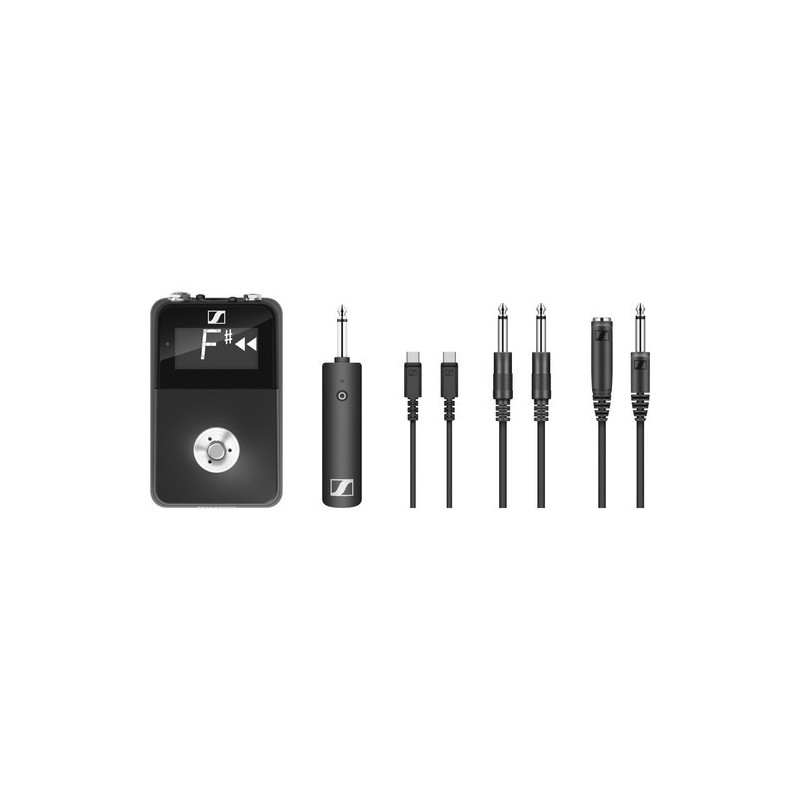

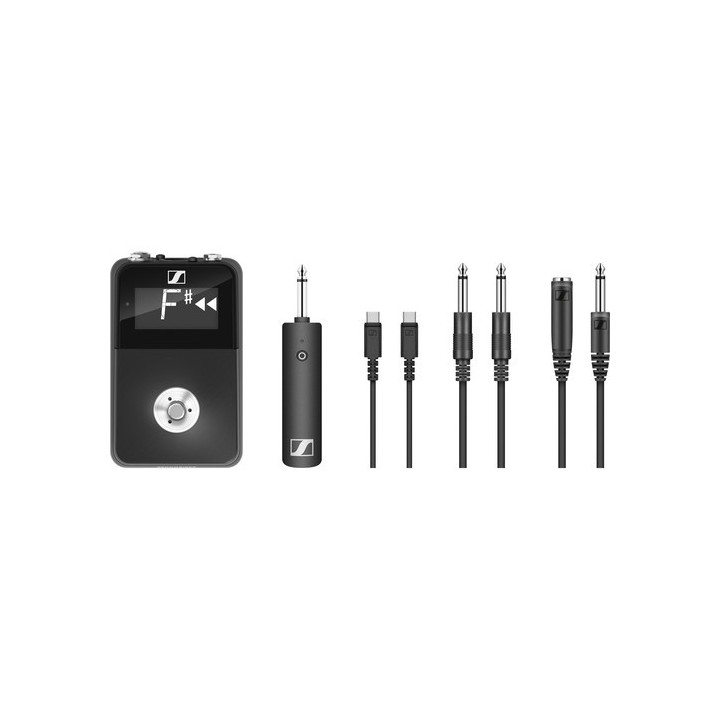

XS Wireless Digital Pedalboard Set. One-touch ease-of-use wireless audio set with XSW-D 6.3mm (1/4) transmitter, XSW-D Pedalboard receiver, receiver power supply, extension cable 6.3mm (1/4), belt clip and USB-A to USB-C charging cable.
Visuals Price
310.63 CHF
VAT excl.
335.79 CHF Inc. VAT
Manufacturer price 341,35 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Sennheiser XSW-D Digital Wireless Pedalboard Set
The Sennheiser XSW-D PEDALBOARD SET is a ready-to-use, low-latency wireless guitar system that's as easy to use as a guitar cable whilst offering the freedom of digital wireless. XSW-D integrates Sennheiser's world-renowned sound quality into a one-button digital plug-and-play system that anyone can use. Plug it in, switch it on, and you're immediately ready to play, simplifying your setup so you can focus on your performance with confidence.
The XSW-D PEDALBOARD SET comes with a miniaturised instrument transmitter with a 6.35mm jack plug. The pedalboard receiver includes an integrated tuner and DI box, which add versatility to your setup whilst saving valuable space. The system connects to any guitar/bass amplifier, pedal, stage box or mixing desk, capturing your instrument's full range without compromising your sound - on stage, at home or in rehearsal.
System unboxing

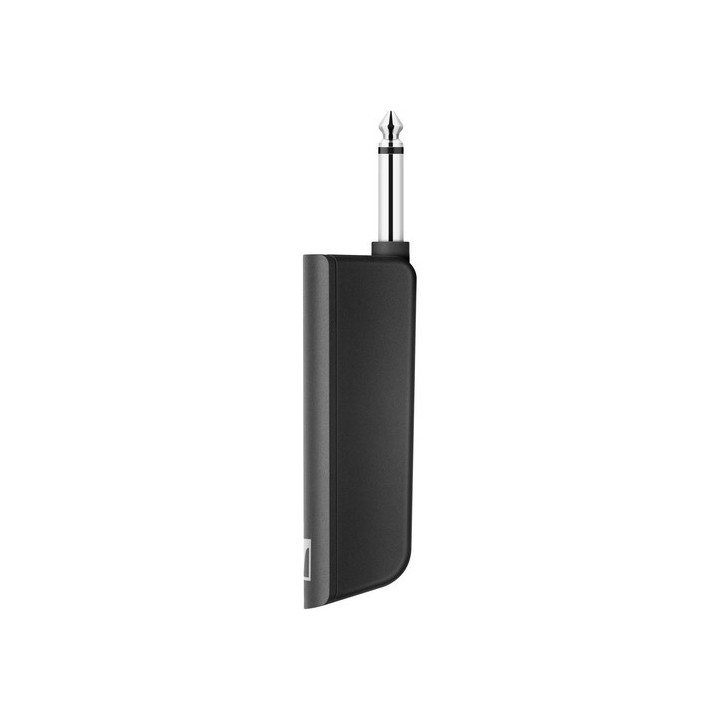

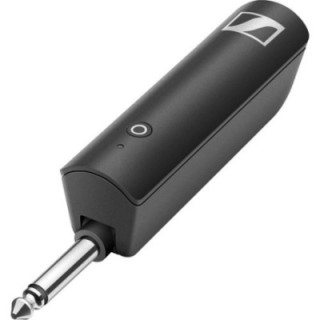

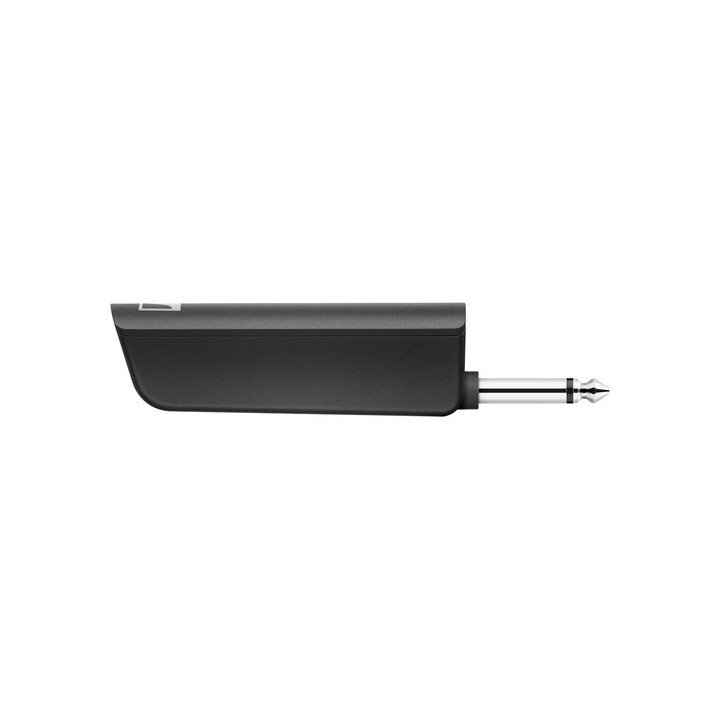

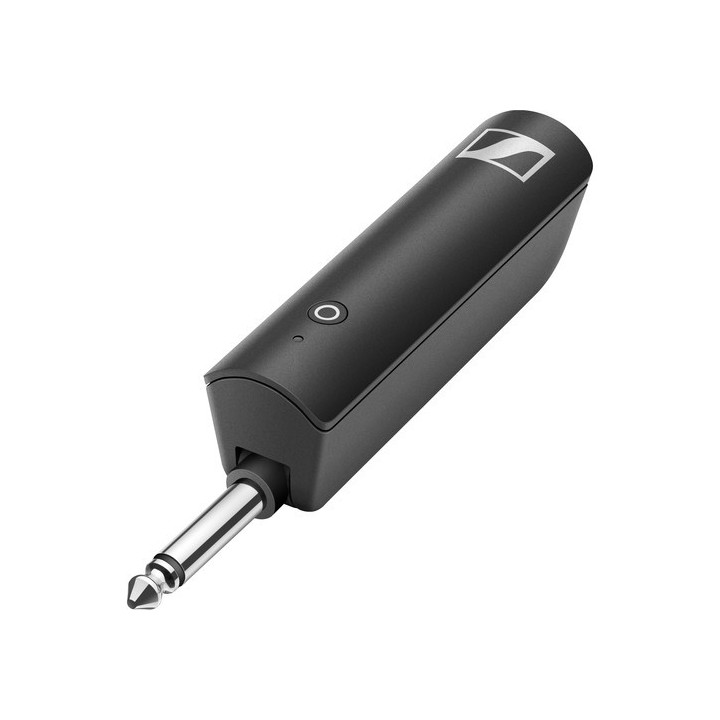

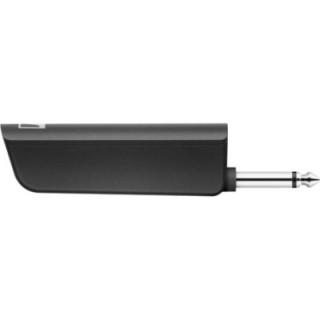

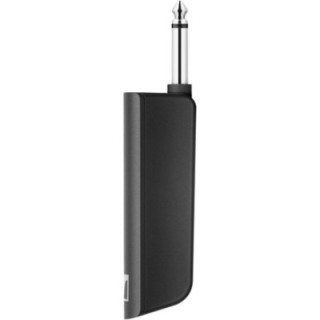

- The exceptionally lightweight and low-profile 6.35mm jack plug transmitter plugs directly into your guitar or instrument output.
- For a less visible appearance, you can use the included belt clip and extension cable to attach the transmitter to your waist or strap. The extension cable can also be used when the transmitter doesn't fit a specific instrument.
- The compact pedalboard receiver features a 6.35mm jack instrument output to connect to your amplifier or pedal, as well as a DI output on a balanced XLR connection. There's also an integrated tuner with LED display for visual confirmation, and a footswitch to mute your instrument whilst tuning.
- You're ready to switch on and play - it's that simple.
Plug in, switch on: it works
- The one-button, one-LED concept with a single-button interface and status indicator effortlessly handles power and pairing tasks for you.
- The receiver and transmitter are factory pre-paired, so when you switch on the system, it works - no need to press additional buttons.
Step up to Sennheiser sound quality
- Sennheiser wireless systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows beginner and budget-conscious users to access true Sennheiser sound quality without breaking the bank.
- Analogue wireless systems must compress your signal to operate in the FM band, resulting in thin sound with high background noise. XSW-D uses digital technology to preserve your signal's dynamics and deliver clean, clear guitar sound with all the nuances of your performance.
- On stage, timing is crucial, and XSW-D uses the aptX Live codec to deliver an impressive latency of just 3.9 ms, so you don't feel any lag when playing - you stay precise and in the groove.
Easy 2.4 GHz digital wireless system
- Nothing spoils a take like hearing the weather forecast through your amp. Unlike traditional analogue wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, protecting your signal integrity against interruptions and dropouts caused by TV channels, radios or other sources.
- Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel to ensure reliable transmission up to 76.2 m line of sight.
Expand your system as your needs evolve
- The functionality of this XSW-D PEDALBOARD SET can easily be extended by adding transmitters and receivers from the XSW-D series, as your needs evolve.
- With this set, adding the XSW-D 6.35mm jack plug receiver gives you a simplified option without the tuner and DI, which plugs directly into your amp (or pedal).
- If your band wants to go wireless, up to five musicians can each use an XSW-D system on the same stage.
Licence-free worldwide use
- As the XSW-D system operates in the licence-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination and other technical hassles.
- Simply let the system choose a channel for you and start recording, whether you're working at home or anywhere in the world.
Other features
- Eco-friendly USB-rechargeable lithium-ion battery on the transmitter - 1 hour charging to reach 50% battery life
- Full 5-hour battery life means you don't need to recharge your system mid-show
- Conveniently recharge transmitter batteries via USB during operation or during breaks throughout the day
- The pedalboard receiver is powered by the included mains adapter
- Muting from transmitter or receiver
- Multiple pairing allows you to quickly switch between several transmitters linked to one receiver (note that only one transmitter can broadcast to a receiver at a time)
The Sennheiser XSW-D PEDALBOARD SET is a ready-to-use, low-latency wireless guitar system that's as easy to use as a guitar cable whilst offering the freedom of digital wireless. XSW-D integrates Sennheiser's world-renowned sound quality into a one-button digital plug-and-play system that anyone can use. Plug it in, switch it on, and you're immediately ready to play, simplifying your setup so you can focus on your performance with confidence.
The XSW-D PEDALBOARD SET comes with a miniaturised instrument transmitter with a 6.35mm jack plug. The pedalboard receiver includes an integrated tuner and DI box, which add versatility to your setup whilst saving valuable space. The system connects to any guitar/bass amplifier, pedal, stage box or mixing desk, capturing your instrument's full range without compromising your sound - on stage, at home or in rehearsal.
System unboxing
- The exceptionally lightweight and low-profile 6.35mm jack plug transmitter plugs directly into your guitar or instrument output.
- For a less visible appearance, you can use the included belt clip and extension cable to attach the transmitter to your waist or strap. The extension cable can also be used when the transmitter doesn't fit a specific instrument.
- The compact pedalboard receiver features a 6.35mm jack instrument output to connect to your amplifier or pedal, as well as a DI output on a balanced XLR connection. There's also an integrated tuner with LED display for visual confirmation, and a footswitch to mute your instrument whilst tuning.
- You're ready to switch on and play - it's that simple.
Plug in, switch on: it works
- The one-button, one-LED concept with a single-button interface and status indicator effortlessly handles power and pairing tasks for you.
- The receiver and transmitter are factory pre-paired, so when you switch on the system, it works - no need to press additional buttons.
Step up to Sennheiser sound quality
- Sennheiser wireless systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows beginner and budget-conscious users to access true Sennheiser sound quality without breaking the bank.
- Analogue wireless systems must compress your signal to operate in the FM band, resulting in thin sound with high background noise. XSW-D uses digital technology to preserve your signal's dynamics and deliver clean, clear guitar sound with all the nuances of your performance.
- On stage, timing is crucial, and XSW-D uses the aptX Live codec to deliver an impressive latency of just 3.9 ms, so you don't feel any lag when playing - you stay precise and in the groove.
Easy 2.4 GHz digital wireless system
- Nothing spoils a take like hearing the weather forecast through your amp. Unlike traditional analogue wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, protecting your signal integrity against interruptions and dropouts caused by TV channels, radios or other sources.
- Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel to ensure reliable transmission up to 76.2 m line of sight.
Expand your system as your needs evolve
- The functionality of this XSW-D PEDALBOARD SET can easily be extended by adding transmitters and receivers from the XSW-D series, as your needs evolve.
- With this set, adding the XSW-D 6.35mm jack plug receiver gives you a simplified option without the tuner and DI, which plugs directly into your amp (or pedal).
- If your band wants to go wireless, up to five musicians can each use an XSW-D system on the same stage.
Licence-free worldwide use
- As the XSW-D system operates in the licence-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination and other technical hassles.
- Simply let the system choose a channel for you and start recording, whether you're working at home or anywhere in the world.
Other features
- Eco-friendly USB-rechargeable lithium-ion battery on the transmitter - 1 hour charging to reach 50% battery life
- Full 5-hour battery life means you don't need to recharge your system mid-show
- Conveniently recharge transmitter batteries via USB during operation or during breaks throughout the day
- The pedalboard receiver is powered by the included mains adapter
- Muting from transmitter or receiver
- Multiple pairing allows you to quickly switch between several transmitters linked to one receiver (note that only one transmitter can broadcast to a receiver at a time)
|
|
Specifications |
|
|
System |
|
|
|
Frequency range |
2.400 to 2.483 GHz |
|
|
Latency |
<4 ms with aptX Live codec |
|
|
Transmission range |
76.2 m / 250' (line of sight) |
|
|
Simultaneous operation of units |
Up to 5 systems simultaneously |
|
|
Frequency response |
10 Hz to 18 kHz |
|
|
Signal-to-noise ratio |
≥106 dB |
|
|
THD |
<0.1% |
|
|
Modulation |
GFSK with TDMA |
|
|
Operating temperature |
-10 to 55°C / 14 to 131°F |
|
|
Relative humidity |
95% (non-condensing) |
|
|
Transmitter |
|
|
|
Type |
6.35mm jack plug transmitter |
|
|
Input connector |
6.35mm TS jack, male, foldable (90°) |
|
|
RF output power |
10 mW |
|
|
Input level |
Instrument level input only |
|
|
Battery |
Type: Built-in, USB rechargeable, lithium-ion |
|
|
Dimensions |
4.8 x 0.9 x 1.1" / 122 x 24 x 28 mm |
|
|
Receiver |
|
|
|
Type |
Pedalboard receiver |
|
|
Output connectors |
Instrument: 6.35mm TS jack, male |
|
|
Audio output level |
Instrument: -12 dBu, consumer line level (maximum) |
|
|
Battery |
Mains adapter |
|
|
Dimensions |
5.1 x 3.2 x 2.0" / 130 x 82 x 51 mm |
XS Wireless Digital Pedalboard Set. One-touch ease-of-use wireless audio set with XSW-D 6.3mm (1/4) transmitter, XSW-D Pedalboard receiver, receiver power supply, extension cable 6.3mm (1/4), belt clip and USB-A to USB-C charging cable.
