Zoom - 20-Channel Recorder/Mixer incl. AD-19E PSU

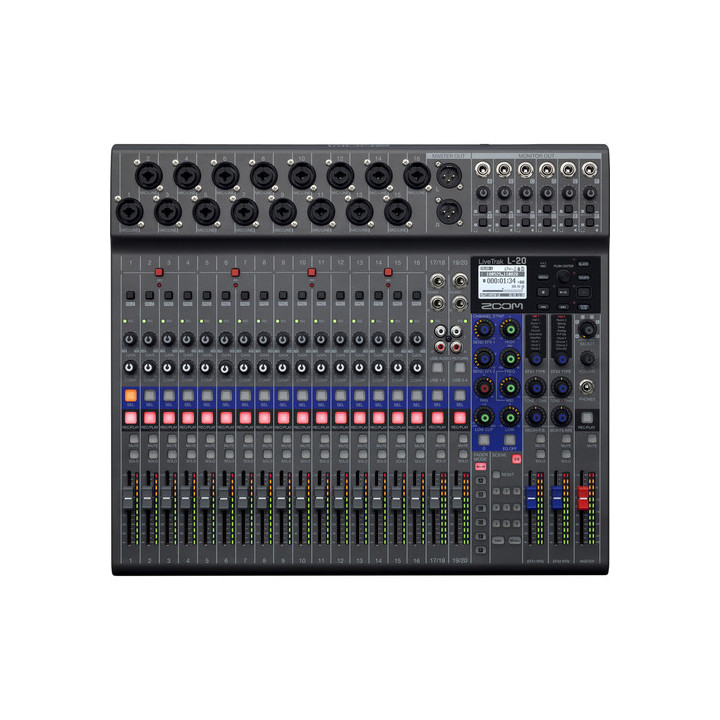

Name: Zoom LiveTrak L-20 - 20-Channel Recorder/Mixer incl. AD-19E PSU
Brand: Zoom
SKU: 1025875
Price: 924.14 CHF
Availability: BackOrder

Zoom LiveTrak L-20 - 20-Channel Recorder/Mixer incl. AD-19E PSU

SKU 1025875

EAN 4515260019861

Zoom LiveTrak L-20 - 20-Channel Recorder/Mixer incl. AD-19E PSU

20-Channel Recorder/Mixer incl. AD-19E PSU

... learn more

Visuals Price

924.14 CHF VAT excl.

999.00 CHF Inc. VAT

Made to order

Delivery
- Shipped in 1 to 2 weeks
In-store pickup
- Available in 1 to 2 weeks

Description

Description

Zoom Livetrak 20-channel recorder/mixer with AD-19E power supply
The highly flexible Zoom LiveTrak L-20 is a 20-input digital mixing console and multitrack recorder, well suited to live performances, studio recording, band rehearsals, podcasts and more. The mixing console features 16 mono channels, each with high-gain XLR-1/4" combo mic/line inputs, low-noise mic preamps, +48V phantom power and a single-knob compressor, whilst the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the built-in channel strip, which provides a high-pass filter, 3-band EQ, pan control and two effect sends for routing signals to the high-quality built-in effects processor with 20 effects and two dedicated EFX return channels.
The LiveTrak L-20 features balanced XLR main outputs, whilst the six monitor outputs use balanced 1/4" TRS connectors, each with the ability to configure custom mixes. Simply connect your headphones or stage monitor and adjust the levels to your preference. There are nine instant presets, which allow you to instantly recall different configurations and sessions.
The built-in SD recorder can simultaneously record each channel and the main fader stereo output for a total of 22 tracks at resolutions up to 24-bit/96 kHz. Files can easily be copied to a computer and used in a digital audio workstation (DAW). Additionally, overdubbing and punch in/out can be performed as expected when using the device as a multitrack recorder. The L-20 can also function as a 22-in/4-out USB audio interface, allowing you to record directly to your preferred DAW software or iOS devices. Other notable features include 12-segment LED level meters on all channels, a built-in metronome and a built-in talkback microphone for identifying takes. The Zoom LiveTrak L-20 comes with a power cord and USB cable.
Features
- 20 discrete channels (16 mono plus 2 stereo) with XLR or 1/4-inch connectivity
- Simultaneous 22-track recording, 20-track playback
- 22-in/4-out USB audio interface connectivity
- Records up to 24-bit/96 kHz to SD card
- 48V phantom power
- Hi-Z connectivity (channels 1-2)
- 26 dB pad (channels 3-16)
- Built-in compression control (channels 1-16)
- Solo buttons for individual channels
- Variable-frequency high-pass filter control
- Main outputs plus six customisable monitor outputs
- Dedicated headphone output for sound engineer
- Scene save function, up to 9 scenes saved at once
- 20 built-in chorus, delay and reverb effects with adjustable parameters
- Two effect buses
- Built-in talkback microphone
- Class-compliant mode (for iOS compatibility)
- Compatible with Remote Mixer app for iPad
- Auto-start/stop recording capability
- Pre-record function
- Project import/export with USB 2.0 host port
- Compatible features for Zoom FS01 pedal
- Automatic power-saving function

	Specifications
	Number of Inputs	Mono (Mic/Line): 16 x XLR-1/4" / 6.35 mm Combo Stereo (Line): 4 x 1/4" / 6.35 mm TS, 4 x RCA (2 x stereo pairs)
	Number of Outputs	Main output: 2 x XLR Monitor/Headphone output (A-F): 6 x 1/4" / 6.35 mm TRS Headphones: 1 x 1/4" / 6.35 mm
	Input Gain	Pad off: +16 to +60 dB Pad on: -10 to +34 dB Hi-Z on: +6 to +50 dB
	Input Impedance	XLR: 3 kOhms TRS: 10 kOhms/1 MOhm (when Hi-Z is enabled)
	Maximum Input Levels	Mono (Mic/Line) Pad off: 0 dBu (at 0 dBFS) Pad on: +26 dBu (at 0 dBFS) Stereo (Line): +14 dBu
	Phantom Power	48 V
	Maximum Output Levels	Main output: +14.5 dBu Monitor A-F (TRS): +14.5 dBu Monitor A-F (Headphones): 42 mW + 42 mW at 60 Ohms
	Output Impedances	100 Ohms
	Buses	Main: 1 Monitor: 6 EFX Send: 2
	Channel Controls	Channel Strip Comp: Yes, channels 1 to 16 High-pass filter: 40 to 600 Hz, 12 dB/oct EQ Treble: 10 kHz, ±15 dB, shelving Mid: 100 Hz to 8 kHz, ±15 dB, peaking Bass: 100 Hz, ±15 dB, shelving
	Level Meters	12 segments
	Effects	20 types
	Recorder	Maximum number of simultaneous recording tracks: 22 at 44.1/48/96 kHz Maximum number of simultaneous playback tracks: 20 Recording format: WAV 44.1, 48, 96 kHz, 16/24-bit, mono/stereo Recording media: SD cards 16 MB to 2 GB SDHC cards 4 to 32 GB SDXC cards 64 to 512 GB
	Audio Interface	Recording 44.1 / 48 kHz: 22 channels Playback: 4 channels Bit depth: 24-bit Interface: USB 2.0
	Card Reader	Mass Storage: SD, SDHC, SDXC
	USB Host	USB 2.0 High-Speed Class Compliant
	Sample Rate (Audio)	44.1, 48, 96 kHz
	Frequency Response	44.1 kHz: 20 Hz - 20 kHz (-1.0 dB) 96 kHz: 20 Hz - 40 kHz (-3.0 dB)
	Equivalent Input Noise	Actual measurements: 128 dB EIN (IHF-A) with +60 dB/150 Ohms input
	Display	Backlit LCD (128×64 resolution)
	Power Supply	AD-19 Mains Adaptor: 12 VDC / 2 A
	Power Consumption	24 W maximum
	Dimensions (W x D x H)	445.0 x 388.4 x 82.6 mm / 17.5 x 15.3 x 3.3"
	Weight	3.7 kg / 8.2 lb
