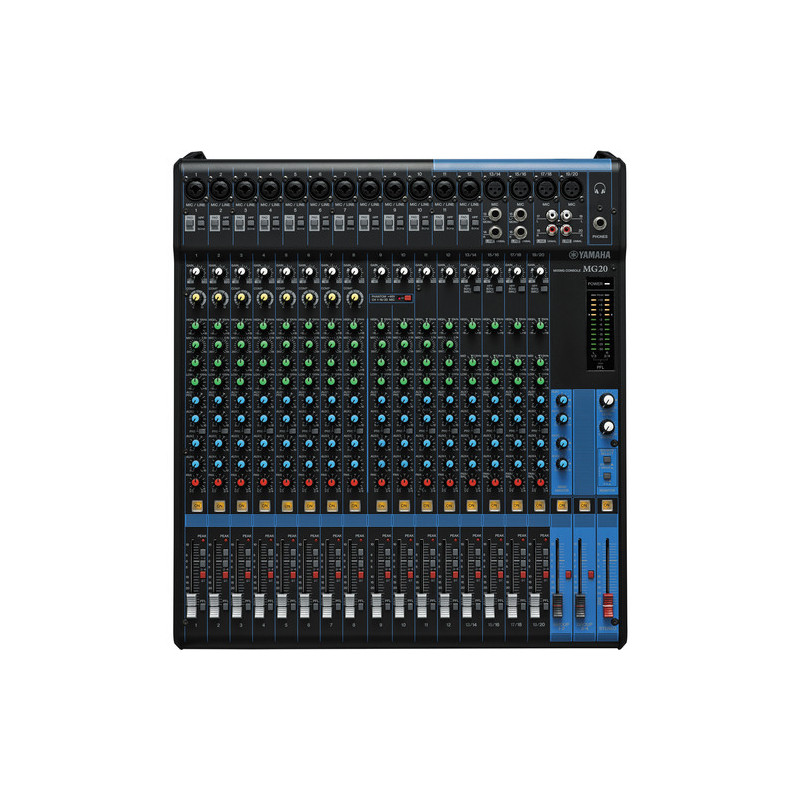

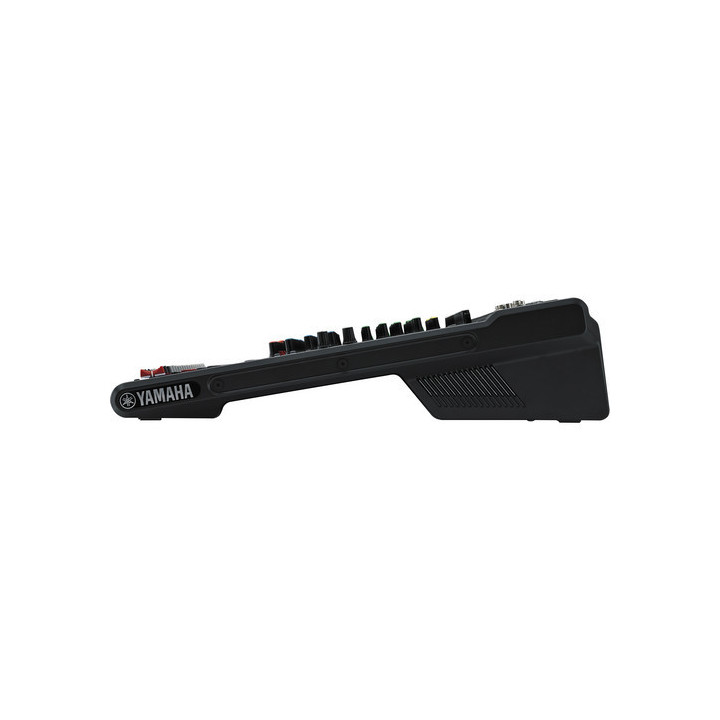

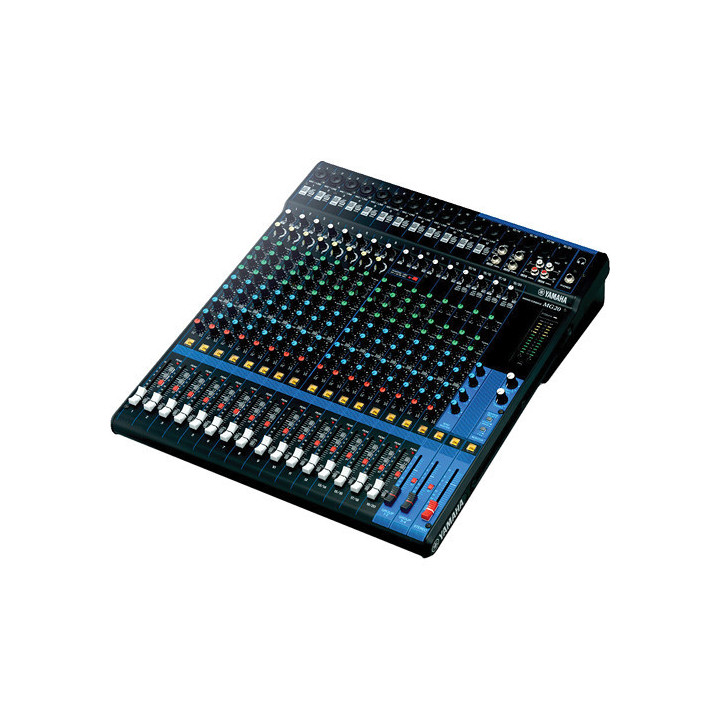

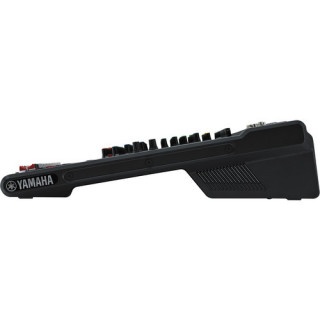

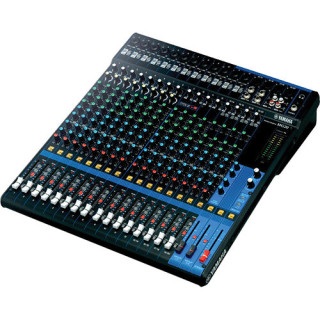

Yamaha MG20 - 20-Input Mixer
812.39 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Yamaha MG20 is a compact mixing console capable of handling twenty simultaneous inputs, ideal for live performances, recordings, conferences and more. The mixer features twelve mono combo mic/line input channels and four stereo line input channels that can also be used as mono mic or line inputs. Channels 1-20 are all equipped with D-PRE mic preamps, 3-band EQ, pan control and a high-pass filter, and channels 1-12 feature adjustable mid control. The D-PRE mic preamps use an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-12 also feature 26 dB pad switches for use with high-output sound sources such as guitar amplifiers and drums, and there is a one-knob compressor on channels 1-8 to smooth the dynamics of vocals and instruments for optimal integration into your mix. The MG20 mixing console features XLR and TRS stereo outputs for connection to your PA system or monitor speakers. It also includes a 6.35 mm headphone output with level control for personal monitoring, as well as additional TRS 6.35 mm stereo monitor outputs for sending to powered speakers, amplifiers or devices such as digital recorders. Features - 20-channel mixing console - Max. 16 mic inputs / 20 line inputs (12 mono + 4 stereo) - 4 group buses + 1 stereo bus - 4 aux (including FX) - "D-PRE" mic preamps with inverted Darlington circuit - One-knob compressors - Pad switch on mono inputs - +48V phantom power - Balanced XLR outputs - Universal internal power supply for worldwide use - Metal chassis
|
|
Specifications |
|
|
Phantom power |
+48 V |
|
|
Input channels |
12x mono [mic/line], 4x mono/stereo [mic/line] |
|
|
Output channels |
2x stereo outputs, 1x monitor output, 1x headphone output, 4x aux outputs, 4x group outputs |
|
|
Bus |
Stereo: 1, Group: 4, Aux: 4 |
|
|
Attenuator |
26 dB (mono) |
|
|
High-pass filter |
80 Hz, 12 dB/oct (Mono/Stereo: Mic only) |
|
|
Compressor |
Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: Approx. 25 ms, Release time: Approx. 300 ms |
|
|
Equaliser |
High EQ Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving, Mid EQ Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz - 5 kHz peaking, stereo 2.5 kHz peaking, Low EQ Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
|
|
LED |
Peak LED: Lights when the post-EQ signal reaches 3 dB below clipping (mono), Level indicator: 2x 12-segment LED indicators [Peak, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
|
|
Total harmonic distortion |
0.03% at +14 dBu (20 Hz to 20 kHz), Gain control: Min, 0.005% at +24 dBu (1 kHz), Gain control: Min |
|
|
Frequency response |
+0.5 dB/-1.5 dB (20 Hz to 48 kHz), referenced to nominal output level at 1 kHz, Gain control: Min |
|
|
Equivalent input noise |
-128 dBu (Mono input channel, Rs: 150 Ω, Gain control: Max) |
|
|
Residual output noise |
-102 dBu (Stereo output, Stereo master fader: Min) |
|
|
Crosstalk |
-78 dB |
|
|
Power supply |
AC 100 - 240 V, 50 / 60 Hz |
|
|
Power consumption |
36 W |
|
|
Dimensions |
17.5 x 5.1 x 19.7" (444 x 130 x 500 mm) |
|
|
Net weight |
15.2 lb (6.9 kg) |
