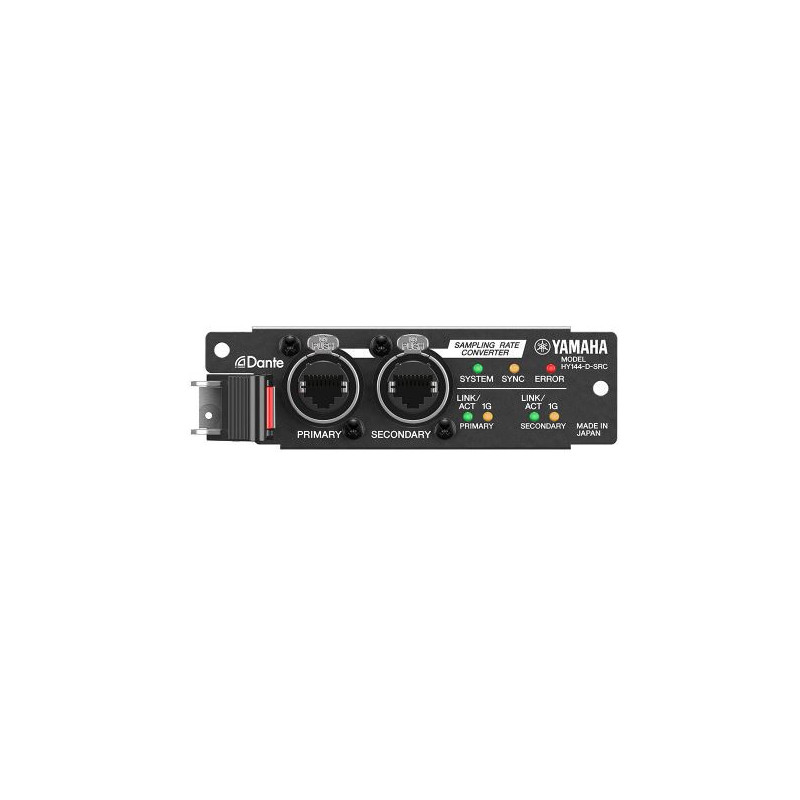

Yamaha HY144-D-SRC - Audio Interface Card
1028202
4957812634571
DANTE 144 I/O channel card with SRC, for RIVAGE PM system
Visuals Price
3,561.36 CHF
VAT excl.
3,849.83 CHF Inc. VAT
Manufacturer price 4 047,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha Audio Interface Card
The HY144-D-SRC audio interface card supports the Dante audio network protocol, handling up to 144 input and 144 output channels of 96 kHz/32-bit digital audio. Onboard sample rate conversion allows interconnection between devices operating at different sampling rates. Five operational modes can be selected via firmware.
Features
- Transmits and receives up to 144 input and 144 output channels of uncompressed 96 kHz/32-bit digital audio.
- Primary and secondary connectors support redundant connections. Daisy chain connections also supported.
- Five firmware-selectable operating modes: 144io (SRC off, 144 in/144 out), 144io SyncSRC (SRC on, synchronous, 144 in/144 out), 72io AsyncSRC (SRC on, asynchronous, 72 in/72 out), 144in AsyncSRC (SRC on, asynchronous, 144 in/0 out), 144o AsyncSRC (SRC on, asynchronous, 0 in/144 out).
- Dimensions (W x H x D): 125 x 37 x 207mm (4.9" x 1.5" x 8.2")
- Net Weight: 0.25 kg (0.6 lbs)
The HY144-D-SRC audio interface card supports the Dante audio network protocol, handling up to 144 input and 144 output channels of 96 kHz/32-bit digital audio. Onboard sample rate conversion allows interconnection between devices operating at different sampling rates. Five operational modes can be selected via firmware.
Features
- Transmits and receives up to 144 input and 144 output channels of uncompressed 96 kHz/32-bit digital audio.
- Primary and secondary connectors support redundant connections. Daisy chain connections also supported.
- Five firmware-selectable operating modes: 144io (SRC off, 144 in/144 out), 144io SyncSRC (SRC on, synchronous, 144 in/144 out), 72io AsyncSRC (SRC on, asynchronous, 72 in/72 out), 144in AsyncSRC (SRC on, asynchronous, 144 in/0 out), 144o AsyncSRC (SRC on, asynchronous, 0 in/144 out).
- Dimensions (W x H x D): 125 x 37 x 207mm (4.9" x 1.5" x 8.2")
- Net Weight: 0.25 kg (0.6 lbs)
|
|
Specifications |
|
|
Sampling Frequency Range |
|
|
|
Dante Clock |
Conditions: Fs=44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
|
|
Temperature Range |
|
|
|
Operating Conditions |
32 to 104° F (0 to 40° C) |
|
|
Storage Conditions |
-4 to 140° F (-20 to 60° C) |
|
|
Digital Input/Output |
|
|
|
Terminal |
Primary/ Secondary |
|
|
Format |
Dante |
|
|
Audio Data Length |
24 bit or 32 bit |
|
|
Standard |
1000BASE-T |
|
|
Maximum Number of Channels |
144 in/144 out |
|
|
Connector |
etherCON CAT5e |
|
|
Selectable Dante audio network latency |
0.25 msec/0.5msec/1.0 msec/2.0 msec/5.0 msec |
|
|
Dimensions (W x H x D) |
4.9" x 1.5" x 8.2" (125 x 37x 207 mm) |
|
|
Net Weight |
0.6 lbs (0.25 kg) |
DANTE 144 I/O channel card with SRC, for RIVAGE PM system
