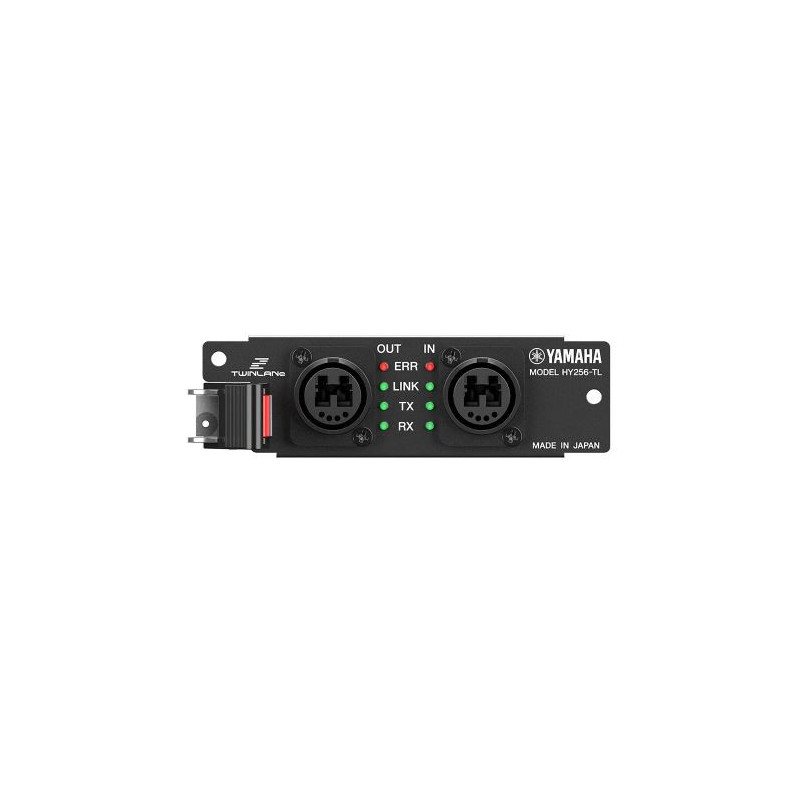

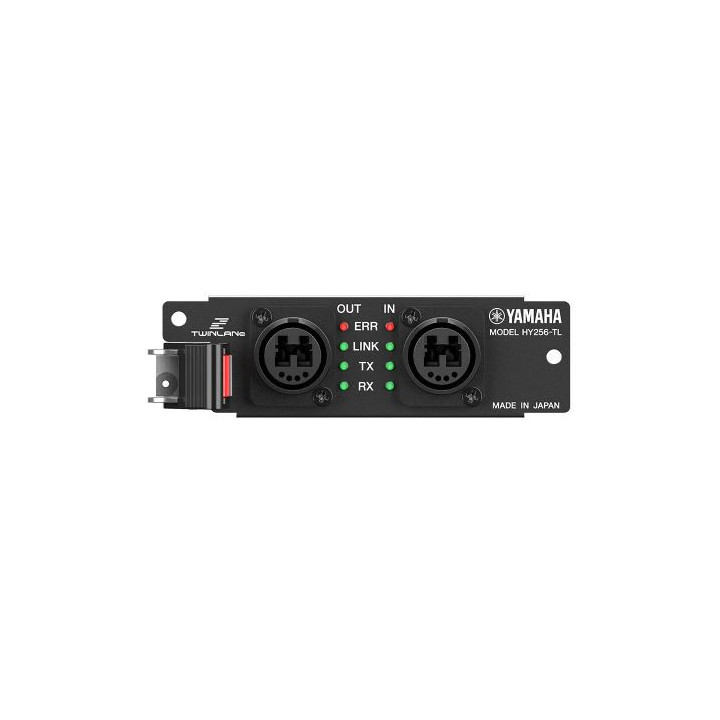

Yamaha HY256-TL - Audio Interface Card
1028203
4957812579087
TWINLANE 256 channel I / O card for multi-mode fiber, for RIVAGE PM system
Visuals Price
4,339.28 CHF
VAT excl.
4,690.76 CHF Inc. VAT
Manufacturer price 4 931,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha audio interface card
The HY256-TL is a digital I/O card that supports the TWINLANe audio network protocol. Up to 256 simultaneous input and output channels at 96 kHz/32-bit are available, and multimode fibre optic connections ensure reliable operation. Data can be reliably transferred between cards over distances of up to 300 metres.
Features
- Can send/receive uncompressed 32-bit 96 kHz quality digital audio signals, with a maximum of 256 inputs/256 outputs.
- Redundant connections are supported with a ring topology.
- Indicators show the communication status useful for troubleshooting.
- Recommended cable: Neutrik opticalCON DUO multimode fibre
- Dimensions (WxHxD): 125 x 37 x 207 mm (4.9" x 1.5" x 8.2")
- Net weight: 0.25 kg (0.6 lbs)
The HY256-TL is a digital I/O card that supports the TWINLANe audio network protocol. Up to 256 simultaneous input and output channels at 96 kHz/32-bit are available, and multimode fibre optic connections ensure reliable operation. Data can be reliably transferred between cards over distances of up to 300 metres.
Features
- Can send/receive uncompressed 32-bit 96 kHz quality digital audio signals, with a maximum of 256 inputs/256 outputs.
- Redundant connections are supported with a ring topology.
- Indicators show the communication status useful for troubleshooting.
- Recommended cable: Neutrik opticalCON DUO multimode fibre
- Dimensions (WxHxD): 125 x 37 x 207 mm (4.9" x 1.5" x 8.2")
- Net weight: 0.25 kg (0.6 lbs)
TWINLANE 256 channel I / O card for multi-mode fiber, for RIVAGE PM system
