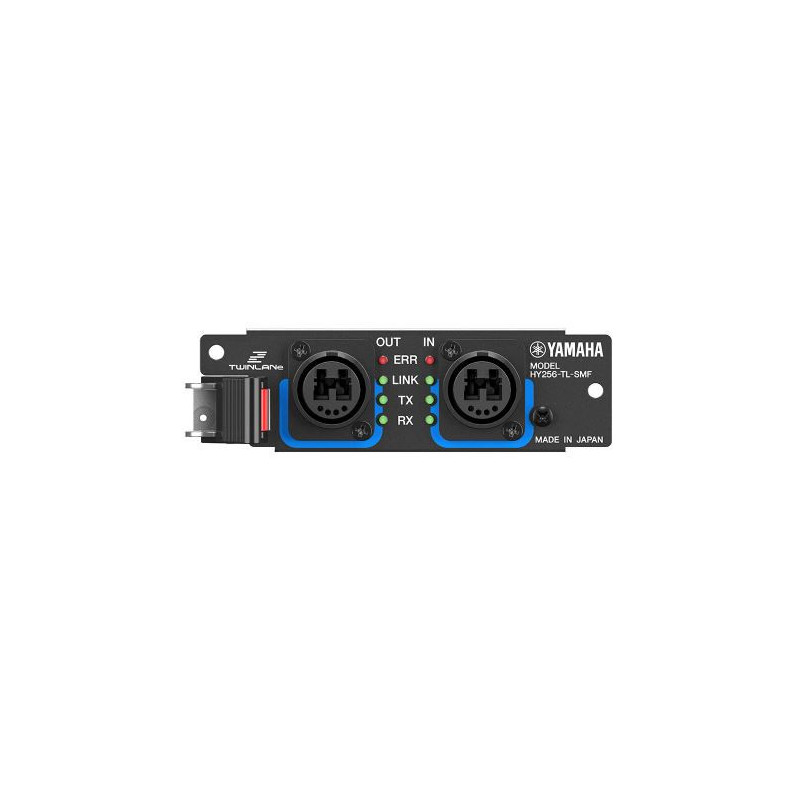

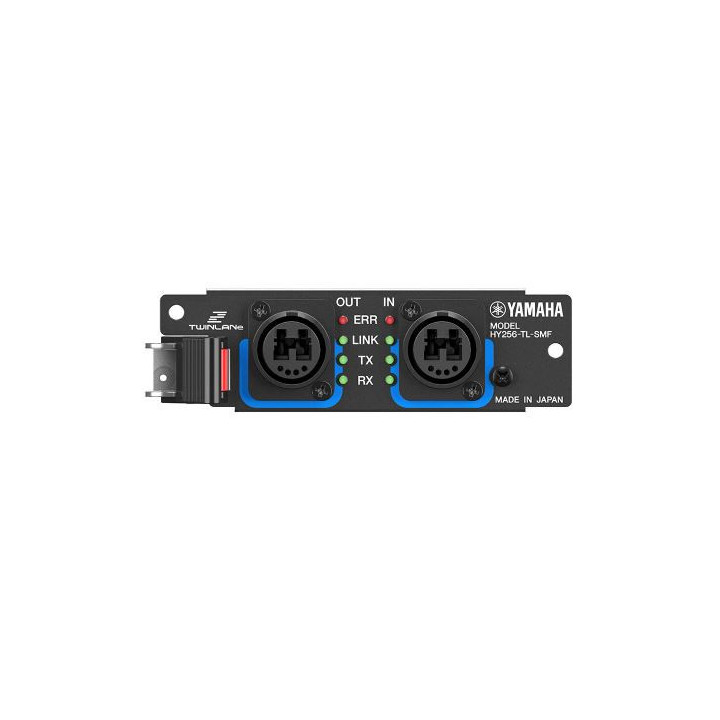

Yamaha HY256-TL-SMF - Audio Interface Card
1028204
4957812619851
TWINLANE 256 I / O channel card for mono mode fiber, for RIVAGE PM system
Visuals Price
4,430.80 CHF
VAT excl.
4,789.69 CHF Inc. VAT
Manufacturer price 5 035,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha Audio Interface Card
This digital I/O card supports the TWINLANe audio network protocol. Up to 256 simultaneous input and output channels at 96 kHz/32-bit are available, and single-mode fibre optic connections enable reliable data transfer over distances of up to 2 kilometres between connections in ring network configurations. The maximum total cable length of the TWINLANe ring network is 6 kilometres.
Features
- Can send/receive uncompressed digital audio signals of 32-bit 96 kHz quality, with a maximum of 256 inputs/256 outputs.
- Redundant connections are supported with ring topology.
- Indicators display the communication status, useful for troubleshooting.
- Recommended cable: Neutrik opticalCON DUO single-mode fibre optic
This digital I/O card supports the TWINLANe audio network protocol. Up to 256 simultaneous input and output channels at 96 kHz/32-bit are available, and single-mode fibre optic connections enable reliable data transfer over distances of up to 2 kilometres between connections in ring network configurations. The maximum total cable length of the TWINLANe ring network is 6 kilometres.
Features
- Can send/receive uncompressed digital audio signals of 32-bit 96 kHz quality, with a maximum of 256 inputs/256 outputs.
- Redundant connections are supported with ring topology.
- Indicators display the communication status, useful for troubleshooting.
- Recommended cable: Neutrik opticalCON DUO single-mode fibre optic
|
|
Specifications |
|
|
Sampling frequency range |
|
|
|
Conditions |
Fs = 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
|
|
Min. |
-1000 ppm |
|
|
Max. |
+1000 ppm |
|
|
Temperature range |
|
|
|
Operation |
0 to 40 °C (32 to 104 °F) |
|
|
Storage |
-20 to 60 °C (-4 to 140 °F) |
|
|
Digital input/output |
|
|
|
Terminal |
TWINLANe INPUT/OUTPUT |
|
|
Format |
TWINLANe |
|
|
Audio data length |
32-bit |
|
|
Transmission rate |
Optical 2.125 Gbps |
|
|
Number of channels |
256 inputs/256 outputs |
|
|
Connector |
opticalCON DUO |
|
|
Dimensions (W x H x D) |
125 mm x 37 mm x 207 mm (4.9" x 1.5" x 8.2") |
|
|
Net weight |
0.35 kg (0.8 lb) |
TWINLANE 256 I / O channel card for mono mode fiber, for RIVAGE PM system
