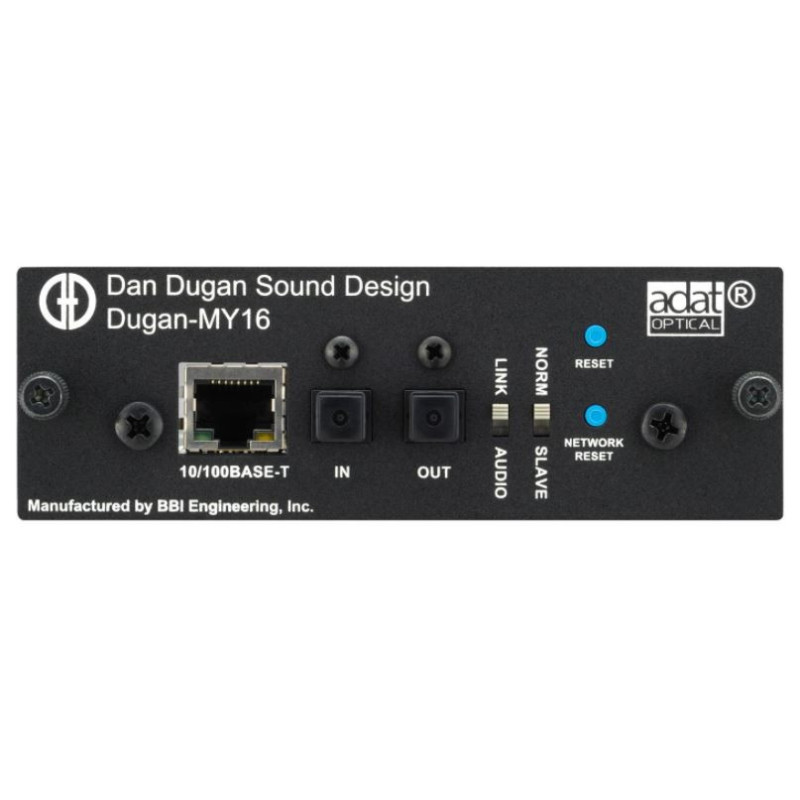

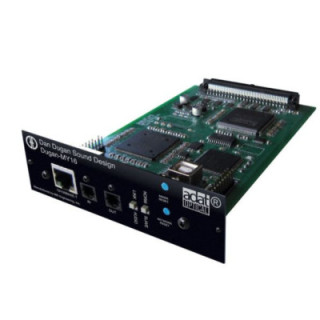

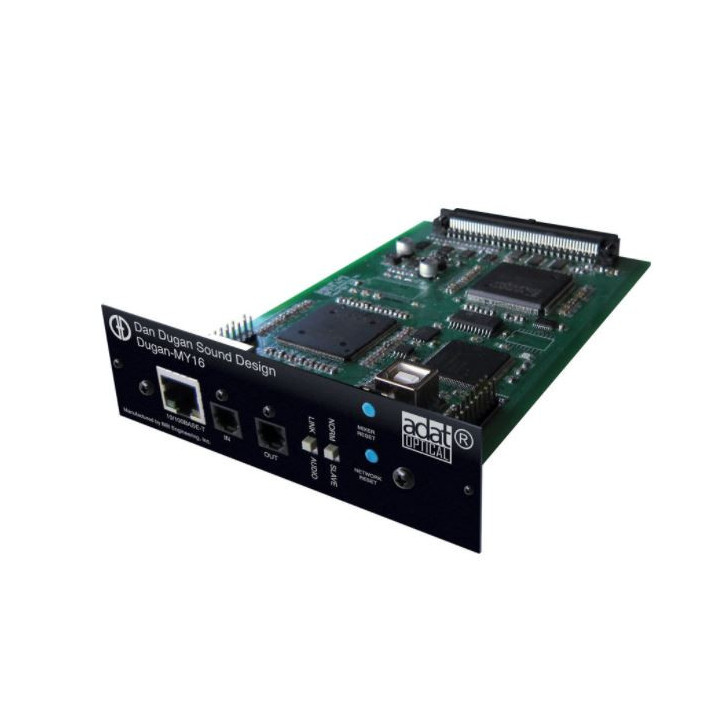

Yamaha DUGAN-MY16 - Automatic Mixing Controller Card
3,735.68 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Professional automation for multi-microphone mixing
The Dugan-MY16 is an automatic mixing card for Yamaha digital consoles that uses advanced technology from Dan Dugan Sound Design. When multiple microphone inputs need to be mixed without scripts or pre-programmed gain changes, the Dugan-MY16 can automatically optimise gain distribution across multiple faders, allowing the engineer to focus on mix quality rather than being chained to the faders. It's almost like having a talented assistant engineer monitoring fader levels, reducing overall workload and maximising efficiency.
Dan Dugan Sound Design
Dan Dugan Sound Design specialises in automatic mixing technology, led by Mr Dan Dugan, inventor of the automatic mixer. Initially licensed by Altec Corporation for their automatic mixers, the unique Dugan Speech System™ algorithm is now available in high-performance automatic mixing systems under the Dan Dugan Sound Design brand. Dan Dugan products have become industry standards in broadcast studios, conferences and houses of worship in the United States, valued for their exceptional performance and reliability.
Features
- 24-bit resolution, 16-input/16-output automatic mixing (8-input/8-output at 96 kHz)
- 2 optical connectors, 1 RJ-45 connector
- Up to 8 cards can be used simultaneously to handle up to 128 channels at 48 kHz, or 64 channels at 96 kHz
- Automatic detection of active microphones with individual and global automatic gain control
- No speech cut-off due to delayed fader activation, for smooth and uninterrupted sound
- Effective suppression of background noise and feedback without requiring noise-gate threshold adjustments
- Easy setup: simply insert on the appropriate input channels of the console and raise the faders
- Channels can be grouped to create up to three independent automatic mixers
- Dugan Control Panel software offers remote control and level monitoring capabilities
- Can also function as an 8-channel automatic mixer + 8-channel ADAT interface
|
|
Specifications |
|
|
Operating modes |
Standard: 16 Dugan mixing channels at 44.1 or 48 kHz, ADAT connectors allow linking of multiple Dugan units |
|
|
Digital I/O |
Optical ADAT, 24-bit, 44.2/48 kHz (shared mode only) |
|
|
Gain |
Unit |
|
|
Audio latency |
0.2 ms |
|
|
Optical link |
Up to 8 units can be linked in a ring; compatible with models D-2, D-3, E, E-1 and Dugan-MY16 |
|
|
Connectors |
10/100 BASE T: RJ-45 |
|
|
Recommended Yamaha mixing consoles |
CL5/3/1, PM5D/-RH, DSP5D, M7CL-48ES/-48/-32, LS9-32/-16, DM2000, DM1000, 02R96, 01V96/96i, DME64N/24N, MTX5-D |
|
|
Dimensions |
H = 4.0 cm (1.57") |
|
|
Weight |
160 g (5.6 oz) |
