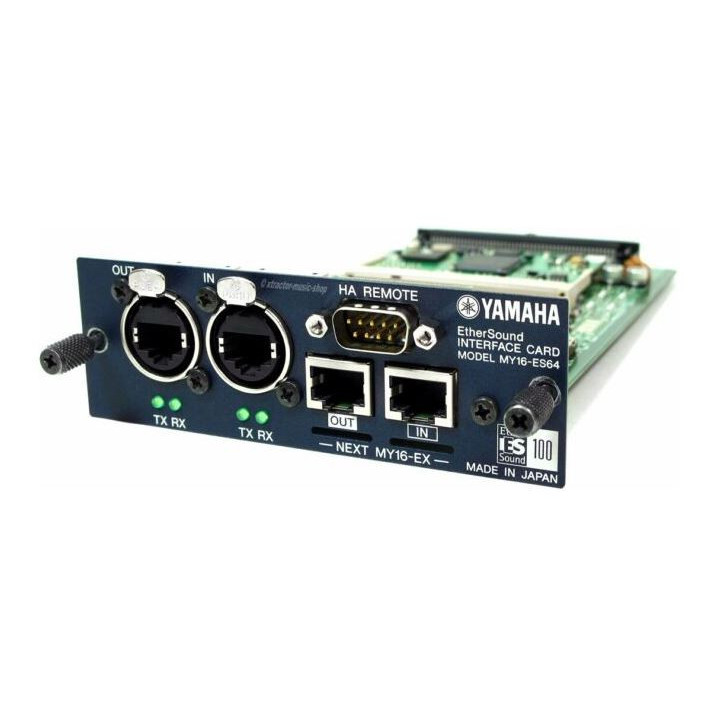

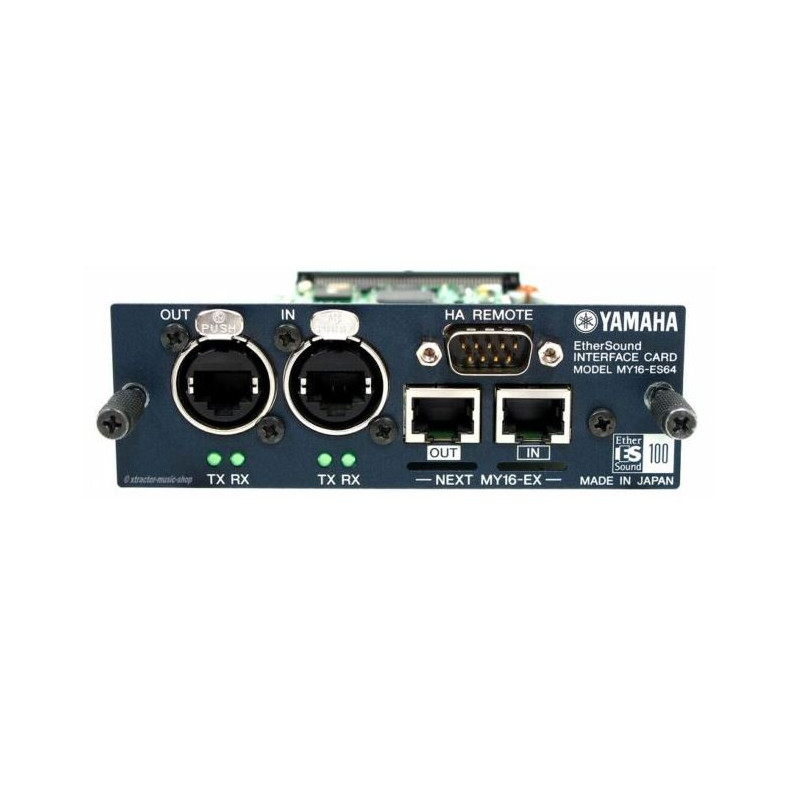

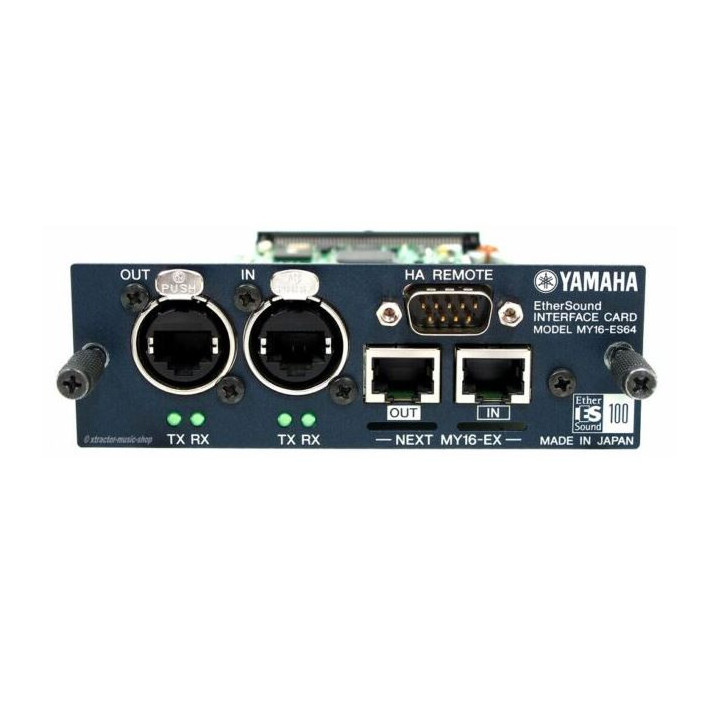

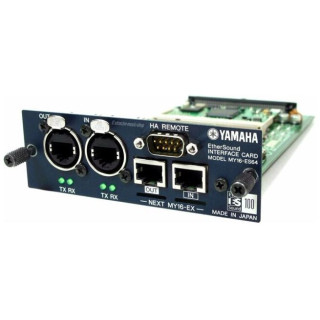

Yamaha MY16-ES64 - 16 Channel EtherSound I/O Card
48291
4957812383516
16 Channel EtherSound I/O Card (48kHz, 96kHz in Double Ch. Mode), 2 x EtherCon, 2 x RJ45
Visuals Price
1,529.44 CHF
VAT excl.
1,653.32 CHF Inc. VAT
Manufacturer price 1 738,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha 16 Channel EtherSound I/O Card
Yamaha has expanded its lineup of mini-YGDAI format cards with the introduction of MY16-ES64 EtherSound Interface card and MY16-EX expansion card.
EtherSound is the digital audio and control transfer protocol of choice for many modern live sound applications. Now with a single Yamaha MY16-ES64 card you can add 16channels of bidirectional EtherSound connectivity to a range of Yamaha professional audio devices that accept mini-YGDAI expansion cards. Simply add one, two or three MY16-EX expansion cards to the core MY16-ES64 card to increase the EtherSound channel capacity to 32, 48 or 64 channels.
As EtherSound is bidirectional, MY16-ES64 and MY16-EX cards work on both ends of the systems. You could, for example, equip your Yamaha digital mixer with an MY16-ES64 card and up to 3 MY16-EX cards to provide the required EtherSound input and output capability, and install complementary MY16-ES64 card and MY16-EX cards into on-stage Yamaha TXn-series power amplifier.
For input you could use Yamaha AD8HR remotely-controllable head amplifiers connected via a Yamaha NAI48-ES EtherSound Network Audio Interface. This Yamaha stage box solution can be achieved by using MY16-ES64 and MY16-EX cards, delivering high quality sound while keeping cabling requirements to a minimum.
Features
- 24bit resolution,16-in/16-out EtherSound (ES100) interface (8-in/8-out at 96kHz)
- Expandable to up to 64-in/64-out with MY16-EX expansion cards
- 2x etherCON CAT5 connectors for EtherSound I/O, 1x D-sub 9 pin connector for RS232-C, 2x RJ-45 connectors for MY16-EX connection
- Remote setup, patching and monitoring by AVS Monitor
Yamaha has expanded its lineup of mini-YGDAI format cards with the introduction of MY16-ES64 EtherSound Interface card and MY16-EX expansion card.
EtherSound is the digital audio and control transfer protocol of choice for many modern live sound applications. Now with a single Yamaha MY16-ES64 card you can add 16channels of bidirectional EtherSound connectivity to a range of Yamaha professional audio devices that accept mini-YGDAI expansion cards. Simply add one, two or three MY16-EX expansion cards to the core MY16-ES64 card to increase the EtherSound channel capacity to 32, 48 or 64 channels.
As EtherSound is bidirectional, MY16-ES64 and MY16-EX cards work on both ends of the systems. You could, for example, equip your Yamaha digital mixer with an MY16-ES64 card and up to 3 MY16-EX cards to provide the required EtherSound input and output capability, and install complementary MY16-ES64 card and MY16-EX cards into on-stage Yamaha TXn-series power amplifier.
For input you could use Yamaha AD8HR remotely-controllable head amplifiers connected via a Yamaha NAI48-ES EtherSound Network Audio Interface. This Yamaha stage box solution can be achieved by using MY16-ES64 and MY16-EX cards, delivering high quality sound while keeping cabling requirements to a minimum.
Features
- 24bit resolution,16-in/16-out EtherSound (ES100) interface (8-in/8-out at 96kHz)
- Expandable to up to 64-in/64-out with MY16-EX expansion cards
- 2x etherCON CAT5 connectors for EtherSound I/O, 1x D-sub 9 pin connector for RS232-C, 2x RJ-45 connectors for MY16-EX connection
- Remote setup, patching and monitoring by AVS Monitor
|
|
Specifications |
|
|
Channel Count |
16IN / 16OUT |
|
|
Format |
EtherSound |
|
|
Resolution |
24 bit |
|
|
Connector |
2x EtherCon (for EtherSound), |
16 Channel EtherSound I/O Card (48kHz, 96kHz in Double Ch. Mode), 2 x EtherCon, 2 x RJ45
