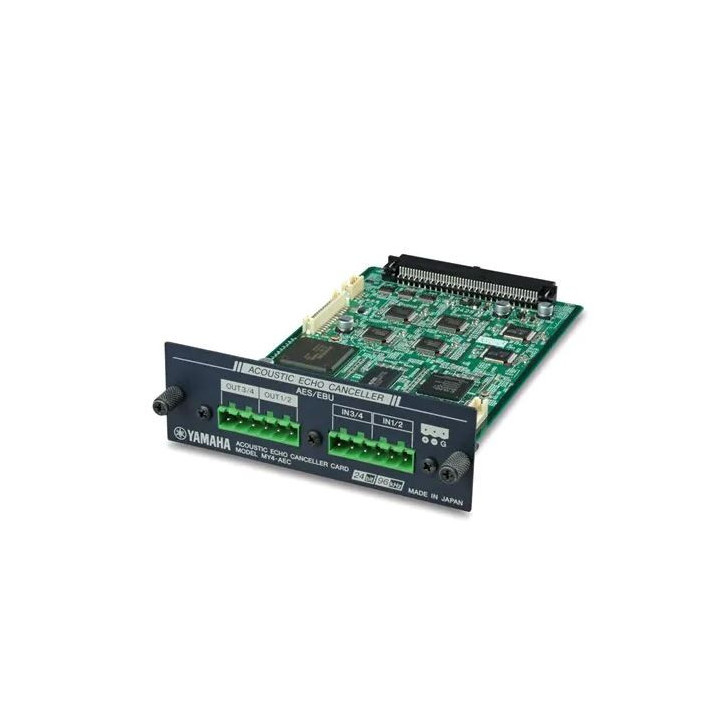

Yamaha MY4-AEC - 4 channel acoustic echo cancellation card
48295
4957812502092
4 channel acoustic echo cancellation card for remote conferencing
Visuals Price
2,114.64 CHF
VAT excl.
2,285.93 CHF Inc. VAT
Manufacturer price 2 403,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha 4 Channel Acoustic Echo Cancellation Card
4-Channel Acoustic Echo Canceller Card for Yamaha DME64N/24N, MTX5-D and MRX7-D
The MY4-AEC card provides 4 channels of acoustic echo cancellation for remote conferencing using Yamaha's DME24N and DME64N digital mixing engines. As well as the echo cancellation function, the MY4-AEC card also offers a noise reduction function which removes steady-state background noise such as air conditioning and projector fans etc. The card also has a feedback suppressor with 42 notch filters per channel to aid the suppression of feedback in PA systems. Any of the 8 internal mic/line inputs of the DME24N can be routed to the MY4-AEC. In the case of the DME64N, any of the MY card slots or CASCADE bus can route to the MY4-AEC. The AES/EBU inputs and outputs (with sample rate conversion) can route to either the MY4-AEC or be used independently in a DME design.
4ch Adaptive Echo Canceller
The MY4-AEC has 4 channels of adaptive echo cancelling which can automatically find the appropriate setting of AEC according to the environment and the equipment being used. It can be used for multi-location meetings and in large conference rooms.Thanks to its very long 'tail length' (delay time), the MY4-AEC can remove very long delays (max 400ms) and can provide clear sound even when used in very large rooms or for long distance conferencing. As DME/MTX5-D units are easily connected into PA systems, it also makes a noticeable difference in very large rooms where sound reinforcement is required and remote participants are involved.
HD Sound Quality
Web-based remote conferencing is becoming more popular and the sound quality is better than former systems utilising telephone lines. The MY4-AEC can support a wide frequency range (20-20kHz) ensuring a natural sound for conversation.The sampling rate of the MY4-AEC is 48kHz but it can be used in 96kHz systems by reducing capacity from 4 to 2 channels (96kHz mode is only available for DME64N/DME24N).
4ch Feedback Suppressor and Noise Reduction
In large conference rooms or auditoriums where microphones are used with a PA for voice amplification, the MY4-AEC's 4-ch feedback suppressor employs 42 notch filter bands per channel. Each channel also has Width and Depth parameters that can be adjusted to achieve optimum level.The MY4-AEC is also equipped with a powerful noise reduction function. Any constant, disturbing fan or air conditioning noise can be attenuated, further maximising the performance of the echo canceller.
Additional 4ch AES/EBU I/O with Sampling Rate Converter
To facilitate the use of other digital equipment, the MY4-AEC card has 4ch AES/EBU I/O. The I/O ports have sampling rate converters ensuring easy connection to equipment with different sampling rates.
Easy Operation with DME Designer and MTX Editor
With DME Designer for DME24N/DME64N and MTX Editor for MTX5-D it is possible to optimise the performance of all the Acoustic Echo Canceller parameters (In case of DME24N/DME64N, DME Designer V4.0 and compatible hardware required).To use with MTX Editor, the template files are provided for your simple setup. Template files are included with the download of MTX Editor V1.2.
Features
- 24bit resolution, 4-in/4-out adaptive echo canceller
- 4x Euroblock connectors
- HD sound quality
- 4ch feedback suppressor and noise reduction
- Additional 4ch AES/EBU I/O with sampling rate converter
- Easy operation with DME Designer and MTX-MRX Editor
4-Channel Acoustic Echo Canceller Card for Yamaha DME64N/24N, MTX5-D and MRX7-D
The MY4-AEC card provides 4 channels of acoustic echo cancellation for remote conferencing using Yamaha's DME24N and DME64N digital mixing engines. As well as the echo cancellation function, the MY4-AEC card also offers a noise reduction function which removes steady-state background noise such as air conditioning and projector fans etc. The card also has a feedback suppressor with 42 notch filters per channel to aid the suppression of feedback in PA systems. Any of the 8 internal mic/line inputs of the DME24N can be routed to the MY4-AEC. In the case of the DME64N, any of the MY card slots or CASCADE bus can route to the MY4-AEC. The AES/EBU inputs and outputs (with sample rate conversion) can route to either the MY4-AEC or be used independently in a DME design.
4ch Adaptive Echo Canceller
The MY4-AEC has 4 channels of adaptive echo cancelling which can automatically find the appropriate setting of AEC according to the environment and the equipment being used. It can be used for multi-location meetings and in large conference rooms.Thanks to its very long 'tail length' (delay time), the MY4-AEC can remove very long delays (max 400ms) and can provide clear sound even when used in very large rooms or for long distance conferencing. As DME/MTX5-D units are easily connected into PA systems, it also makes a noticeable difference in very large rooms where sound reinforcement is required and remote participants are involved.
HD Sound Quality
Web-based remote conferencing is becoming more popular and the sound quality is better than former systems utilising telephone lines. The MY4-AEC can support a wide frequency range (20-20kHz) ensuring a natural sound for conversation.The sampling rate of the MY4-AEC is 48kHz but it can be used in 96kHz systems by reducing capacity from 4 to 2 channels (96kHz mode is only available for DME64N/DME24N).
4ch Feedback Suppressor and Noise Reduction
In large conference rooms or auditoriums where microphones are used with a PA for voice amplification, the MY4-AEC's 4-ch feedback suppressor employs 42 notch filter bands per channel. Each channel also has Width and Depth parameters that can be adjusted to achieve optimum level.The MY4-AEC is also equipped with a powerful noise reduction function. Any constant, disturbing fan or air conditioning noise can be attenuated, further maximising the performance of the echo canceller.
Additional 4ch AES/EBU I/O with Sampling Rate Converter
To facilitate the use of other digital equipment, the MY4-AEC card has 4ch AES/EBU I/O. The I/O ports have sampling rate converters ensuring easy connection to equipment with different sampling rates.
Easy Operation with DME Designer and MTX Editor
With DME Designer for DME24N/DME64N and MTX Editor for MTX5-D it is possible to optimise the performance of all the Acoustic Echo Canceller parameters (In case of DME24N/DME64N, DME Designer V4.0 and compatible hardware required).To use with MTX Editor, the template files are provided for your simple setup. Template files are included with the download of MTX Editor V1.2.
Features
- 24bit resolution, 4-in/4-out adaptive echo canceller
- 4x Euroblock connectors
- HD sound quality
- 4ch feedback suppressor and noise reduction
- Additional 4ch AES/EBU I/O with sampling rate converter
- Easy operation with DME Designer and MTX-MRX Editor
|
|
Specifications |
|
|
Compatible Hosts |
DME24N, DME64N: V4.0 or later software is required |
|
|
Sampling Frequency |
DME24N, DME64N: 44.1kHz, 48kHz, 88.2kHz, 96kHz (-10%, +6%) |
|
|
AES/EBU In 1/2, 3/4 |
AES/EBU - 24bit - RS422 - Euroblock |
|
|
AES/EBU Out 1/2, 3/4 |
AES/EBU - 24bit - RS422 - Euroblock |
|
|
Signal Processing |
Adaptive Echo Canceller, Feedback Suppressor Noise Reduction, Matrix Mixer |
|
|
Frequency Range |
20Hz to 20kHz |
|
|
Arrival Time of Direct Sound |
120ms maximum |
|
|
Echo Time Delay |
400ms maximum |
|
|
Echo Cancelling Capacity |
60dB maximum |
|
|
Noise Reduction |
17dB maximum |
4 channel acoustic echo cancellation card for remote conferencing
