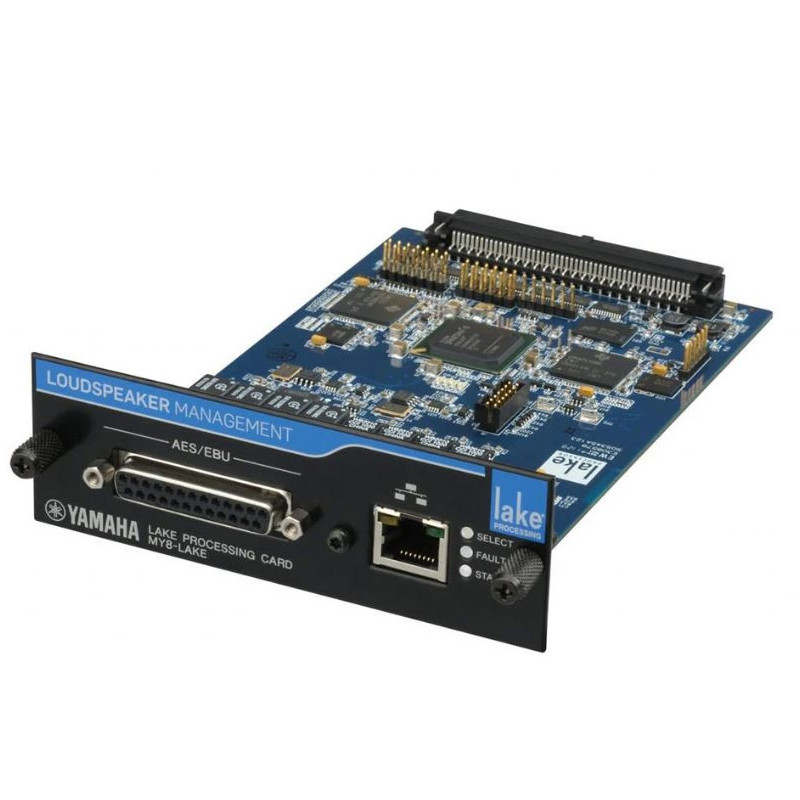

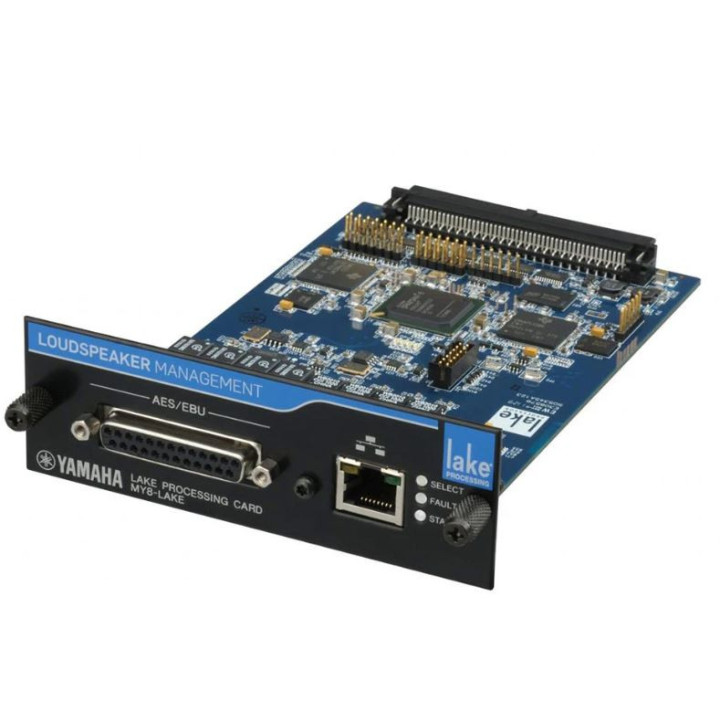

Yamaha MY8-LAKE - Featuring advanced Lake Processing
48298
4957812512138
Featuring advanced Lake Processing. Up to 8 ch. I/O in Mesa Mode, 4 inputs/12 outputs
Visuals Price
3,091.44 CHF
VAT excl.
3,341.85 CHF Inc. VAT
Manufacturer price 3 513,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha Featuring Advanced Lake Processing
Lake Processing has become the de-facto standard for speaker processing in live sound applications. The MY8-LAKE is a DSP card for Yamaha digital mixing consoles, developed through close technological cooperation between Yamaha and Lake. The full power of Mesa EQ, Ideal Graphic EQ, and Linear Phase Crossover functions are packed into one compact card, providing immense processing capability and precise, intuitive control right at your fingertips.
Features
- 8-in/8-out Mesa mode (system EQ), 4-in/12-out Contour mode (crossover), or a combination of both for versatile processing.
- 96 kHz internal processing, supporting 44.1 kHz, 48 kHz, and 88.2 kHz sample rates.
- Compatible with Smaart sound system measurement software for efficient, effective speaker tuning.
- Flexible system setup via Yamaha digital mixer insert points and MY8-LAKE card AES/EBU connectors.
- Lake Controller software application allows comprehensive overall management of all Lake devices in the system.
- Over 1,000 speaker presets included for fast, accurate tuning with a wide range of systems.
Lake Processing has become the de-facto standard for speaker processing in live sound applications. The MY8-LAKE is a DSP card for Yamaha digital mixing consoles, developed through close technological cooperation between Yamaha and Lake. The full power of Mesa EQ, Ideal Graphic EQ, and Linear Phase Crossover functions are packed into one compact card, providing immense processing capability and precise, intuitive control right at your fingertips.
Features
- 8-in/8-out Mesa mode (system EQ), 4-in/12-out Contour mode (crossover), or a combination of both for versatile processing.
- 96 kHz internal processing, supporting 44.1 kHz, 48 kHz, and 88.2 kHz sample rates.
- Compatible with Smaart sound system measurement software for efficient, effective speaker tuning.
- Flexible system setup via Yamaha digital mixer insert points and MY8-LAKE card AES/EBU connectors.
- Lake Controller software application allows comprehensive overall management of all Lake devices in the system.
- Over 1,000 speaker presets included for fast, accurate tuning with a wide range of systems.
|
|
Specifications |
|
|
Sampling Frequency |
|
|
|
Mini-YGDAI I/F AES/EBU Input/Output |
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
|
|
Internal Operating Frequency |
96 kHz |
|
|
Signal Delay |
|
|
|
Best case (synchronous 96 kHz to synchronous 96 kHz) from AES input to AES output via module (Contour or Mesa) |
0.7185 ms |
|
|
Power Requirements |
maximum 3W |
|
|
Temperature range |
|
|
|
Operating |
0 to 40 °C (32 to 104 °F) |
|
|
Storage |
-20 to 60 °C (-4 to 140 °F) |
|
|
I/O |
|
|
|
AES/EBU (In/Out Ch 1-8) |
AES/EBU - 24 bit - 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz (I/O individually selectable per Ch) - RS422 - D-sub 25 pin |
|
|
NETWORK (Ethernet) |
10Base-T/100Base-T - RJ-45 |
Featuring advanced Lake Processing. Up to 8 ch. I/O in Mesa Mode, 4 inputs/12 outputs
