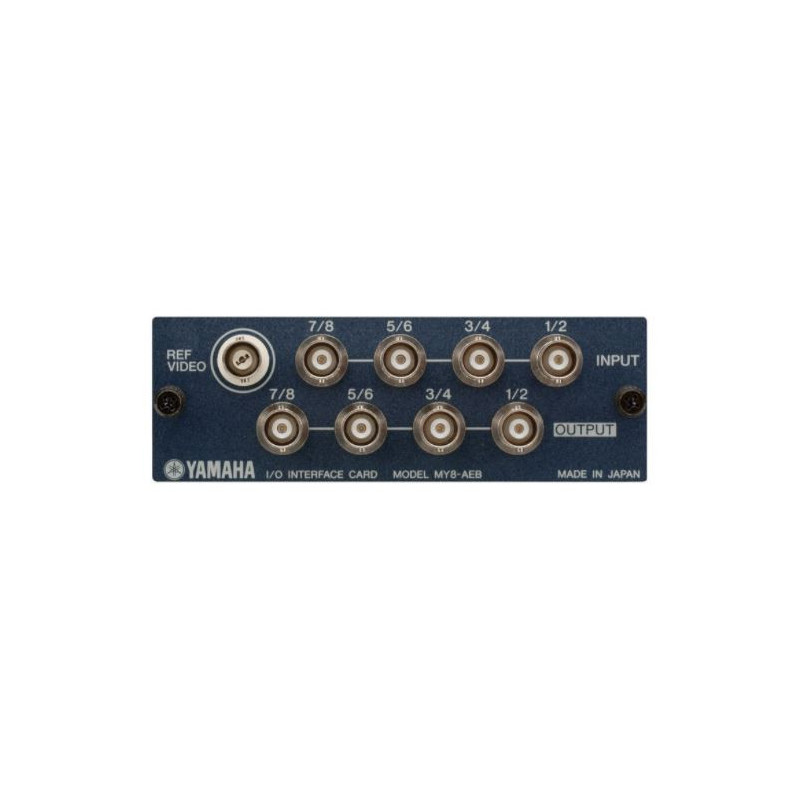

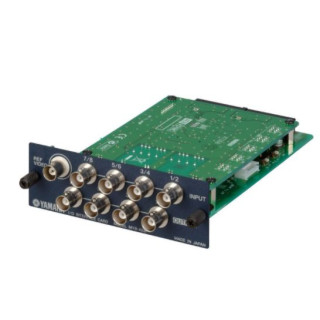

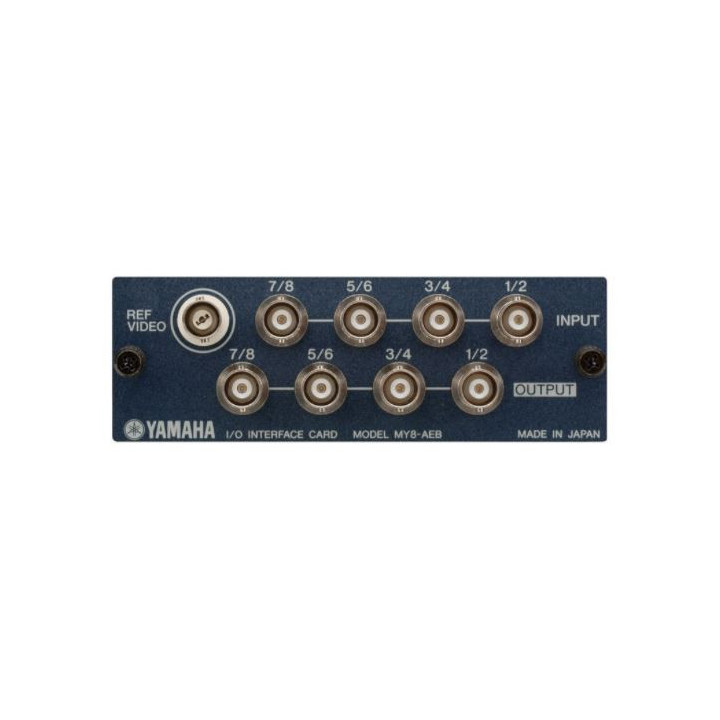

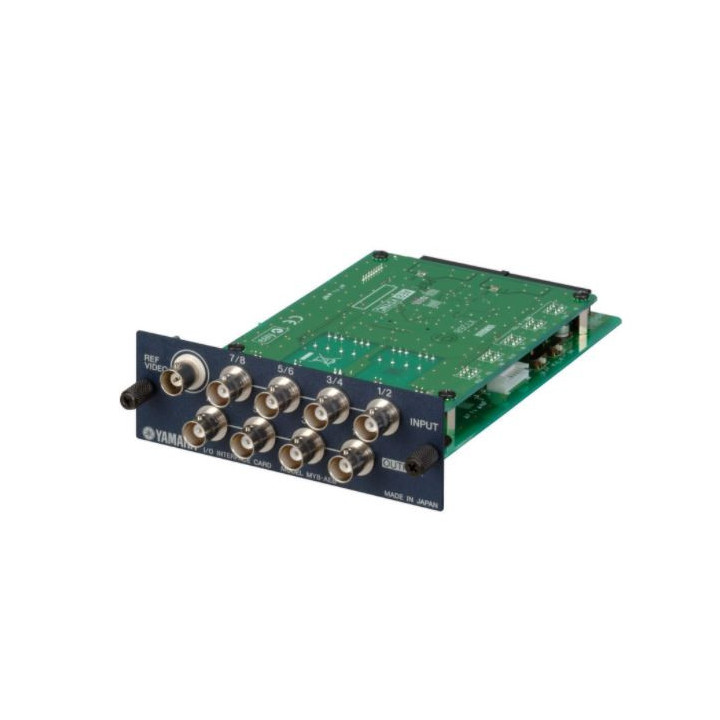

Yamaha MY8-AEB - 8 Channel AES/EBU AES-3id I/O card
48319
4957812330398
8 Channel AES/EBU (AES-3id) I/O card (44.1/48kHz w/REF Video Input), 9 x BNC
Visuals Price
2,870.56 CHF
VAT excl.
3,103.08 CHF Inc. VAT
Manufacturer price 3 262,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha 8-Channel AES/EBU AES-3id Input/Output Card
The Yamaha MY8-AEB is an eight-channel AES/EBU digital audio input/output interface for compatible Yamaha digital audio products. It features four stereo inputs and four stereo outputs in the form of 75 Ohm BNC connectors. A REF video input is also provided to receive an NTSC or PAL reference video signal allowing the reference clock of the device in which the MY8-AEB is installed to be synchronised.
For exceptional reliability, the MY8-AEB uses Yamaha's eXi-Clock function, capable of maintaining reference clock generation even in the event of an interruption to the video signal. Perfect for broadcast applications, the MY8-AEB is an excellent choice for maintaining high-quality audio synchronised with a wide range of video sources.
Features
- Eight audio input/output channels compliant with the AES-3id-1995 standard with 75 Ohm BNC connectors
- BNC REF video input connector accepting PAL or NTSC signals
- eXi-Clock function maintaining reference clock generation in the event of an interruption to the reference video
- Connectors: 4 x BNC Audio Input
4 x BNC Audio Output
1 x BNC REF Video Input
- Sampling frequency: 48 kHz, 44.1 kHz (Pull Up/Down 0.1%, 4%)
The Yamaha MY8-AEB is an eight-channel AES/EBU digital audio input/output interface for compatible Yamaha digital audio products. It features four stereo inputs and four stereo outputs in the form of 75 Ohm BNC connectors. A REF video input is also provided to receive an NTSC or PAL reference video signal allowing the reference clock of the device in which the MY8-AEB is installed to be synchronised.
For exceptional reliability, the MY8-AEB uses Yamaha's eXi-Clock function, capable of maintaining reference clock generation even in the event of an interruption to the video signal. Perfect for broadcast applications, the MY8-AEB is an excellent choice for maintaining high-quality audio synchronised with a wide range of video sources.
Features
- Eight audio input/output channels compliant with the AES-3id-1995 standard with 75 Ohm BNC connectors
- BNC REF video input connector accepting PAL or NTSC signals
- eXi-Clock function maintaining reference clock generation in the event of an interruption to the reference video
- Connectors: 4 x BNC Audio Input
4 x BNC Audio Output
1 x BNC REF Video Input
- Sampling frequency: 48 kHz, 44.1 kHz (Pull Up/Down 0.1%, 4%)
8 Channel AES/EBU (AES-3id) I/O card (44.1/48kHz w/REF Video Input), 9 x BNC
