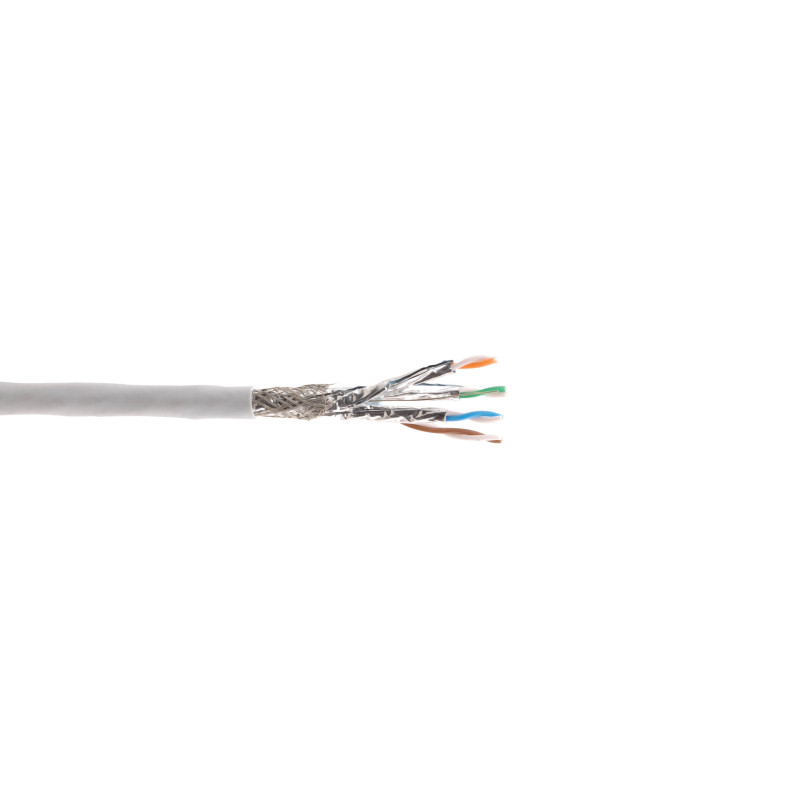

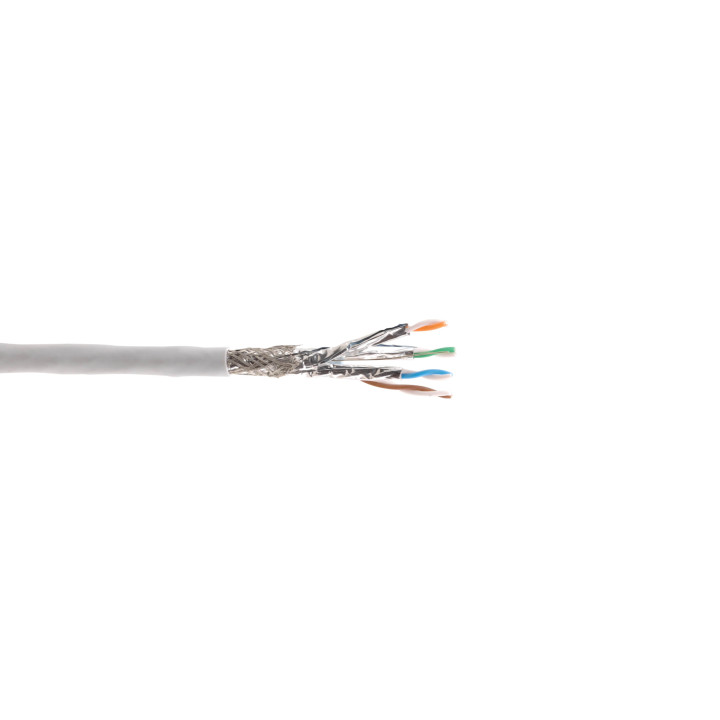

Kramer Optimised 23 AWG STP Bulk Cable, 100 m
Kramer's BC-DGKat7a23 is a 4-pair S/FTP cable (braided shield around shielded twisted pairs) designed as the ideal companion to Kramer's digital twisted pair transceiver sets to provide optimal range and performance. The cable is optimised for new 10GBase-T applications as defined in IEEE 802.3an standard and for PoE+.
Note: Requires special RJ-45 connector for 23 AWG cable
- Quality construction - 4 twisted pairs individually shielded with aluminium foil (S/FTP), wired with a drain conductor and overall braided shield.
- Optimised for Kramer equipment - For use with one of Kramer's many digital twisted pair transceiver sets. To be terminated with shielded RJ-45 connectors.
- Length - Available in pull boxes of 100/305 m (328/1000 feet).



Specification



Construction

Conductor size: 23 AWG solid bare copper

Total number of wires: 8

Internal shield material: Polyaluminium foil

Drain wire: 0.41 mm (0.016 in) solid tinned copper

Overall shield material: Tinned copper braid

Conductor colour code: White/blue, white/orange, white/green, white/brown

Diameters

Outside diameter: 8.1 mm nominal

Electrical

Frequency range: 1 to 1200 MHz

Propagation delay offset: 20 ns/100 m max

Propagation speed: 80% nominal

Impedance: 100 Ω

DC resistance: 65 Ω/km (21 Ω/1000 feet) at 20°C nominal

Maximum unbalanced resistance: 2%

Capacitance: 1.2 pF/m max

Temperature: –40° to +65°C (–40° to 149°F)

Attenuation (dB per 100 feet): –1.8 dB at 1 MHz

Attenuation (dB per 100 feet): –4.9 dB at 10 MHz

Attenuation (dB per 100 feet): –15.7 dB at 100 MHz

Attenuation (dB per 100 feet): –27.8 dB at 300 MHz

Attenuation (dB per 100 feet): –40.0 dB at 600 MHz

Attenuation (dB per 100 feet): –52.7 dB at 1000 MHz

Regulation

Standards: IEC 61156, ISO/IEC 11801, RoHS 2011/65/EU
