Kramer BC-DGKat7a23-305M - 23 AWG STP Bulk Cable Optimized

1010806
Kramer BC-DGKat7a23-305M - 23 AWG STP Bulk Cable Optimized
Kramer BC-DGKat7a23-305M - 23 AWG STP Bulk Cable Optimized
23 AWG STP Bulk Cable Optimized for Kramer DVI & HDMI Products
... learn more
Visuals Price
1,368.50 CHF VAT excl.

1,479.35 CHF Inc. VAT

Manufacturer price 1 610,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Kramer optimised 23 AWG STP bulk cable, 305m

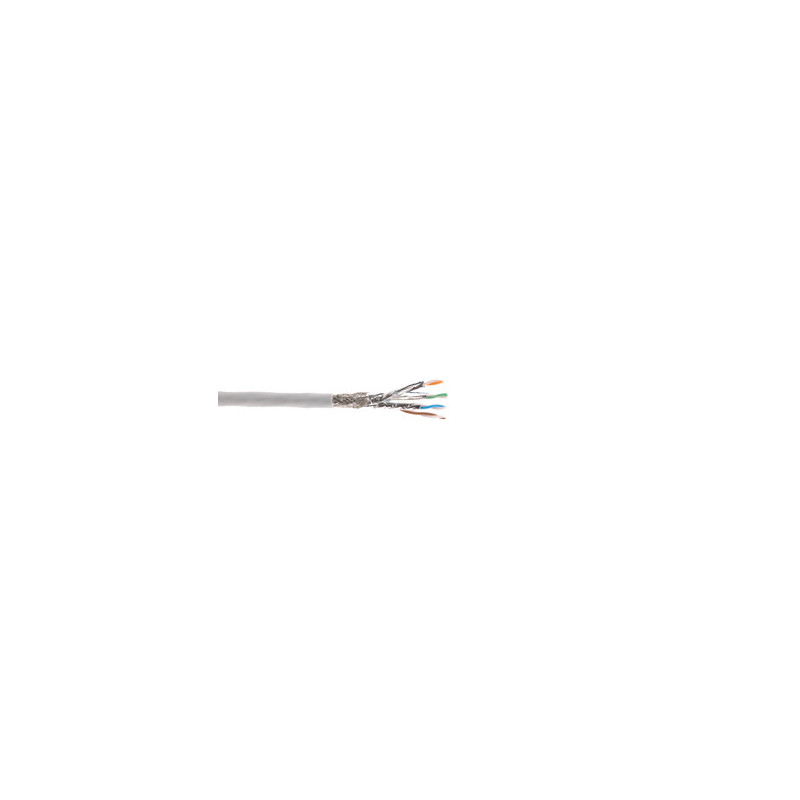

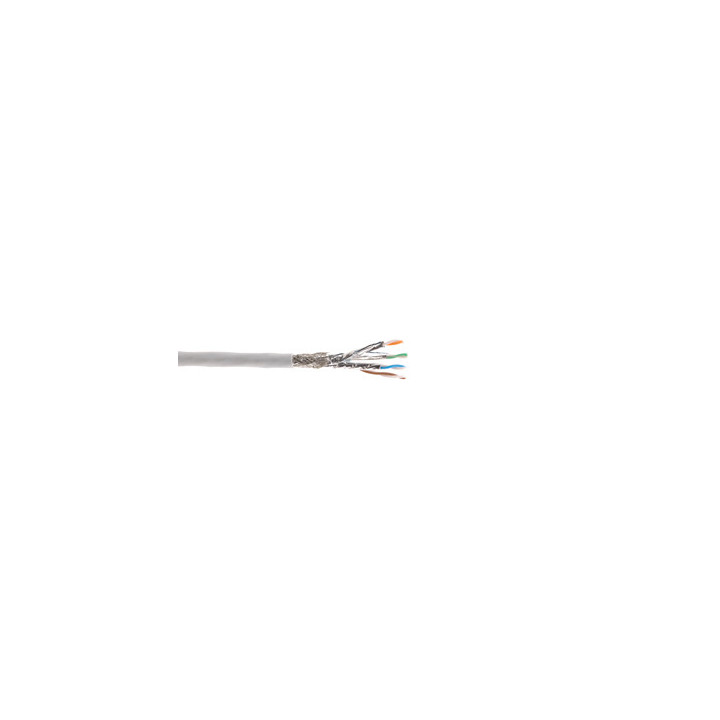

Kramer's BC-DGKat7a23 is a 4-pair S/FTP (braided shielding around foil-shielded twisted pairs) cable designed as the ideal companion for Kramer's digital twisted pair transceiver sets to deliver optimal range and performance. The cable is optimised for new 10GBase-T applications as defined in IEEE 802.3an and for PoE+.
- Quality construction: 4 individually foil-shielded twisted pairs (S/FTP), wired with a drain conductor and an overall braided shield.
- Optimised for Kramer equipment: For use with any of Kramer's extensive range of digital twisted pair transceiver sets. To be terminated with shielded RJ-45 connectors.
- Length: Available in 100/305m (328/1000ft) pull boxes.



Specification



Construction

Conductor size: 23 AWG solid bare copper

Total number of wires: 8

Internal shield material: Poly foil aluminium

Drain wire: 0.41mm (0.016in) solid tinned copper

Overall shield material: Tinned copper braid

Conductor colour code: White/blue, white/orange, white/green, white/brown

Diameters

Outer diameter: 8.1mm nominal

Electrical

Frequency range: 1 to 1200MHz

Propagation delay offset: 20ns/100m max

Propagation speed: 80% nominal

Impedance: 100Ω

DC resistance: 65Ω/km (21Ω/1000ft) @20°C nominal

Unbalanced resistance max: 2%

Capacitance: 1.2pF/m max

Temperature: –40° to +65°C (–40° to 149°F)

Attenuation (dB per 100ft): –1.8dB @1MHz

Attenuation (dB per 100ft): –4.9dB @10MHz

Attenuation (dB per 100ft): –15.7dB @100MHz

Attenuation (dB per 100ft): –27.8dB @300MHz

Attenuation (dB per 100ft): –40.0dB @600MHz

Attenuation (dB per 100ft): –52.7dB @1000MHz

Regulatory

Standards: IEC 61156, ISO/IEC 11801, RoHS 2011/65/EU



23 AWG STP Bulk Cable Optimized for Kramer DVI & HDMI Products
