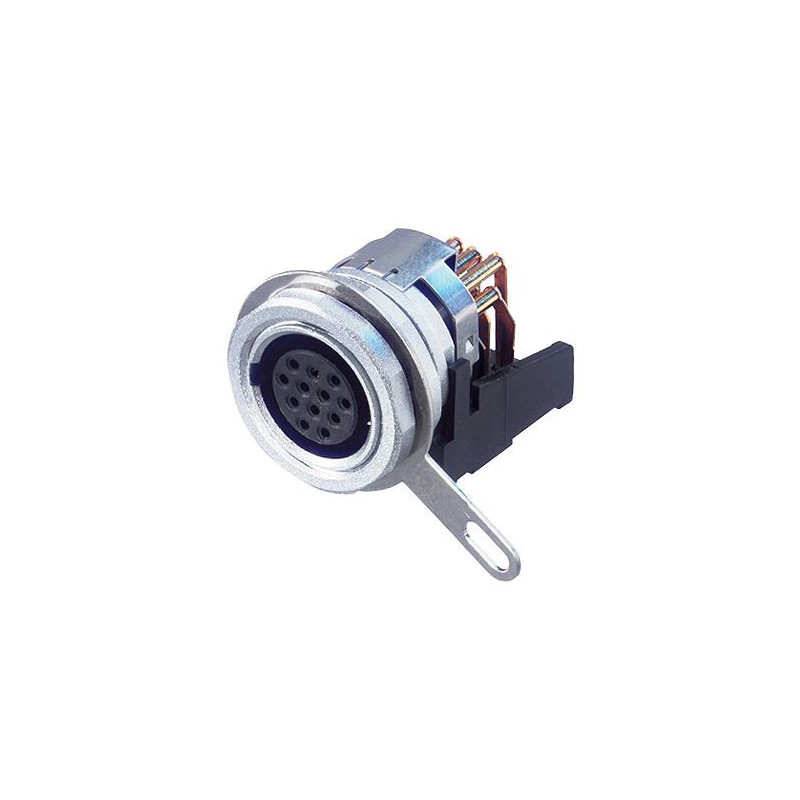

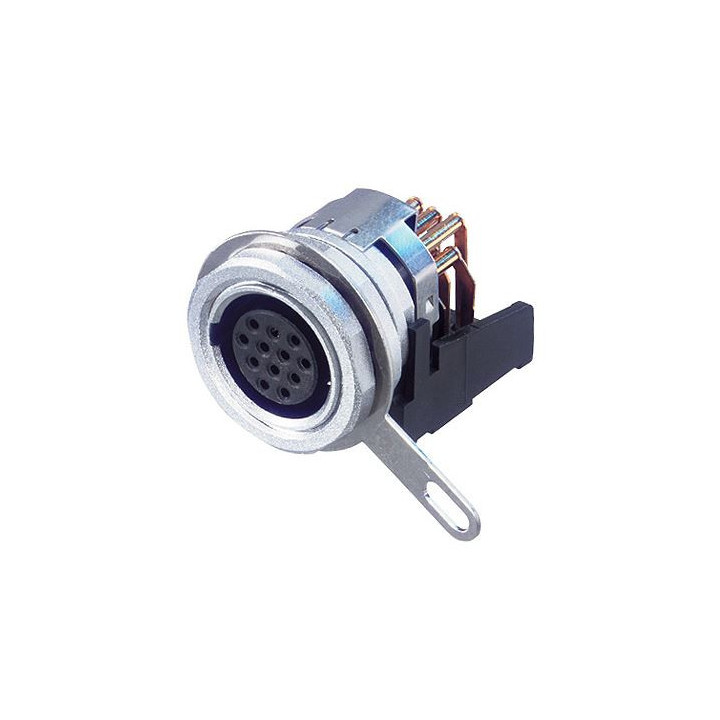

Contrik MPF12-H - miniCON 12 pole female chassis connector, horizontal PCB mount

1029593
Contrik MPF12-H - miniCON 12 pole female chassis connector, horizontal PCB mount
Contrik MPF12-H - miniCON 12 pole female chassis connector, horizontal PCB mount
miniCON 12 pole female chassis connector, horizontal PCB mount
... learn more
Visuals Price
28.09 CHF VAT excl.

30.37 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Neutrik miniCON 12-pole female connector for panel mounting, horizontal PCB mounting
The miniCON with its flexible and compact design is perfectly suited for multipole/industrial applications. This robust all-metal miniature connector is equipped with a push-pull locking system and stands out for its excellent value for money.
Features
- Satin chrome housing
- Automatic push-pull locking system
- Robust precision-machined all-metal construction
- Gold-plated contacts
- Fully equipped for panel mounting and horizontal PCB mounting




Specifications



Connection type

miniCON

Gender

Female

Contact resistance

≤ 8 mΩ

Dielectric strength

1 kVDC

Insulation resistance

> 0.5 GΩ

Rated current per contact

3 A

Rated voltage

< 50 V

Insertion force

< 25 N

Cable cross-section

0.5 mm²

Cable cross-section

20 AWG

Wiring

Horizontal PCB mounting

Locking mechanism

Push-Pull

Mounting orientation

Rear mounting

Housing shape

14.10 mm

Contact plating

0.2 µm AuCo

Contacts

Bronze (CuSn6)

Insert

Polyamide (PA 6.6)

Housing

Die-cast Zamak (ZnAl4Cu1)

Flammability

UL 94 V-0

Protection class

IP 5X

Solderability

Compliant with IEC 68-2-20

Temperature range

-30 °C to +80 °C



miniCON 12 pole female chassis connector, horizontal PCB mount
