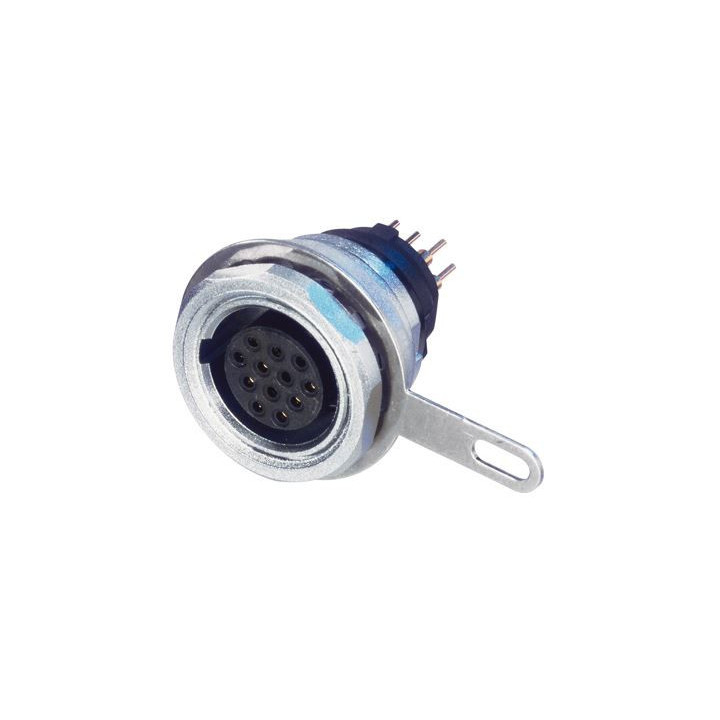

Contrik MPF12-V - miniCON 12 pole female chassis connector, vertical PCB mount

1029594
Contrik MPF12-V - miniCON 12 pole female chassis connector, vertical PCB mount
Contrik MPF12-V - miniCON 12 pole female chassis connector, vertical PCB mount
miniCON 12 pole female chassis connector, vertical PCB mount
... learn more
Visuals Price
19.30 CHF VAT excl.

20.86 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

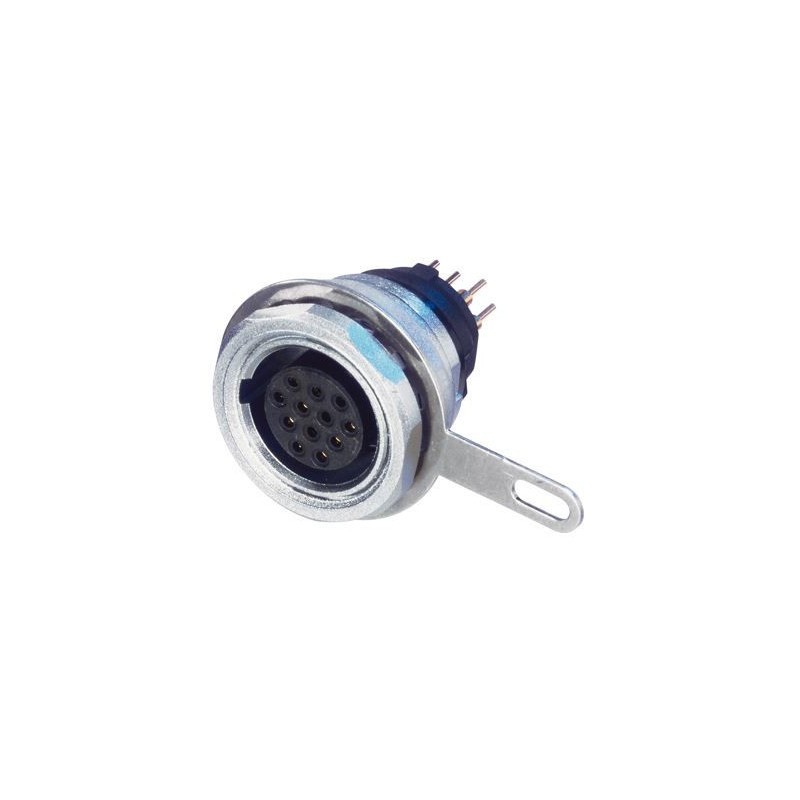

Neutrik MiniCON 12-pole female chassis connector, vertical PCB mounting
The miniCON with its flexible and compact design is perfectly suited for multipole/industrial applications. This robust all-metal miniature connector is equipped with a push-pull locking mechanism and stands out for its excellent value for money.
Features
- Velvet satin chrome housing
- Push-pull auto-locking system
- Robust precision-machined all-metal construction
- Gold-plated contacts
- Fully equipped base for vertical PCB mounting




Specifications



Connection type

miniCON

Type

Female

Contact resistance

≤ 8 mΩ

Dielectric strength

1 kVDC

Insulation resistance

> 0.5 GΩ

Rated current per contact

3 A

Rated voltage

< 50 V

Cable cross-section

0.5 mm²

Cable cross-section

20 AWG

Wiring

Vertical PCB mounting

Locking mechanism

Push-Pull

Mounting direction

Rear mounting

Housing shape

14.10 mm

Contact plating

0.2 µm AuCo

Contacts

Bronze (CuSn6)

Insert

Polyamide (PA 6.6)

Housing

Die-cast Zamak (ZnAl4Cu1)

Flammability

UL 94 V-0

Protection class

IP 5X

Solderability

Compliant with IEC 68-2-20

Temperature range

-30 °C to +80 °C
