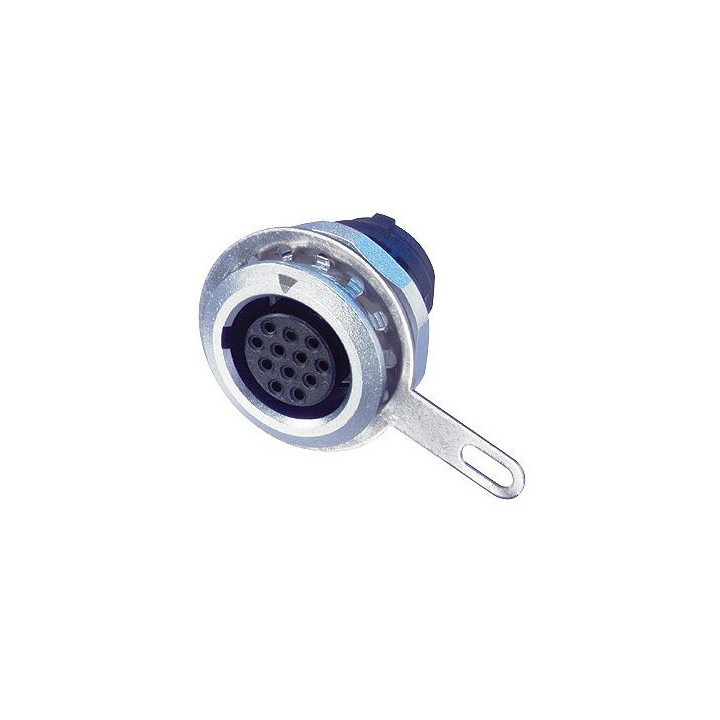

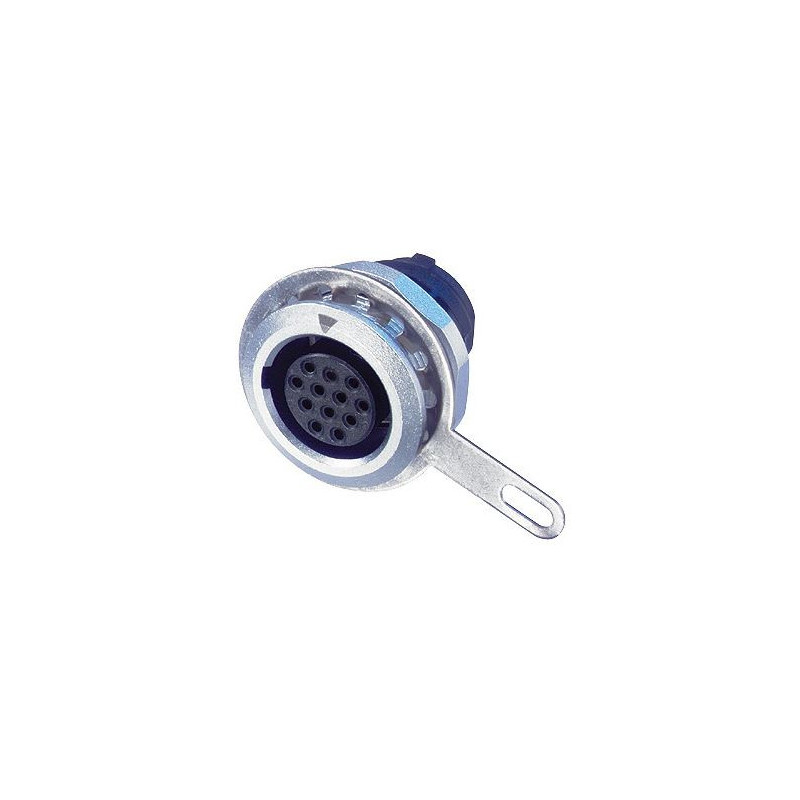

Contrik MRF12 - miniCON 12 pole female chassis connector panel mount, solder contacts

1029599
Contrik MRF12 - miniCON 12 pole female chassis connector panel mount, solder contacts
Contrik MRF12 - miniCON 12 pole female chassis connector panel mount, solder contacts
miniCON 12 pole female chassis connector panel mount, solder contacts
... learn more
Visuals Price
19.64 CHF VAT excl.

21.23 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Neutrik miniCON 12-pole female connector for panel mounting, panel mounting, solder contacts
The miniCON with its flexible and compact design is perfectly suited for multipole/industrial applications. This robust all-metal miniature connector features a push-pull locking system and stands out for its excellent value for money.
Features
- Easy assembly: soldering the contacts in the disassembled state avoids complex wiring of high-density contacts.
- Satin chrome housing
- Automatic push-pull locking system
- Robust, precision-machined all-metal construction
- Gold-plated contacts




Specifications



Connection type

miniCON

Gender

female

Contact resistance

≤ 8 mΩ

Dielectric strength

1 kVdc

Insulation resistance

> 0.5 GΩ

Rated current per contact

3 A

Rated voltage

< 50 V

Insertion force

< 25 N

Cable cross-section

0.5 mm²

Cable cross-section

20 AWG

Wiring

Solder contacts

Locking mechanism

Push-Pull

Mounting direction

Rear mounting

Panel shape

14.10 mm

Contact plating

0.2 µm AuCo

Contacts

Bronze (CuSn6)

Insert

Polyamide (PA 6.6)

Housing

Zamak (ZnAl4Cu1)

Flammability

UL 94 V-0

Protection class

IP 5X

Solderability

Compliant with IEC 68-2-20

Temperature range

-30 °C to +80 °C
