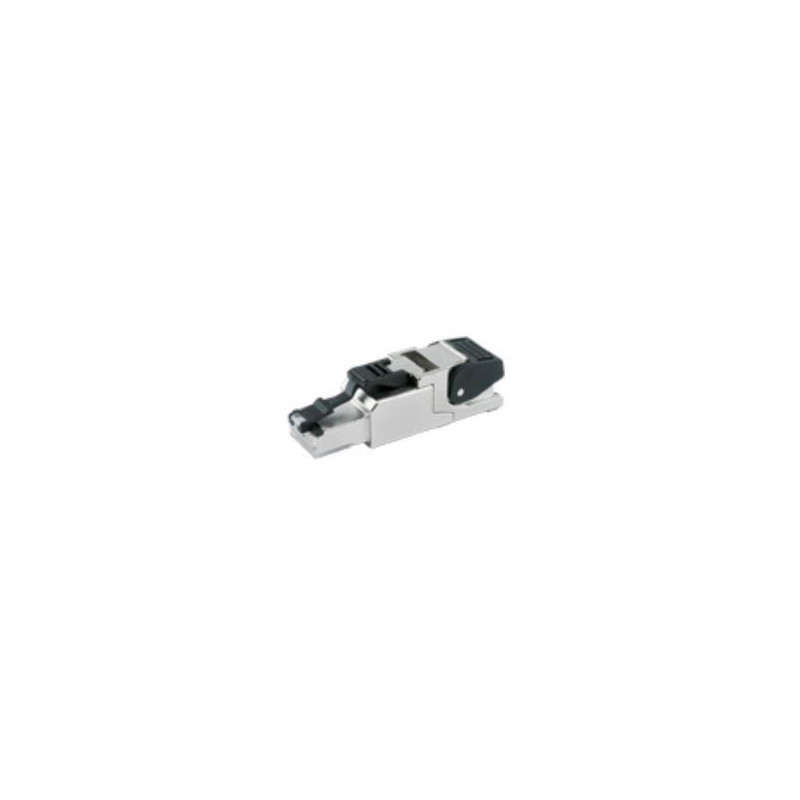

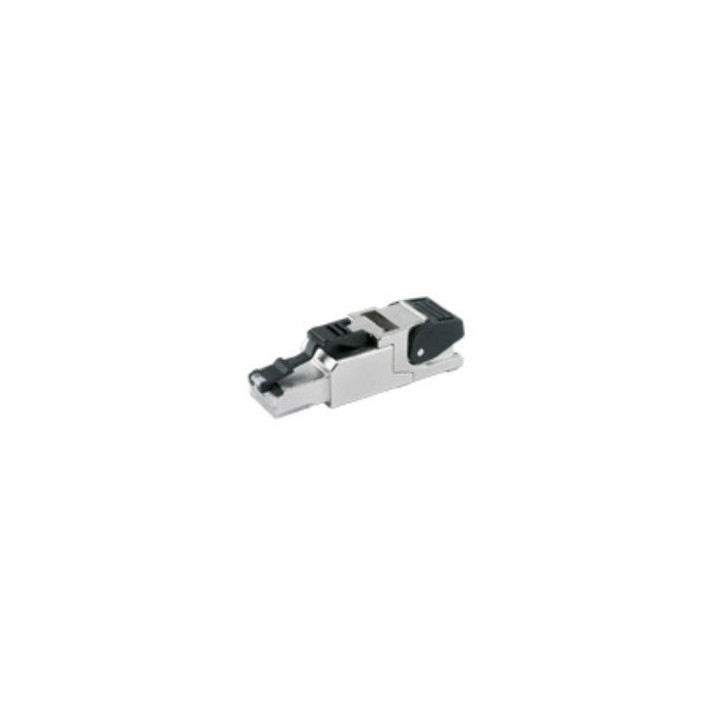

Contrik NE8CAT6A-MFP8A - 360 degrees shielded Cat.6A RJ45 connector
1030238
This 360 degrees shielded Cat.6A RJ45 connector for field assembly with full metal housing is suitable for stranded wires of AWG27/7 to 22/7 and solid wire from AWG24/1 to 22/1 and for cables with diameters from 5 to 9 mm. The colour code is according to T568A. This connector does not require any product dependent special tool, The parallel press tool HX-CAT6A is however recommended.
Visuals Price
17.72 CHF
VAT excl.
19.16 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik 360-degree shielded Cat.6A RJ45 connector
This 360° shielded Cat.6A RJ45 connector for on-site assembly with fully metal housing is suitable for twisted wires from AWG27/7 to 22/7 and solid wires from AWG24/1 to 22/1, as well as cables with diameters from 5 to 9 mm. The colour code complies with T568A standard. This connector does not require product-specific tools, however the HX-CAT6A parallel crimping tool is recommended. The connector is suitable for 10 Gigabit Ethernet and Power over Ethernet+ (IEEE 802.3at). Dimensions L x W: 52.2 mm x 13.8 mm.
This 360° shielded Cat.6A RJ45 connector for on-site assembly with fully metal housing is suitable for twisted wires from AWG27/7 to 22/7 and solid wires from AWG24/1 to 22/1, as well as cables with diameters from 5 to 9 mm. The colour code complies with T568A standard. This connector does not require product-specific tools, however the HX-CAT6A parallel crimping tool is recommended. The connector is suitable for 10 Gigabit Ethernet and Power over Ethernet+ (IEEE 802.3at). Dimensions L x W: 52.2 mm x 13.8 mm.
This 360 degrees shielded Cat.6A RJ45 connector for field assembly with full metal housing is suitable for stranded wires of AWG27/7 to 22/7 and solid wire from AWG24/1 to 22/1 and for cables with diameters from 5 to 9 mm. The colour code is according to T568A. This connector does not require any product dependent special tool, The parallel press tool HX-CAT6A is however recommended.
