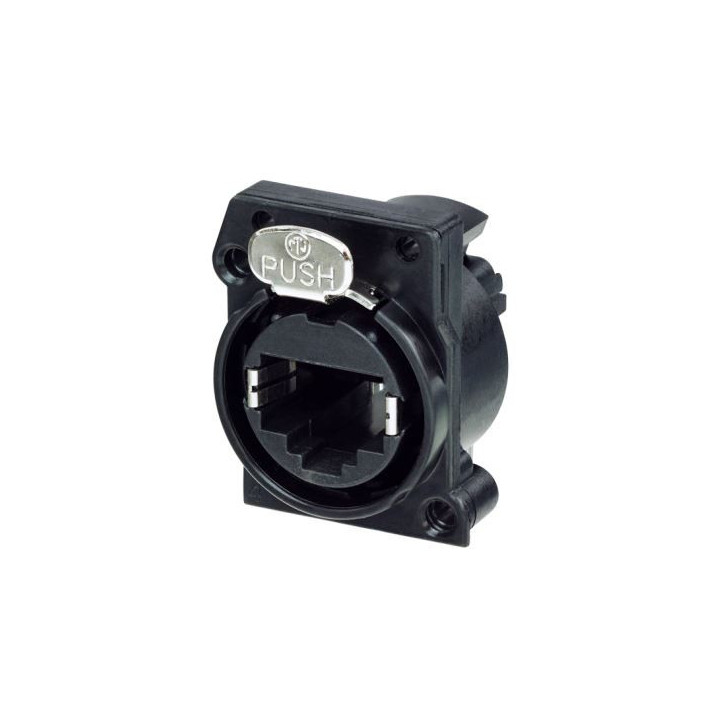

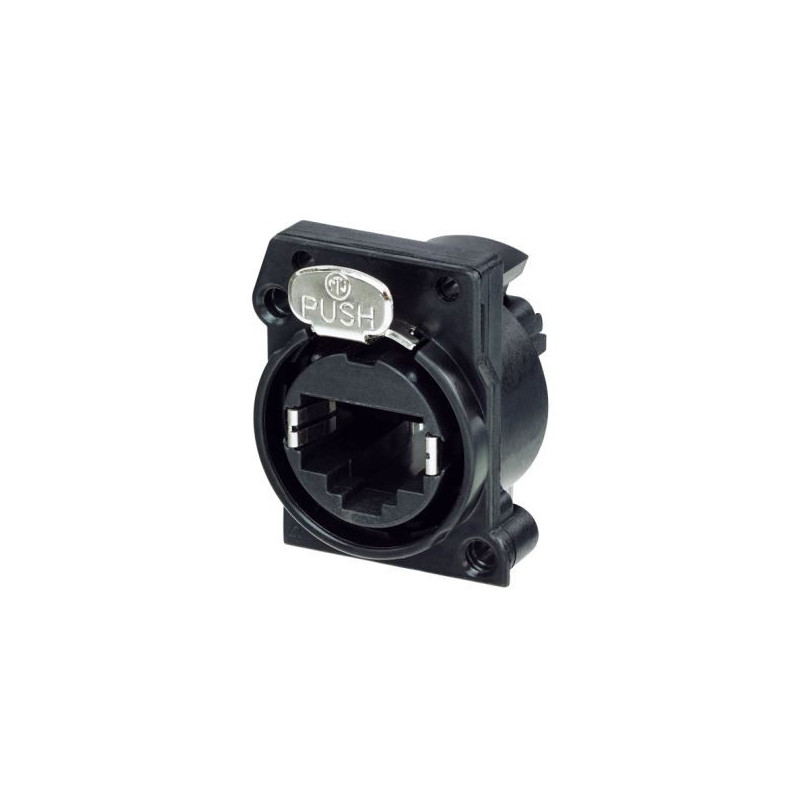

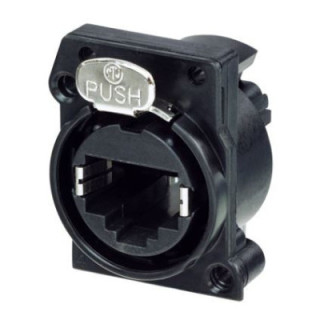

Contrik NE8FAV-C5 - Vertical PCB mount RJ45 receptacle, CAT5e
1030243
Vertical PCB mount RJ45 receptacle, CAT5e, A-Series cutout with latch lock, max. panel thickness 3 mm
Visuals Price
7.87 CHF
VAT excl.
8.51 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik vertical RJ45 socket for PCB mounting, CAT5e
Vertical RJ45 socket for PCB mounting, CAT5e, A-series cut-out with latch locking, maximum panel thickness 3 mm.
The etherCON series is a rugged, latchable RJ45 connector system optimised for professional audio, video and lighting network applications. The chassis connectors are designed to fit standard entertainment industry panels.
The all-plastic A-series offers the most compact and economical design.
Not compatible with the NE8MC6-MO CAT6 cable connector and NKE6S cables.
Features
- Compatible with the rugged etherCON NE8MC connector or any standard RJ45 plug
- Approved latch locking system
- Most compact and economical design
- Isolated from panel earth
- Vertical PCB design at 24 mm distance from front panel - fits the widely accepted industry standard dimension for XLR, 1/4" jack sockets, etc.
- PoE+ compliant according to 802.3at Type2
- CAT5e performance compliant with ISO/IEC 11801 and TIA/EIA 568-C.2
Vertical RJ45 socket for PCB mounting, CAT5e, A-series cut-out with latch locking, maximum panel thickness 3 mm.
The etherCON series is a rugged, latchable RJ45 connector system optimised for professional audio, video and lighting network applications. The chassis connectors are designed to fit standard entertainment industry panels.
The all-plastic A-series offers the most compact and economical design.
Not compatible with the NE8MC6-MO CAT6 cable connector and NKE6S cables.
Features
- Compatible with the rugged etherCON NE8MC connector or any standard RJ45 plug
- Approved latch locking system
- Most compact and economical design
- Isolated from panel earth
- Vertical PCB design at 24 mm distance from front panel - fits the widely accepted industry standard dimension for XLR, 1/4" jack sockets, etc.
- PoE+ compliant according to 802.3at Type2
- CAT5e performance compliant with ISO/IEC 11801 and TIA/EIA 568-C.2
Vertical PCB mount RJ45 receptacle, CAT5e, A-Series cutout with latch lock, max. panel thickness 3 mm
