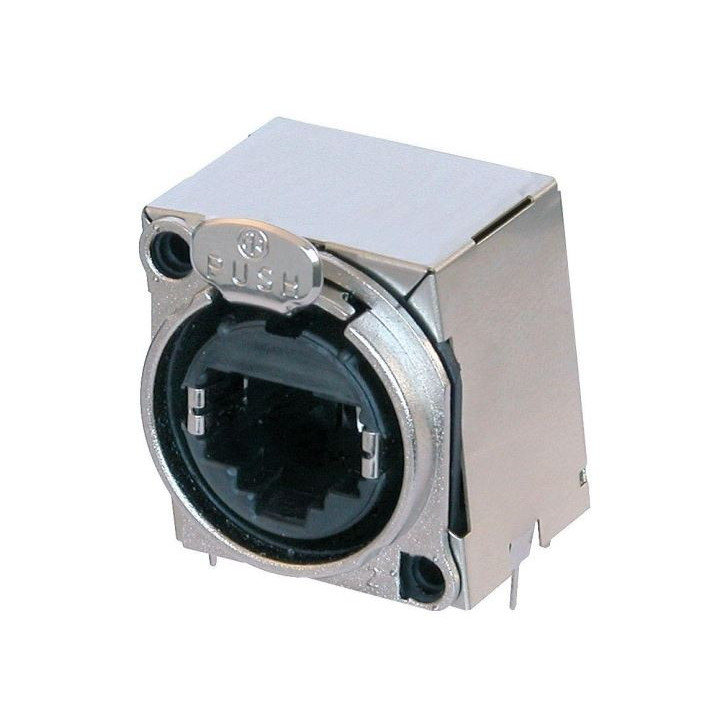

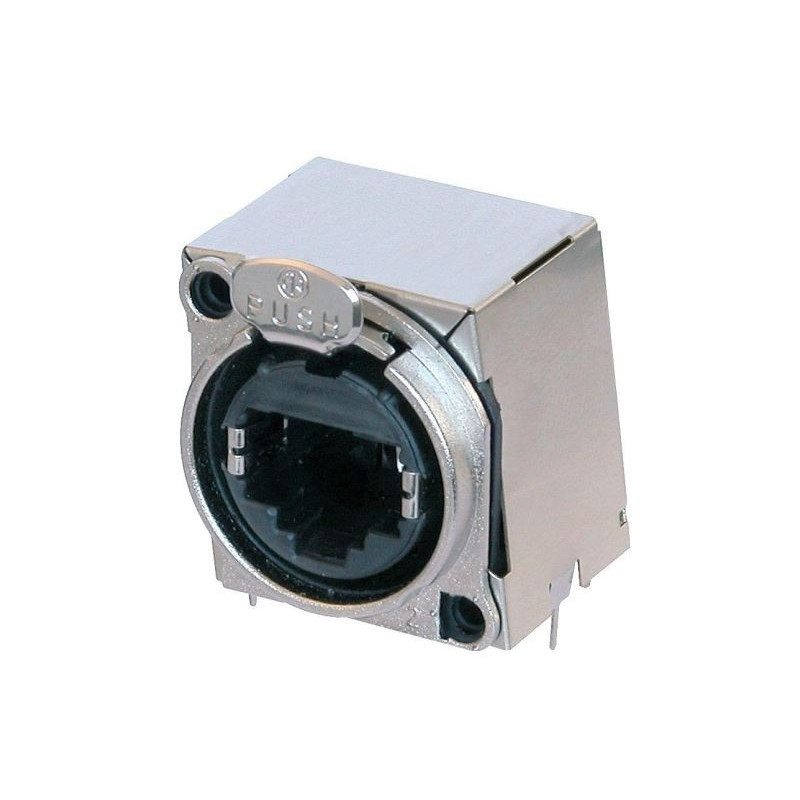

Contrik NE8FBH-S - Fully shielded, horizontal PCB mount RJ45 receptacle
1030254
Fully shielded, horizontal PCB mount RJ45 receptacle, B-series cutout with latch lock, max. panel thickness 3 mm. The "Shielded etherCON" offers a closed metal housing to avoid EMI or cross talking.
Visuals Price
9.29 CHF
VAT excl.
10.04 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik fully shielded RJ45 connector, horizontal PCB mounting
Fully shielded RJ45 connector, horizontal PCB mounting, B-series cut-out with latch locking, maximum panel thickness 3 mm. The "shielded etherCON" features a closed metal housing to prevent electromagnetic interference or crosstalk.
The etherCON series is a rugged, latchable RJ45 connector system optimised for professional audio, video and lighting network applications. The chassis connectors are designed to fit standard entertainment industry panels.
The B-series offers a compact design and a rugged metal front plate.
Not compatible with the NE8MC6-MO CAT6 cable connector and NKE6S cables.
Features
- Compatible with rugged etherCON NE8MC plugs or any standard RJ45 plug
- Approved latch locking system
- Full shielding ensured by a fully closed metal housing
- Improves EMC performance of the device even when not connected
- The connector is fixed to the PCB via the soldered connector housing
- Class D compliant according to TIA/EIA 568B and ISO/IEC 11801 standards
- Panel earth connection
Fully shielded RJ45 connector, horizontal PCB mounting, B-series cut-out with latch locking, maximum panel thickness 3 mm. The "shielded etherCON" features a closed metal housing to prevent electromagnetic interference or crosstalk.
The etherCON series is a rugged, latchable RJ45 connector system optimised for professional audio, video and lighting network applications. The chassis connectors are designed to fit standard entertainment industry panels.
The B-series offers a compact design and a rugged metal front plate.
Not compatible with the NE8MC6-MO CAT6 cable connector and NKE6S cables.
Features
- Compatible with rugged etherCON NE8MC plugs or any standard RJ45 plug
- Approved latch locking system
- Full shielding ensured by a fully closed metal housing
- Improves EMC performance of the device even when not connected
- The connector is fixed to the PCB via the soldered connector housing
- Class D compliant according to TIA/EIA 568B and ISO/IEC 11801 standards
- Panel earth connection
Fully shielded, horizontal PCB mount RJ45 receptacle, B-series cutout with latch lock, max. panel thickness 3 mm. The "Shielded etherCON" offers a closed metal housing to avoid EMI or cross talking.
