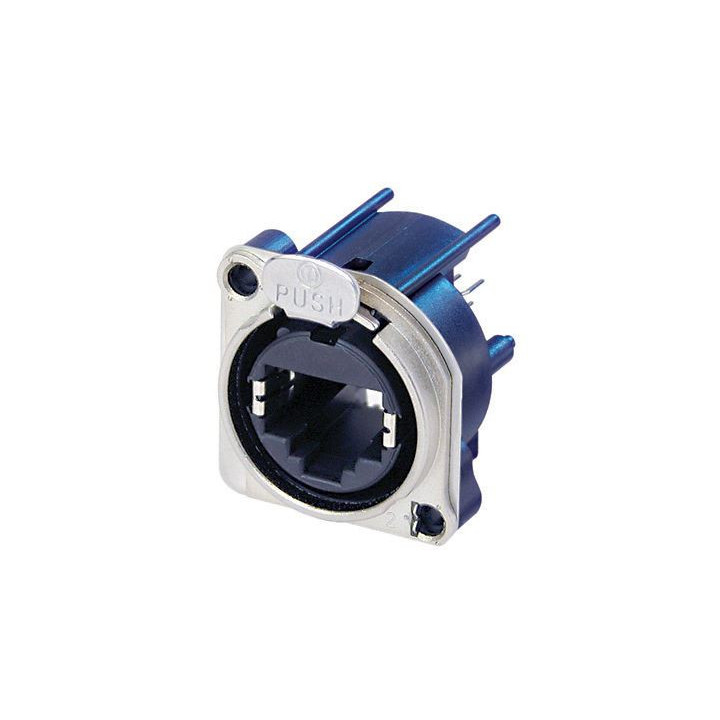

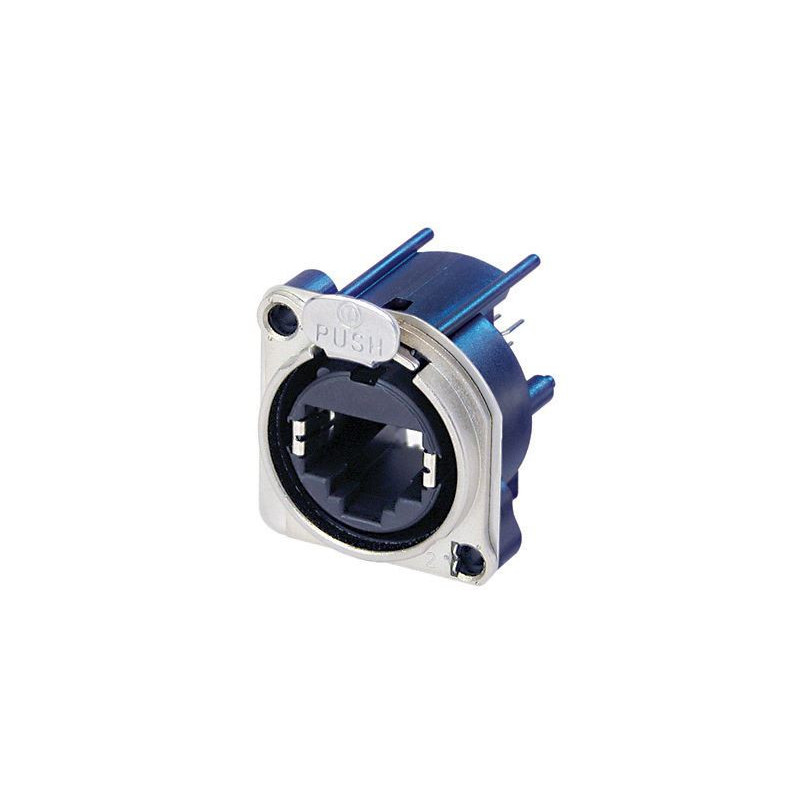

Contrik NE8FBV - Vertical PCB mount RJ45 receptacle
1030255
Vertical PCB mount RJ45 receptacle, B-Series cutout with latch lock, max. panel thickness 3 mm
Visuals Price
6.30 CHF
VAT excl.
6.81 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik Vertical RJ45 Socket for PCB Mounting
Vertical RJ45 socket for PCB mounting, B-series cut-out with latch locking, maximum panel thickness 3 mm.
The etherCON series is a rugged, latchable RJ45 connector system optimised for professional audio, video and lighting network applications. The chassis connectors are designed to fit standardised entertainment industry panels.
The B-series offers a compact design and a rugged metal front plate.
Not compatible with the NE8MC6-MO CAT6 cable connector and NKE6S cables.
Features
- Compatible with the rugged etherCON NE8MC connector or any standard RJ45 plug
- Approved latch locking system
- Class D compliant according to TIA/EIA 568B and ISO/IEC 11801 standards
- Panel earth connection
Vertical RJ45 socket for PCB mounting, B-series cut-out with latch locking, maximum panel thickness 3 mm.
The etherCON series is a rugged, latchable RJ45 connector system optimised for professional audio, video and lighting network applications. The chassis connectors are designed to fit standardised entertainment industry panels.
The B-series offers a compact design and a rugged metal front plate.
Not compatible with the NE8MC6-MO CAT6 cable connector and NKE6S cables.
Features
- Compatible with the rugged etherCON NE8MC connector or any standard RJ45 plug
- Approved latch locking system
- Class D compliant according to TIA/EIA 568B and ISO/IEC 11801 standards
- Panel earth connection
Vertical PCB mount RJ45 receptacle, B-Series cutout with latch lock, max. panel thickness 3 mm
