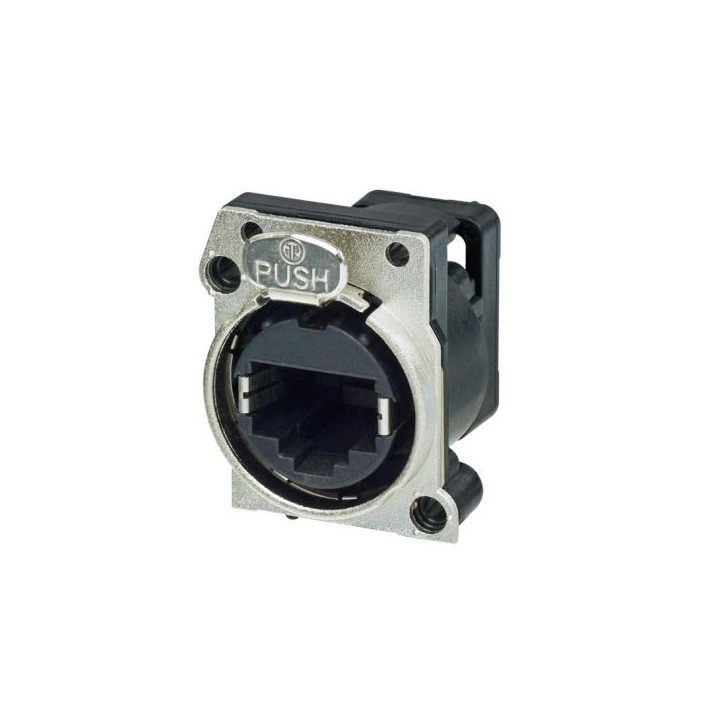

Contrik NE8FBV-C5 - Vertical PCB mount RJ45 receptacle, CAT5e
1030256
Vertical PCB mount RJ45 receptacle, CAT5e, B-Series cutout with latch lock, max. panel thickness 3 mm
Visuals Price
8.28 CHF
VAT excl.
8.95 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik RJ45 socket for vertical PCB mounting, CAT5e
RJ45 socket for vertical PCB mounting, CAT5e, B-series cutout with latch lock, maximum panel thickness 3 mm.
The etherCON series is a reinforced, lockable RJ45 connector system, optimised for professional audio, video and lighting network applications. The chassis connectors are designed to fit standard entertainment industry panels.
The B-series offers a compact design and a robust metal faceplate.
Not compatible with the CAT6 cable connector NE8MC6-MO and NKE6S cables.
Features
- Vertical PCB design at 24 mm distance from the front panel - corresponds to the widely accepted industry-standard dimension for XLRs, 1/4" jacks, etc.
- Compatible with the robust etherCON NE8MC connector or any standard RJ45 connector
- Approved latch locking system
- Panel ground connection
- PoE+ compatible according to 802.3at Type2 standard
- CAT5e performance compliant with ISO / IEC 11801 and TIA / EIA 568-C.2 standards
RJ45 socket for vertical PCB mounting, CAT5e, B-series cutout with latch lock, maximum panel thickness 3 mm.
The etherCON series is a reinforced, lockable RJ45 connector system, optimised for professional audio, video and lighting network applications. The chassis connectors are designed to fit standard entertainment industry panels.
The B-series offers a compact design and a robust metal faceplate.
Not compatible with the CAT6 cable connector NE8MC6-MO and NKE6S cables.
Features
- Vertical PCB design at 24 mm distance from the front panel - corresponds to the widely accepted industry-standard dimension for XLRs, 1/4" jacks, etc.
- Compatible with the robust etherCON NE8MC connector or any standard RJ45 connector
- Approved latch locking system
- Panel ground connection
- PoE+ compatible according to 802.3at Type2 standard
- CAT5e performance compliant with ISO / IEC 11801 and TIA / EIA 568-C.2 standards
Vertical PCB mount RJ45 receptacle, CAT5e, B-Series cutout with latch lock, max. panel thickness 3 mm
